2MP 4x Anti-Corrosion PTZ Dome Marine CCTV Camera
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 week
Brand:
KAIDUN
Product Description
2MP Anti-Corrosion PTZ Dome Marine CCTV Camera
Key Features
- Stainless Steel 316L Enclosure
- IP68 Ingress Protection
- High quality imaging with 4MP resolution
- 4x optical zoom allows for closerviewing of subjects in expansive areas
- Up to 20m IR range ensures safety at night
- DC12V/PoE Power optional
- The MC500 is a PTZ Dome Marine CCTV Camera Certified according to CCS type approval and EN62676,EN60945
- The spherical rotational structure allows for multi-angle observation,with a horizontal observation angle range of 0° to 360° and a vertical range of -90°to 0°.
Service
You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
Application Scenarios
Container Vessel, Bulk Vessel, Oil Tanker, Cruise Vessel, Yacht, Oil/Gas Drilling Platform, Oil Depots, Sea Port
Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.
Parameters
| Camera Module | |
| Image Sensor | 1/2.8"Progressive Scan CMOS |
| Max.Resolution | 2560*1440 |
| Min.Illumination | Color:0.005 Lux@(F1.5,AGC ON),B/W:0.001 Lux@(F1.5,AGC ON),0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30,000s |
| Day &Night | IR cut filter |
| Zoom | 4x optical,16x digital |
| Slow Shutter | Yes |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| FOV | Horizontal FOV 96.7°to 31.6°,vertical FOV 51.1°to 17.7°,diagonal FOV 115.1° to 36.3° |
| Focus | Auto,semi-auto,manual |
| Aperture | Max.F1.5 |
| Zoom Speed | Approx.2s |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | IR Distance:up to 20m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| PTZ | |
| Movement Range (Pan) | 0°to 355° |
| Movement Range(Tilt) | 0°to 90° |
| Pan Speed | Pan speed:configurable from 0.1°to 100°/s;preset speed:100°/s |
| Tilt Speed | Tilt speed:configurable from 0.1°to 100°/s,preset speed 100°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Park Action | Preset |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset,dome reboot,dome adjust |
| Power -Off Memory | Yes |
| Video | |
| Main Stream | 50 Hz:25 fps(2560x1440,1920×1080,1280×960,1280×720); 60 Hz:30 fps (2560x1440,1920×1080,1280×960,1280×720) |
| Sub-Stream | 50 Hz:25 fps(704×576,640×480,352×288); 60 Hz:30 fps(704×480,640×480,352×240) |
| Third Stream | 50 Hz:25 fps (704×576,640×480,352×288); 60 Hz:30 fps(704×480,640×480,352×240) |
| Video Compression | Main stream:H.265+/H.265/H.264+/H.264 Sub-stream:H.265/H.264/MJPEG Third stream:H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main profile |
| Scalable Video Coding(SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Network | |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP, RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,Websocket,Websockets |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface(Version 18.12,Profile S,Profile G,Profile T),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users;3 user levels:administrator,operator,and user |
| Security | Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS,EAP-LEAP,EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,control timeout settings,security audit log,TLS1.2,host authentication (MAC address) |
| Network Storage | NAS(NFS,SMB/CIFS),auto network replenishment (ANR) |
| Client | iVMS-4200,HikCentral Pro,Hik-Connect |
| Web Browser | IE 10-11,Chrome 57+,Firefox 52+,Safari 11+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation,brightness,contrast,sharpness,gain,and white balance adjustable byclient software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | >52 dB |
| Defog | Digital defog |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks,mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| Interface | |
| Ethernet Interface | 1 RJ4510M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot,support microSD/SDHC/SDXC card,up to 256 GB |
| Built-in Microphone | 1 built-in microphone,picking up sounds in the radius up to 5 meters |
| Audio | 1 input (line in),max.input amplitude:2-2.4 vpp,input impedance:1 KQ±10%; 1 output (line out),line level,output impedance:600 Ω |
| Reset | Yes |
| Power Output | 12 VDC,max.60 mA |
| General | |
| Power | DC 12 V;PoE (802.3af),≤20W(the maximum power supply diatance of POE is 80m) |
| Dimension | Ø182mm×135mm |
| Weight | 4kg |
| Operating Condition | -40°C to 60℃.Humidity 100% or less(non-condensing) |
| DORI | |
| Detect Distance | 180m |
| Observe Distance | 71.4m |
| Recognize Distance | 36m |
| Identify Distance | 18m |

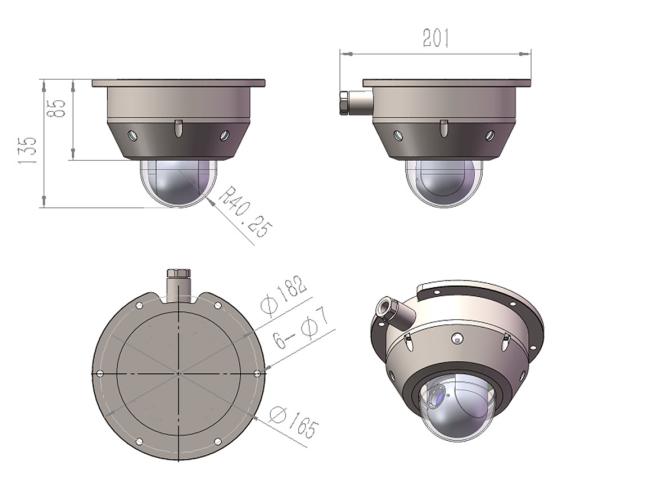

Dimension
Accessories
SS316L Exe Type Juction Box Explosion Proof & Anti-corrosion Flexible Hose
