CCS Type Approval Anti-Corrosion CCTV Fixed Bullet Marine CCTV Camera
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 week
Brand:
KAIDUN
Product Description
CCS Type Approval Anti-Corrosion CCTV Fixed Bullet Marine CCTV Camera
High-performance marine-grade surveillance camera with CCS Type Approval, designed for harsh maritime environments.
Key Features
- Stainless Steel 316L Enclosure for superior corrosion resistance
- IP68 ingress protection against water and dust
- IR illumination with 15m range for night vision
- 8MP resolution with 2.8mm/4mm fixed lens options
- Dual power options: DC12V or PoE (Power over Ethernet)
- Compliant with BS EN62676-1-1-2014 and CE-EN60945 standards
Service & Warranty
7-day replacement policy for quality issues with a 1-year quality guarantee period.
Warranty exclusions:
- Missing guarantee card or proof of purchase
- Improper service conditions (power, temperature, humidity, lighting)
- Accident, negligence, incorrect operation or network attack
- Unauthorized installation, repair, modification or dismantling
- Expired guarantee period
For service disputes, please contact Kaidun customer service center. Warranty valid only with service provider stamp.
Application Scenarios
Ideal for various marine and industrial environments including:
- Container vessels, bulk carriers, oil tankers
- Cruise ships, yachts, oil/gas drilling platforms
Technical Parameters
| Camera | |
|---|---|
| Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Color: 0.005 lux (F1.6, AGC ON), 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1~1/100000 s |
| Adjustment Angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° |
| S/N Ratio | >56dB |
| WDR | 120dB |
| Lens | |
| Lens Type | 2.8mm @F1.6 | 4.0mm @1.6 |
| Field of View (H) | 98.3° | 91.2° |
| Field of View (V) | 53.3° | 47.9° |
| DORI Distance | 2.8mm: Detect 84m, Observe 33.6m, Recognize 16.8m, Identify 8.4m 4.0mm: Detect 120m, Observe 48m, Recognize 24m, Identify 12m |
| Illuminator | |
| IR Range | 15m |
| Wavelength | 850nm |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af), ≤8W |
| Dimensions | 141*104*124mm |
| Weight | ≤2.4kg |
| Material | Stainless Steel 316L |
| Operating Temp | -40°C~60°C, Humidity ≤100% RH (non-condensing) |
| Ingress Protection | IP68 |
| Surge Protection | 2KV |

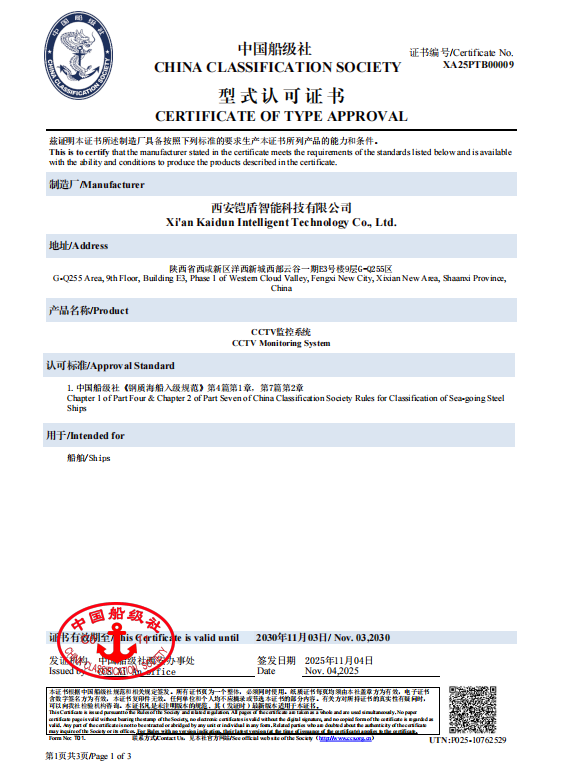

Certificate
Dimensions
Accessories
Anti-shake SS316L Bracket
SS316L Exe Type Junction Box
Explosion Proof & Anti-corrosion Flexible Hose
