4MP 4X CCS Type Approval Anti-Corrosion Bullet IR IP Marine CCTV Camera
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 week
Brand:
KAIDUN
Product Description
4MP 4X CCS Type Approval Anti-Corrosion Bullet IR IP Marine CCTV Camera
Key Features
- Stainless steel 316L Enclosure
- Ingress protection lP68
- Resolution 4MP
- 2.8-12mm Vari-focal lens
- 4X Optical Zoom
- IR Range up to 100meters
- DC12V/PoE Optional
- Verification to :BS EN 62676-1-1-2014 – Video surveillance systems for use in security applications
- IR Range up to 100meters(300meters is optional)
Service
You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
Application Scenarios
Container Vessel, Bulk Vessel, Oil Tanker, Cruise Vessel, Yacht, Oil/Gas Drilling Platform, Oil Depots, Sea Port
Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.
Parameters
| Main parameters | |
| Imaging sensor | 1/1.8” Progressive scan CMOS |
| Minimal illumination | Color: 0.005 Lux @ (F1.6, AGC ON); Black and white: 0.0005 Lux @ (F1.6, AGC ON) |
| Resolution and Frame Rate | Main code stream 50Hz: 25 fps (2560*1440,1920*1080,1280*960,1280*720); |
| 60Hz: 30fps(2560*1440,1920*1080,1280*960,1280*720) | |
| Subcode stream 50Hz: 25 fps (704*576,640*480,352*288); | |
| 60Hz:30fps(704*480,640*480,352*240) | |
| Third coded stream 50Hz: 25 fps (2560*1440,1920*1080,1280*960,1280*720,704*576,640*480,352*288); | |
| 60Hz:30fps(2560*1440,1920*1080,1280*960,1280*720,704*576,640*480,352*288) | |
| Video compression | H.264/H.265 |
| Audio compression | G.722.1,G.711-A law,G.711-U law,MP2L2,G.726,AAC,PCM |
| White balance | Manual white balance, indoor, outdoor, fluorescent lamp, sodium lamp, automatic white balance, automatic tracking white balance, lock white balance |
| Gain control | Automatic / manual |
| Noise-signal ratio | Greater than the 52 db |
| 3D digital noise reduction | Support |
| Zone focusing | Support |
| Electronic shutter | 1/1~1/30,000S |
| Day and night mode | Automatic / color / white / alarm trigger / timing |
| The number doubled | 12X |
| Focus mode | Automatic / semi-automatic / manual work |
| Regional exposure | Support |
| Day and night conversion mode | Automatic ICR color to black |
| Compresses the output code rate | 32 Kbps~16 Mbps |
| Heart beat function | Support |
| Exposure mode | Automatic exposure / aperture priority / shutter priority / manual exposure |
| DORI | |
| DORI | 2.8 to 12 mm:Wide: D: 64.7 m, O: 25.7 m, R: 12.9 m, I: 6.5 m Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m |
| Camera lens | |
| Focal distance | 2.8 mm~12 mm, 4x optical zoom |
| Change the speed | About 1.7 Seconds (optical, wide-wide) |
| Horizontal view angle | 107.4~39.8 Degrees (wide Angle-far) |
| F-number | F1.6~F2.7 |
| Function | |
| The Smart image enhancement | 120 DB ultra-wide dynamic, strong light inhibition, and backlight compensation |
| Smart encoding | Low bit rate, and ROI |
| Equipment anomaly detection | Illegal access |
| Power memory | Support |
| Smart sense | Regional intrusion detection, cross-border detection, entering the area detection, leaving the area detection, wandering detection, personnel gathering detection, fast moving detection, parking detection, items left detection, item take detection, audio abnormal detection, mobile detection, video occlusion detection |
| Three yards flow | Support |
| Network | |
| Networking protocol | IPv4/IPv6,HTTP,HTTPS,802.1X,Qos,FTP,SMTP,UPnP ,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,DHCP,Bonjour |
| API | Open API supporting software integration, support standard protocol (ONVIF, ISAPI), support Hikon SDK and third-party management platform access, support E home protocol, and support GB28181 |
| Browser | IE 8~11, Chrome 31.0+, Firefox 30.0+, Safari 11+ |
| Preview the number of videos simultaneously | Up to 20CH |
| User permission | Up to 32 users, with 3 levels: administrator, operator, and ordinary users |
| Safe mode | Authorized user name and password, and MAC address binding; HTTPS encryption; IEEE 802.1X network access control |
| General | |
| Power | DC12V/POE+/AC100V-240V etc optional,≤10W (The maximum power supply distance of POE+ is 80m) |
| Dimensions(L*W*H) | 280*185*343mm |
| Net Weight | ≤8.1kg |
| Material | Stainless Steel 316L |
| Working Environment | -40℃~60℃,Humidity:≤100%RH(non-condensing) |
| Strorage Environment | -40℃~60℃,Humidity:s100%RH(non-condensing) |
| Surge Protection | 2KV |
| Ingress Protection | IP68 |
| Infrared Distance | 50-100m |
| Inlet Hole Specification | 1 Entry hole G3/4 |
| Installation Method | Wall or column platform installation |
Dimension

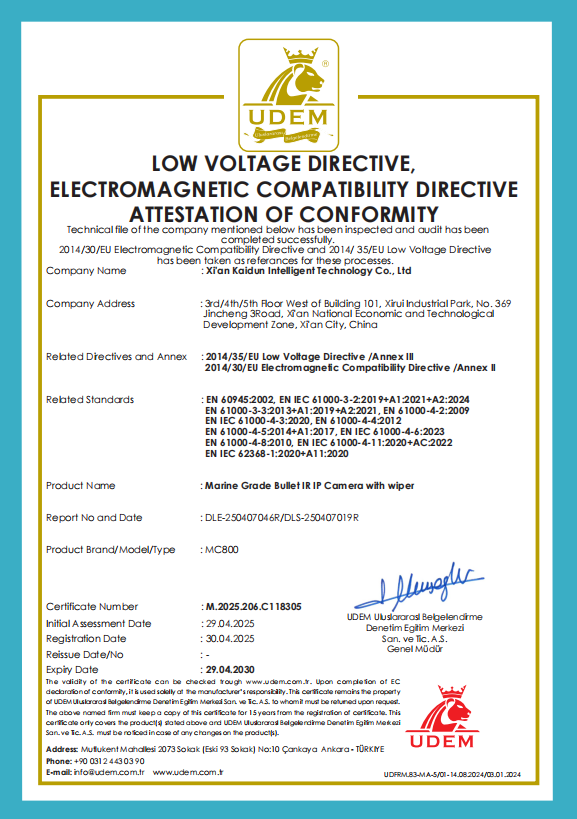

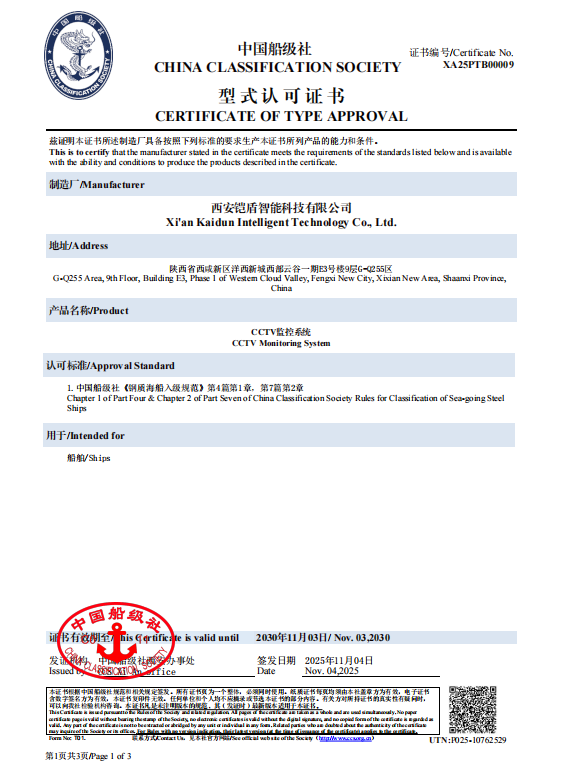

Certificate
Accessories
SS316L Exe Type Junction Box Explosion Proof & Anti-corrosion Flexible Hose
