Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Price:
$260,000/sets 1-1 sets
MOQ:
1
Delivery Time:
30
Brand:
KeDa
Product Description

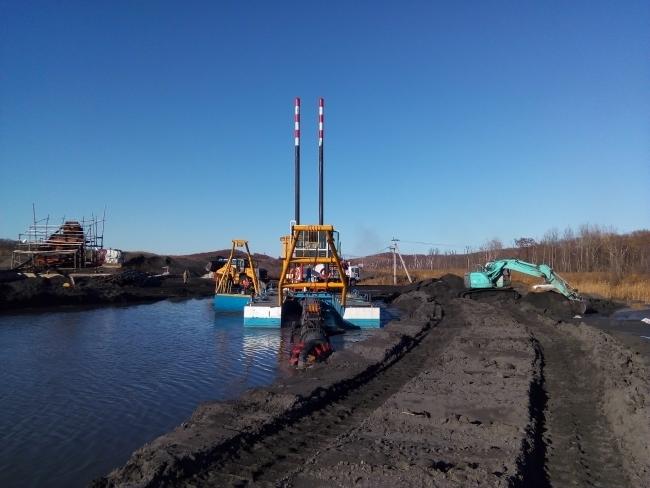

600kw Reamer Power 18inch Hydraulic Cutter Suction Dredger
High-performance hydraulic cutter suction dredger with 800m³/h capacity and 2000m discharge distance, designed for sea port dredging operations.
Product Overview
Qingzhou Keda Environment Protection Machinery Co., Ltd specializes in manufacturing durable, dismountable hydraulic cutter suction dredgers with over ten years of industry experience.
Working Principle
The dredger features a rotating cutter head that loosens material, which is then pumped through a pipeline ashore or into barges. The high-pressure sand pump efficiently transports loosened materials through the suction pipe while the cutter swings around the spud-pole during operation.
Applications
Ideal for dredging operations in ports, waterways, rivers, lakes, ponds, lagoons, and sea areas. Also suitable for hydraulic fill operations.
Technical Specifications
| Model | Draft | Water Flow | Dredging Depth | Lift | Discharge Distance | Weight |
|---|---|---|---|---|---|---|
| CSD150 | 90cm | 500m³/h | 6m | 36m | 800m | 40000kg |
| CSD200 | 100cm | 900m³/h | 8m | 49m | 1000m | 50000kg |
| CSD250 | 110cm | 1500m³/h | 12m | 56m | 1200m | 65000kg |
| CSD300 | 120cm | 2500m³/h | 15m | 57m | 1500m | 95000kg |
| CSD350 | 120cm | 4000m³/h | 15m | 58m | 2000m | 150000kg |
| CSD450 | 150cm | 5000m³/h | 15m | 55m | 2000m | 190000kg |
| CSD500 | 180cm | 6000m³/h | 16m | 62m | 2500m | 220000kg |
| CSD600 | 180cm | 7000m³/h | 18m | 68m | 3000m | 250000kg |
Note: Parameters can be customized according to customer requirements.
Key Components
- Main engine
- Reamer and reamer frame
- Left and right traverse pulley block
- Gantry
- Suction pipe
- Operation room
- Emergency generator set
- Dredging pump
- Gearbox and diesel engine
- Hydraulic system
- Water seal pump
- Positioning pile and cylinders
Customization Options
Host Brand Selection
- Weichai
- Yuchai
- Cummins
- Caterpillar
Cutter Head Options
- Standard cutter head
- Bucket head
- Auger head
Mud Pump Selection
Customized based on required flow rate and discharge distance.
Operational Features
Hydraulic System: Fully hydraulic control system for easy operation by a single operator.
Operator Cabin: Equipped with air conditioning and lighting for comfortable working conditions.
Modular Design: Dismountable floating body structure for easy transportation and assembly.
Our Services
Pre-Sales Service
- Consultation and needs assessment
- Technical solution proposal
- Customized design recommendations
After-Sales Service
- 3D design drawings
- Quality production
- Pre-shipment testing
- Installation and operator training
Company Profile
Qingzhou Keda Environment Protection Machinery Co., Ltd is located in Qingzhou City, Shandong Province, China with 22,000m² facility and over 100 staff. Our location provides convenient access to Qingdao Sea Port and major airports.
Our Advantages
- 10+ years dredger manufacturing experience
- Strong technical service team for customized solutions
- In-house design team with 21 patents
- 22,000m² production facility
- Three specialized production lines
