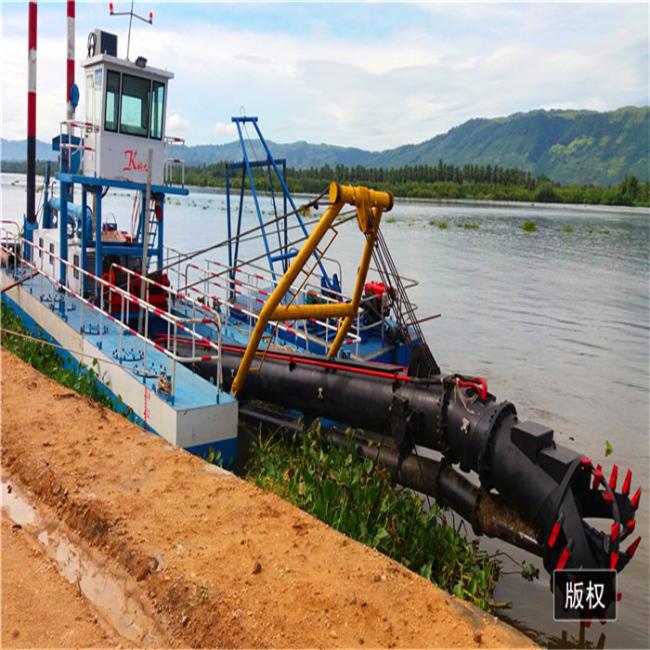

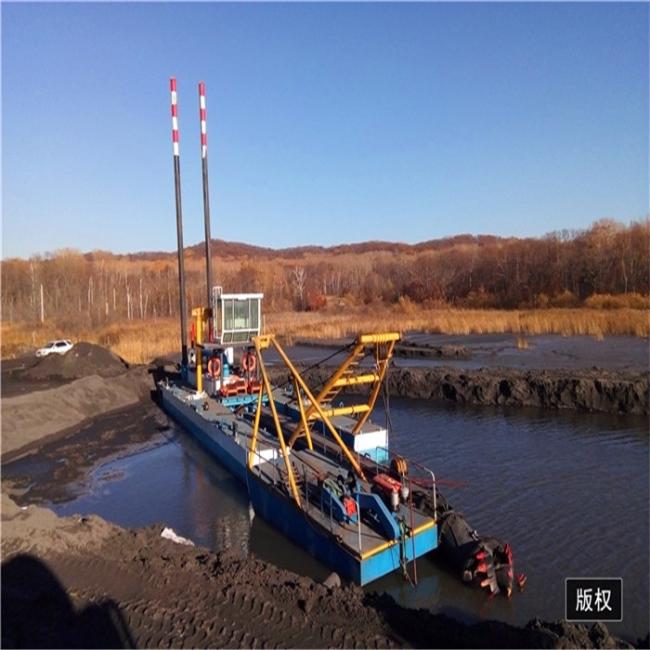

Diesel Cutter Suction Dredger Mud Dredger 6inch 500m3/h for River Sand Cleaning
Price:
$75,000/sets >=1 sets
MOQ:
1
Delivery Time:
30
Brand:
KeDa
Product Description
Power Type Diesel KEDA 6inch 500m3/h Sand Vessel Cutter Suction Dredger Mud Dredger for River Sediment and Sand Cleaning
Product Overview
This River Sand Vessel Cutter Suction Dredger is designed for efficient sediment and sand cleaning operations in rivers and waterways.
Key Features
- Reliable hydraulic system with self-protection mechanism for high efficiency and low operational costs
- Simple and rapid assembly/dismantling process for easy deployment
- Customizable models available from 4" to 20" with maximum dredging depth of 20m
- ISO9001 certified with additional survey certifications
- Utilizes submerged arc welding technology for superior stability and aesthetic design
- Constructed with special marine steel plates for enhanced durability
- Integrated pump and gear box design reduces maintenance requirements
Technical Specifications
| Model | KDCSD100 | KDCSD150 | KDCSD200 | KDCSD250 | KDCSD300 | KDCSD350 | KDCSD450 |
|---|---|---|---|---|---|---|---|
| Water Flow (m³/hour) | 280 | 450 | 800 | 1200 | 1800 | 2500 | 3500 |
| Length (m) | 19 | 22 | 26 | 33 | 35 | 39 | 41 |
| Width (m) | 3.5 | 4 | 5.3 | 6.6 | 6.6 | 7 | 8 |
| Height (m) | 1 | 1.25 | 1.5 | 1.8 | 1.8 | 2 | 2.5 |
| Max. Dredging Depth (m) | 8 | 10 | 12 | 15 | 15 | 17 | 17 |
| Suction Diameter (mm) | 150 | 200 | 250 | 300 | 400 | 450 | 650 |
| Discharge Diameter (mm) | 100 | 150 | 200 | 250 | 300 | 350 | 450 |
| Total Power (kw) | 132 | 220 | 336 | 460 | 670 | 895 | 1166 |
| Cutter Head Diameter (mm) | 650 | 850 | 950 | 1200 | 1200 | 1500 | 1700 |
| Discharge Distance (m) | 400 | 500 | 800 | 1000 | 1200 | 1500 | 1800 |
Product Gallery
Detailed Components
Packaging & Shipping
Certifications
Our Services
- Professional dredging project consulting by experienced engineers
- Overseas engineer dispatch for equipment installation and testing
- Comprehensive training for local workforce
- Technical support during equipment operation
- Complete production line equipment and spare parts supply at competitive prices
Company Profile
We are a modern large-scale mineral processing equipment manufacturer specializing in gold mining, sand pumping, and desilting with extensive research and development experience.
All products are ISO9001 certified and have been exported to over fifteen countries including Fiji, Ghana, Mali, Colombia, Nigeria, Sierra Leone, Papua New Guinea, Bangladesh, Sultan, Korea, USA, Russia, and India.
Frequently Asked Questions
Is our company a direct or indirect producer?
Our company is a direct producer.
What's the main product of our company?
Our main product is Cutter Suction Dredger.
Are our products certified or patented?
Yes, we only provide certified products.
Can we offer good after sales service?
Yes, all products come with a one-year warranty and we provide fast, affordable spare parts support indefinitely.
