100 Tons/H Bucket Chain Gold Dredging Boat With 13/14/15.5m Ponton
Price:
$20,000/sets >=1 sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
Keda
Product Description
100 Tons/h Ponton Bucket Gold Dredging Boat/Diamond Mining Barge Dredger
150tph Bucket gold dredge /diamond dredging boat barge for sale
Brief Introduction
Bucket gold mining dredge boat is un-self-propulsion, chain type sand or heavy metal mining ship. The hull is horizontal skeleton type fission box structure, and it is equipped with anchor equipment and bucket chain drive equipment, screening equipment, transportation equipment, all the equipments are installed on the hull with winch lift bridge.
Working Process
When dredging, put the lower end of the bucket bridge into some depth of the water, making the mud(sand) bucket touch the soil(sand). Driven by the guide pulley on the upper end of the bucket bridge, the bucket chain operates continuously. It can dredge the mud(sand) by the mud bucket on the bucket chain. The dredged mud and sand are transported to the top of the bucket tower. After changed direction by guide pulley, the mud and sand in the bucket are put into mud well from the mud bucket under gravity of themselves. The mud and sand are discharged into different mining equipemnt for the further choosing.
Features
- Mining Dredger for sand is applied to river bait-casting, sand dredging
- Dredging depth is 4-16m
- Easy to control
- High efficient with low cost
- Design according to your situation and requests
Basic Parameters
| Model | KD-1 | KD-2 | KD-3 | KD-4 | KD-5 | KD-6 | KD-7 |
|---|---|---|---|---|---|---|---|
| Pontoon Length (m) A | 13m | 14m | 15m | 16m | 17m | 22m | 24m |
| Pontoon Length (m) B | 14m | 14.5 | 15.5m | 17m | 18m | 20m | 22m |
| Pontoon Length (m) C | 15.5m | 16m | 16.5m | 18m | 20m | 20m | 22m |
| Width (m) A | 1.5m | 1.5m | 1.5m | 1.5m | 1.7m | 1.8m | 1.8m |
| Width (m) B | 1.5m | 1.5m | 1.5m | 1.5m | 1.7m | 1.8m | 1.8m |
| Width (m) C | 1.7m | 1.7m | 1.7m | 1.7m | 1.8m | 1.8m | 1.8m |
| Conveying arm length (sand/small stone/middle stone) A | 12m/6m | 13m/6m | 14m/8m | 15m/10m | 18m/12m | 12m/6m | 12m/6m |
| Conveying arm length (sand/small stone/middle stone) B | 13m/9/8 | 13.5m/9.5m/6m | 15m/11m/6m | 16m/12.5m/8m | 18m/14m/12m | 14m/10m/8m | 14m/10m/6m |
| Conveying arm length (sand/small stone/middle stone) C | 15m/12m/8m/6m | 15.5m/12.5m/9m/6m | 15.5m/12m/8m/6m | 17m/13m/10m/10m | 20m/17m/14m/15m | 15m/10m/6m | 16m/12m/9m/5m |
| Bucket (Pic) | 42-46 | 48-52 | 52-58 | 60-66 | 66-78 | 60-70 | 70-76 |
| Dredging depth (m) | 4m-4.8m | 4m-6m | 4m-7.5m | 4m-10m | 4m-12m | 8m-14m | 8m-16m |
| Output m3/h | 60-100m3 (adjustable) | ||||||
| Power | 1105-1100 | 1110-1100 | 1115-1100 | 1110-1100 | 1115-1100 | 1100-4100 | |

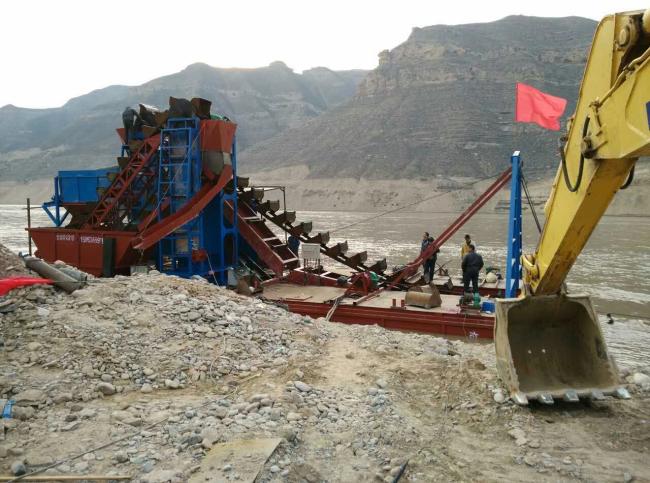

Product Show
Company Information

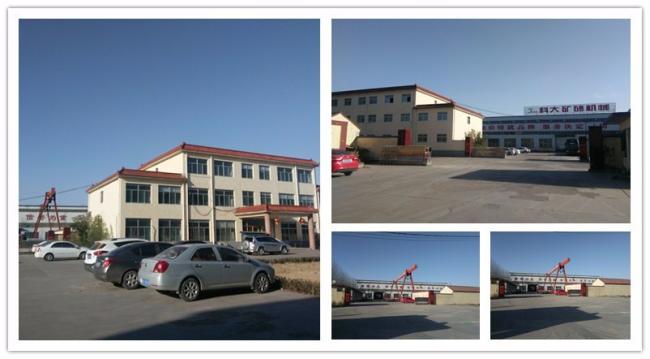

Qingzhou Keda ore machinery Co.,LTD. is a modern and formal ore machine manufacturer,which is professional at producing all kinds of mining equipment with ISO9001:2008. The gold wash plant has obtained PATENT both in utility and design. We are the ONLY manufacturer has this patent in China.
The company is established in 2002 primitively, covers an area of more about 20,000 square meters and equipped with modern type workshops and office. Nice product comes from excellent teamwork. Currently there are 120 stafves, including 2 senior engineers, 5 engineers, 15 technicians and 60 technical workers. Our company are more normative in management, our engineers are more professional in design and manufacture, our service are more comprehensive and thoughtful, and our price are more competitive with the best quality.
Main Products:
The company is established in 2002 primitively, covers an area of more about 20,000 square meters and equipped with modern type workshops and office. Nice product comes from excellent teamwork. Currently there are 120 stafves, including 2 senior engineers, 5 engineers, 15 technicians and 60 technical workers. Our company are more normative in management, our engineers are more professional in design and manufacture, our service are more comprehensive and thoughtful, and our price are more competitive with the best quality.
Main Products:
- Gold wash plants series: the working capacity ranges from 5tons/h to 500tons/h, including wet gold wash plant used in place with water and dry gold washer used in place without water like in the desert.
- Dredgers series: dredgers for mining, sand production, reclamation construction, desilting, land reclamation and so on, including cutter suction dredger, jet suction dredger, bucket type dredger, aquatic weed harvester dredger, all kinds of gold dredgers.
- Crusher series: including hammer crusher, impact crusher, Jaw crusher
Packaging & Shipping
Way of Packing:
- FLC&LCL Export standard container 20/40 GP
- Steel support & iron sheet sea-worthy package
- Load: export software scientific loading work
- By sea freight
- MSK/MSC/APL/EMC/WANHAI/KLINE
- Air delivery services
- We will remind you before boat arrives
Customer Visiting
There are so many customers from all over the world has visited our company and left with their ideal products. You are strongly invited to be here too, so you can learn more about our company and the product you need by your own sight.
FAQ
In order to provide you with efficient & suitable quotation and assistance for you, could you kindly tell me the following information:
- Output capacity (m3/h)
- Max. dredging depth (m)
- Discharge distance (m)
