Submersible Sand Dredge Pump Boat 25kw Cutter Power 50-70m3/h Working Capacity
Price:
$27,000/sets >=1 sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
Keda
Product Description
Submersible Sand Dredge Pump Boat with 25kw Cutter Power and Customized Design
High-quality submersible sand dredge pump boat designed for efficient excavation and transportation of cohesive sediment. Engineered for tropical climate conditions with easy transportation and reassembly capabilities.
Key Features
- Economic operation with high sand dredging efficiency (30-50% density for fine sand)
- Portable design for easy transportation by truck
- Simple operation with reliable quality construction (5mm steel plate thickness or custom)
- Standard worldwide gearboxes and premium electric components
- Spacious, low-noise operating cabin with single-person operation
- Ergonomic dashboard with intuitive controls and instruments
- Dredging depth capability up to 30m from water surface
Technical Specifications
| Model | KDQSB200-5 |
|---|---|
| Dredger Body Dimensions (L*W*H) | 12m * 4.7m * 1.2m |
| Pontoon Configuration | 2 side pontoons (11*1.25*1.2m), 1 main pontoon (8*2.25*1.2m) |
| Material | CCSA |
| Total Weight | 20T |
| Pump Model | ZJQ300-20-37 |
| Rotation Speed | 980 r/m |
| Standard Dredging Depth | 5m |
| Standard Discharge Distance | 50m |
| Maximum Dredging Depth (optional) | 8m |
| Maximum Discharge Distance | 70m |
| Maximum Dredging Capacity | 50-70m³/h |
| Minimum Clean Water Flow | 300m³/h |
| Suction Pipe Diameter | 200mm |
| Discharge Pipe Diameter | 200mm |

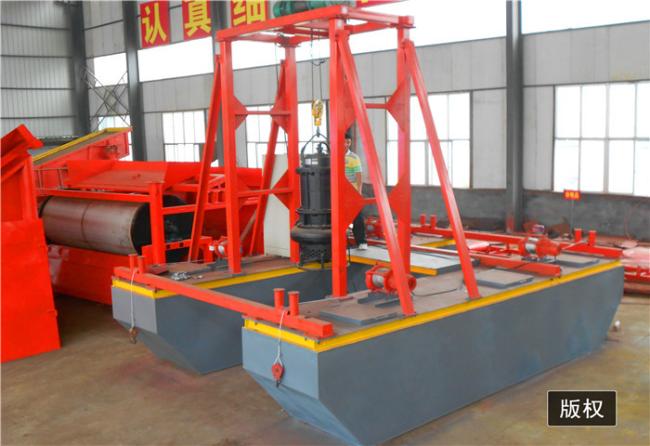

Product Gallery

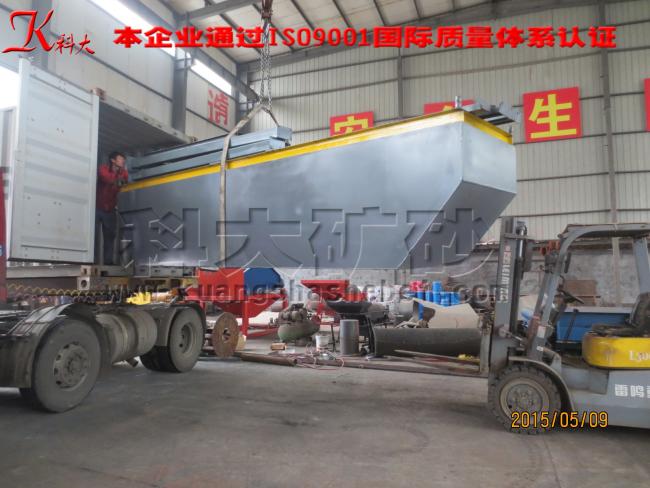

Shipping & Installation
Customer References
Service & Support
- English manuals included with all goods and spare parts
- 12-month warranty for diesel engine/generator, motor water pump (6 months for impeller), and storage battery (rust excluded)
- Optional installation support: We provide one qualified engineer and translator for installation and operator training (buyer to arrange 5-6 assistants)
Manufacturer Profile
Qingzhou Keda Mining Machine Co., Ltd. specializes in mineral processing equipment including dredgers, sand washing systems, gold panning equipment, magnetic separators, and crushers. We offer customized solutions based on customer requirements and geographical conditions, backed by comprehensive R&D, engineering, production, and after-sales services.
