Multipurpose Amphibious Dredger 15m Dredging Depth 60cm Draught 450m3/h Water Flow
Price:
$288,000/sets >=1 sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
Keda
Product Description
8/3 inch Pump Model and 3 Stage Cutter Head Amphibious Multipurpose Dredger
Product Overview

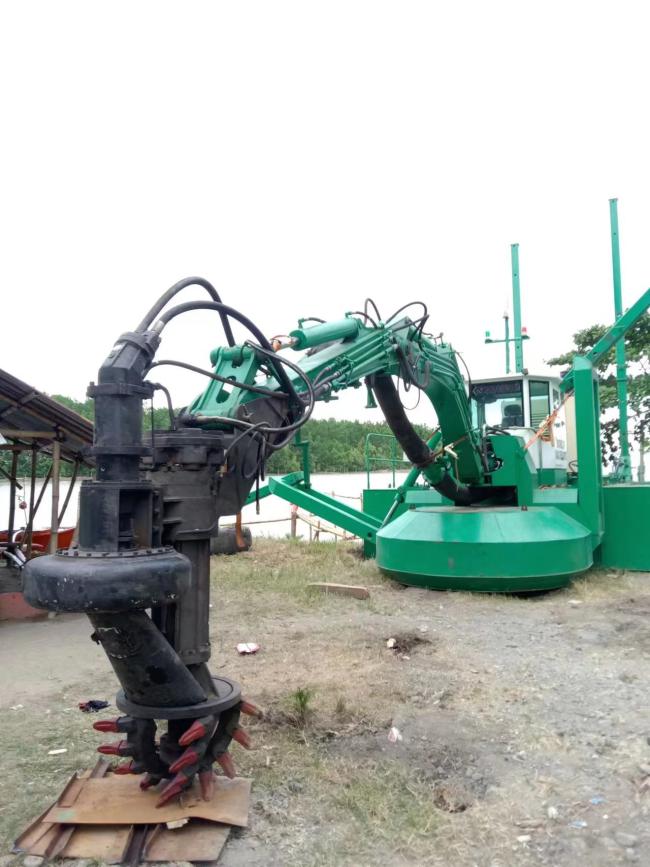

The Water KD-I Amphibious Multipurpose Dredger combines multiple functions including cutter suction, digging, grabbing, piling, and weeding. Designed for versatile operation in shallow water areas including coastal beaches, inland lakes, city rivers, channels, reservoirs, and industrial settling ponds. Ideal for dredging, reclamation, desilting, weeding, and piling operations.
Key Features
- Easy transportation - no crane required, can move on roads and enter/exit water with minimal cost
- Self-propelled with propellers for efficient movement
- Stable operation with spuds and support legs for balance
- High efficiency with submersible mud pump and cutter compound equipment (25% slurry density)
- Simple one-person operation - operators with excavator experience can learn quickly
- Designed for challenging environments where other dredgers cannot operate
- Integrated lighting system for continuous 24/7 operation
Technical Specifications
| No. | Name | Specification | Remarks |
|---|---|---|---|
| 1 | Size (L×W×H) | 11×3.3×3.1m | |
| 2 | Weight | 20t | |
| 3 | Engine | Cummins Made In China | |
| Cooling type | Turbocharged and inter-cooled | ||
| Power | 194kw (260hp) | ||
| Rotation speed | 2200r/min | ||
| Fuel tank | 2000L | ||
| Electric system | 24V | ||
| 4 | Hydraulic System | Rexroth series Made In China | |
| Axial piston pump A | For dredge pump and propeller | ||
| Max. operating pressure | 25MPa | ||
| 5 | Excavator | ||
| Swinging angle | 180º | ||
| Bucket cylinder force | 80kn | ||
| Lifting capacity at max. reach | 22kn | ||
| Lifting capacity with Power Lift at max reach | 25kn | ||
| 6 | Stabilizer | ||
| Front stabilizer, max depth | 5m | ||
| Rear tilting stabilizer, max depth | 6m | ||
| 7 | Hull | 8 compartments, corrosion resistant painting outside and inside, protective skid bars on bottom, slip-safe deck, handrails | |
| 8 | Operation Room | Adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights | Self-propulsion, speed of 4 knots |
| 9 | Optional Equipment | Reamer pump, mud pipe, nozzle, rake, clam shell, vertical pile bucket, steel sheet pile head, maintenance crane, side pontoon | |
| 10 | Dredge Pump | ||
| Outlet diameter | 250mm | ||
| Max. dredging depth | 6.5m | ||
| Max. discharging distance | 1500m | ||
| Water flow | 400m³/h |
Product Images
Packaging & Shipping
Packaging: FLC&LCL Export standard container 20/40 GP with steel support & iron sheet sea-worthy package. Export software scientific loading work.
Transportation: By sea freight (MSK/MSC/APL/EMC/WANHAI/KLINE) or air delivery services. We provide arrival notifications.
Company Information
Qingzhou Keda Ore Machinery Co., Ltd. is a modern, ISO9001:2008 certified manufacturer specializing in mining equipment since 2002. Our 20,000 square meter facility employs 120 staff including engineers and technicians. We hold PATENTS for our gold wash plant designs - the only manufacturer with this distinction in China.
Main Products
- Gold wash plants series: Capacity from 5-500 tons/hour, including both wet and dry configurations
- Dredgers series: For mining, sand production, reclamation, desilting, and land reclamation
- Crusher series: Including hammer crusher, impact crusher, and jaw crusher
Frequently Asked Questions
- Is your company a direct manufacturer? Yes, we are direct producers.
- What are your main products? Gold extracting equipment is our specialty.
- Are your products certified? Yes, all products are certified and some are patented.
- What after-sales service do you provide? 1-year warranty with fast, affordable spare parts service.
Contact Information
For inquiries about our products, please contact:
Fergie Wu
Qingzhou Keda Mining Machine Co., Ltd.
Email: sales08(at)miningmachine.net
Skype: kedamachinery08
Tel/Fax: 0086-536-2105419
Mobile: 0086-18353690657
