Mini Gold Wash Plant 30-50 t/h with 2000x2200mm Feeder Hopper 1000x2000mm Gold Chutes
Price:
$18,500/sets >=1 sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
Keda
Product Description

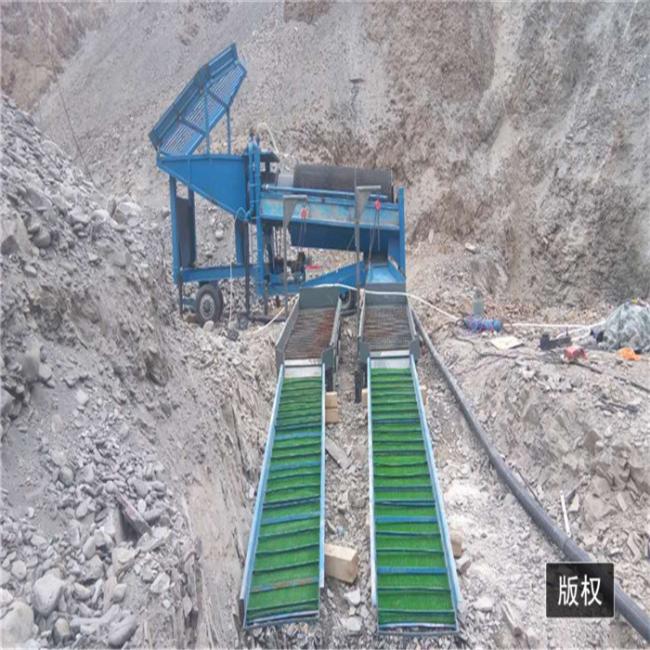

Gold Washing Machine Mini Gold Wash Plant
Compact gold processing solution for small to medium scale alluvial gold mining operations.
About Our Company
Core Advantage: Specialized in gold mining equipment manufacturing since 1992.
One of China's leading gold washing plant suppliers, specializing in equipment for alluvial gold, placer gold, river gold, and gold sand processing.
Main Equipment Components
- Complete gold washing plants
- Gold concentrators
- Gold shaking tables
- Gold jig machines
- Gold trommel screens
- Gold sluices
- Spiral chutes
Applications
Our mini gold wash plant is designed for efficient processing of alluvial gold deposits, placer gold, and gold sand. The system uses trommel screening to separate material by size before concentration through jigging machines, centrifugal separators, sluice boxes, and shaking tables. Ideal for mobile operations in Africa and South America, suitable for small to large scale alluvial mining operations.
Key Features
- Integrated classification, screening and grading system
- Robust construction with simple, reliable operation
- High processing capacity with low investment cost
- Quiet operation with minimal vibration
- Easy maintenance with accessible components
- Specialized screen design prevents clogging and extends service life
Customization Options
- Wheel-mounted for mobility
- Grizzly hopper feed system
- Water pump and piping systems
- Diesel or electric power options
- Custom designs to your specifications
- Variable screen materials, sizes and layers
- Optional gold sluice box attachments
Technical Specifications
| Model | Drum Dia (mm) | Screen size (mm) | Rotation speed (r/min) | Feeding size (mm) | Water requirement (M3/h) | Angle of inclination (°) | Capacity (T/h) | Power (kw) |
|---|---|---|---|---|---|---|---|---|
| keda-400 | 400 | 20 | 27.9 | 80 | 1 | 10 | 10 | 3 |
| keda-600 | 600 | 25 | 27.6 | 80 | 1.2 | 10 | 20 | 5 |
| KEDA-750 | 750 | 25 | 27.6 | 100 | 1.3 | 10 | 30 | 7.5 |
| KEDA-900 | 900 | 25 | 27.6 | 100 | 1.5 | 10 | 40 | 15 |
| KEDA-1200 | 1200 | 25 | 19 | 160 | 1.7 | 10 | 50-70 | 22 |
| KEDA-1500 | 1500 | 50 | 19 | 230 | 2 | 10 | 70-120 | 30 |
| KEDA-1800 | 1800 | 50 | 16 | 230 | 2.2 | 10 | 120-150 | 37 |
| KEDA-2100 | 2100 | 50 | 16 | 230 | 2.4 | 10 | 150-180 | 45 |
