4000m3/h Hydraulic Cutter Suction Dredger 700mm Suction 640mm Discharge Diameter
Price:
$110,000/sets >=1 sets
MOQ:
1
Delivery Time:
30
Brand:
KeDa
Product Description
High-Efficiency 4000m³/h Hydraulic Sand Pump Cutter Suction Dredger
Gold Diamond Mining Fully Hydraulic Cutter Suction Dredger
Diesel-Powered Sand Dredging Boat Equipment Machine
Product Overview

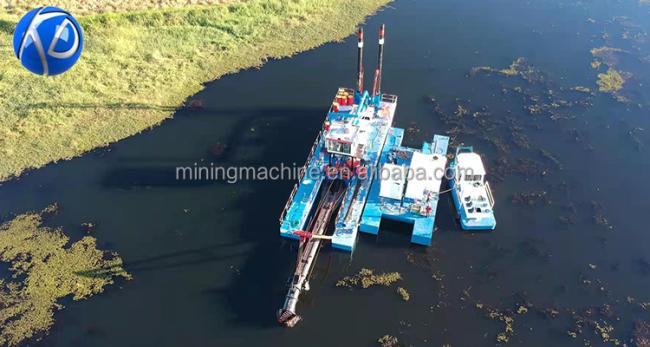

KEDA 20 inch Cutter Suction Dredger - CSD500 is a stationary dismountable vessel equipped with a rotating cutter head designed for dredging rock, clay, silt and sand.
Technical Specifications
| ITEM | DATA |
|---|---|
| Model | CD-CSD500 |
| Workload | 5000m³/h |
| Dredging Depth | 16 m Max |
| Loa(L*W*H) | 38*8.5*2.5m |
| Suction Diameter | 700mm |
| Discharge Diameter | 640mm |
| Cutter Power | 300kw |
| Main Engine | Cummins/Weituo |
| Discharge distance | 2500m |
| Lift | 62m |
Our cutter suction dredger can accept customized, non-standard products. If the following parameters cannot meet your needs, please contact us to obtain your exclusive customized solution.
Model Comparison
| MODEL | Workload | Dredging Depth | Lift | Suction Diameter | Discharge Diameter | Discharge distance |
|---|---|---|---|---|---|---|
| csd150 | 450m³/h | 5m | 36m | 250mm | 200mm | 2500m |
| csd200 | 750m³/h | 6m | 49m | 300mm | 260mm | 2000m |
| csd250 | 1100m³/h | 10m | 56m | 350mm | 300mm | 2000m |
| csd300 | 2200m³/h | 12m | 57m | 530mm | 450mm | 1500m |
| csd350 | 3000m³/h | 12m | 58m | 540mm | 510mm | 1100m |
| csd450 | 4000m³/h | 15m | 55m | 630mm | 560mm | 700m |
| csd500 | 5000m³/h | 16m | 62m | 700mm | 640mm | 500m |
Key Components
1. Dredger Hull
- Material: Ship steel plate
- Structure: Can be dismantled and assembled at working site
- Hull quantity: Two side hulls and one main hull
2. Power System
- Name: Diesel Engine
- Brand: World famous CUMMINS brand or Weichai brand as required
- Power: 60-2000Kw
- Function: Supply power to the dredger
3. Marine Gear Box
Semi-automatic system suitable for optimal dredging operations.
4. Sand Pump
- Pump Flow: 100-5000m³/h
- Sand output: 40-1500m³/h
- Material: High chromium alloy super wearing-resistant
- Discharge Distance: 100-2000m
- Pump Sealing: Packing seal
5. Hydraulic System
- Cutter head hydraulic system
- Spud hydraulic system
- Winch hydraulic system
- Hydraulic pump
- Hydraulic oil tank and pipes

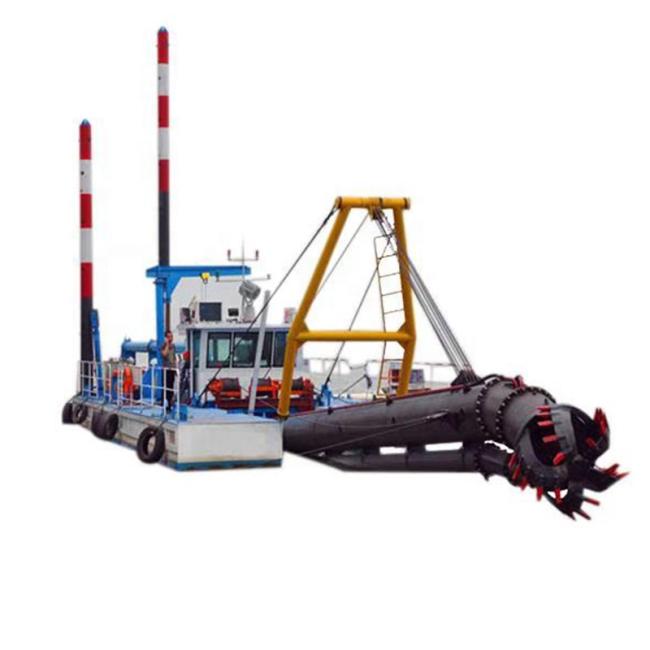

6. Cutter Head
- Drive type: Hydraulic drive
- Teeth type: Replaceable alloy teeth
- Cutter blade material: 16Mn
- Cutter teeth quantity: Multi teeth
Why Choose Qingzhou KEDA Environment Protection Machinery Co., Ltd
- More than 10+ years of production experience in dredgers and mineral processing equipment
- Strong technical service team, can provide customized services
- Own design team with 21 patents
- Industry and Trade Integration Enterprise
- The factory covers an area of over 22,000 square meters
- 3 production lines - dredger, cleaning boat, gold mining equipment
