High Capacity 30-500t/h Gold Wash Plant with 220v/380v Voltage and >98% Production Efficiency
Complete Mining Solutions
We provide complete mining solutions, from single machines to full plant design.

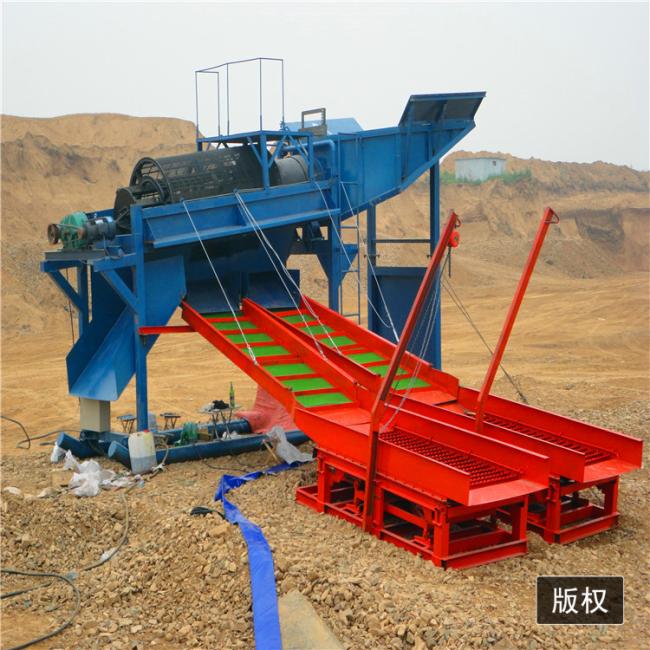

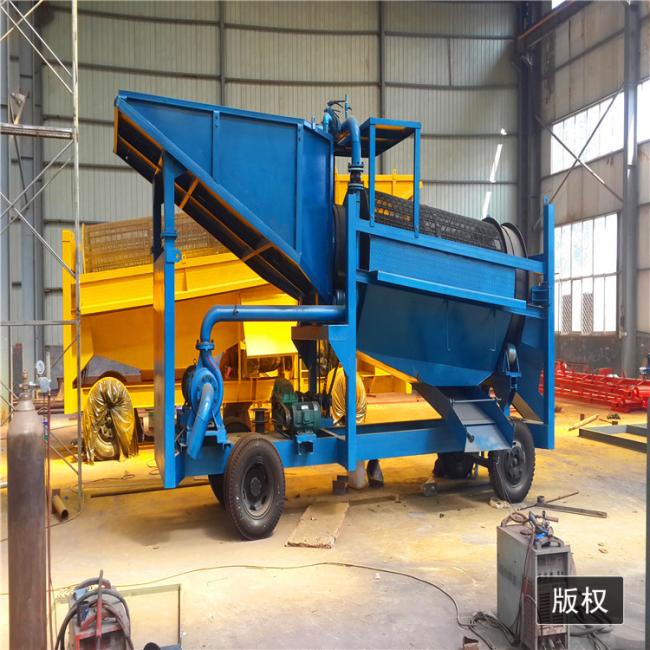

Mining Separating Equipment - Gold Trommel
Basic Parameters
| Model | KDTJ-50 | KDTJ-100 | KDTJ-200 |
|---|---|---|---|
| Dimension (L*W*H)(mm) | 7000*2000*3000 | 8300*2400*4700 | 9800*3000*5175 |
| Processing capacity (t/h) | 30-50 | 100-150 | 200-300 |
| Power(kw) | 24 | 50 | 75 |
| Feeder hopper size (L*W) | 2000*2200mm | 3000*2200mm | 3800*3000mm |
| Gold chutes with carpet size (W*L) | 1000*2000mm | 1000*6000mm | 1000*6000mm |
| Quantity | 2 | 2 | 3 |
| Water system pump power(kw) | 7.5 | 30 | 45 |
Optional equipment: Wheel, Grizzly, conveyor, shaking chute, centrifugal machine etc.
Machine Operation Process

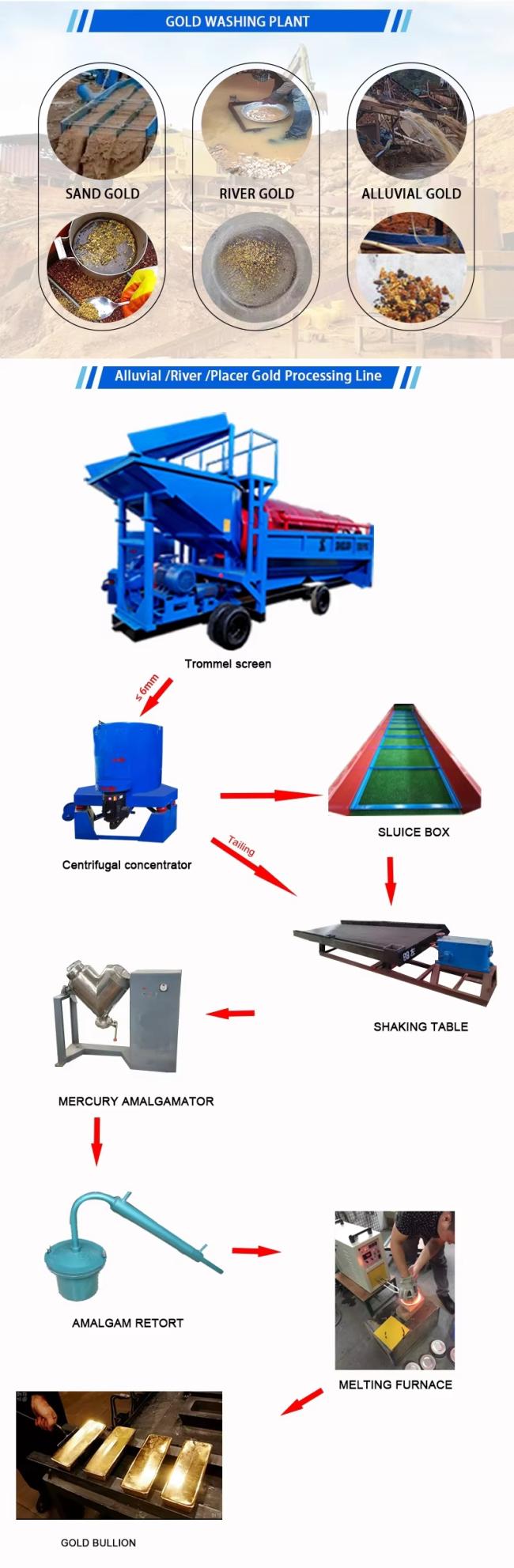

Loader → Scrubber → Washing Trommel → Fixed Chute → Shaking Chute (or centrifugal Concentrator) → Shaking Table → Amalgamator → Amalgam Separator → Distillation Rebort → Gold Furnace
Product Features
Double trommels with adjustable mesh size, which separates stones from the mine quickly and improves gold recovery rate.
Reasonable structure helps move material more easily from the feeder to the trommel.
Fashionable, mobile design with reasonable structure makes it a hot-selling product.
Detachable structure saves space and reduces freight costs during transportation.
All types of gold mining equipment available from our factory. Our one-stop service saves you money and time, with direct factory support ensuring reliable after-sales service.
Why Choose Us?
- We are the Factory - All machines from Qingzhou Keda Mining Machine CO., LTD. Made by ourselves with lower price, good quality and full after-sales service.
- Training & Service - We provide prophase plans, process flow design and manufacture equipment according to your specific demands.
- Excellent After-Sales Service - We offer one-year warranty and keep spare parts inventory for quick replacements when needed.
Product Videos
1. Company Introduction Video 2. Vibrating Screen Working Video 3. Gold Wash Plant Working Video 4. Cutter Suction Dredger Working Video 5. Portable Gold Dredger Working VideoCompany Information
Established in 2002, our company covers more than 20,000 square meters with modern workshops and offices. Our team includes 100 staff members: 2 senior engineers, 5 engineers, 15 technicians and 60 technical workers.
We specialize in custom dredging and mining equipment for different environments, handling the complete process of filtering, extracting, separating, washing and classifying. Our engineers work closely with clients to develop optimal solutions.
