Comelink OSFP-800G-2XDR4 Compatible 800G OSFP 2xXDR4 1310nm 2km PAM4 DDM Dual MPO/MTP-12 SMF Optical Transceiver Module
Price:
USD 800 PCE
MOQ:
1 PC
Delivery Time:
3-5 workdays
Brand:
Comelink
Product Description
OSFP-800G-2XDR4 Compatible OSFP-800G-2xXDR4 OSFP PAM4 Optical Transceiver Module (SMF, 1310nm, 2km, Dual MTP/MPO-12 APC, DDM)
OSFP-800G-2xXDR4 transceiver a high performance, cost effective module for optical data communication applications supporting 800G Ethernet. The OSFP-800G-2xXDR4 supports up to 2km link lengths over single-mode fiber (SMF) via dual MTP/MPO-12 connectors. The OSFP-800G-2xXDR4 can convert 8-channel 106.25Gb/s electrical data to 8-channel 106.25Gb/s optical signals. Similarly, it optically converts 8-channel 106.25Gb/s optical signals to 8-channel electrical data output on the receiver side.It is suitable for 800G Ethernet, Breakout 2x 400G XDR4, Data Center and Cloud Networks.
Feature:
- Max Power Consumption ≤16W.
- Provide Professional Compatibility and Parameter Test Reports.
- Compliant with Hot Pluggable OSFP MSA, IEEE802.3ck Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
- 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.
Quality Assurance
Excellent quality is the foundation of Comelink's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Specificiation
Form Factor
Twin-port OSFP
Distance
2km
Wavelength
1310nm
Connector
Dual MTP/MPO-12 APC
Power Consumption
≤16W
Transmitter
EML
Receiver
PIN
Media
SMF
Modulation(electrical )
8x106.25Gb/s PAM4
Modulation(Optical )
8x106.25Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
800G Ethernet Compliant

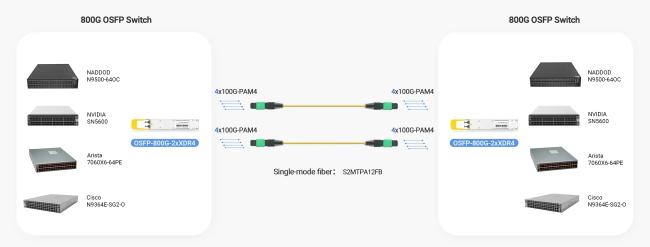

Application:
Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
Unleash HPC Power with InfiniBand Architecture
We provides the Infiniband network solution, offering significant advantages in terms of high-speed, low latency, scalability, and efficiency.
Flat Top OSFP Connector Shell
The OSFP shell has a flat top and is used in adapters, such as ConnectX-7 InfiniBand Adapter Cards.
