Comelink QSFP-DD-200G-SR4 2x 100G QSFP-DD SR4 850nm 70m/100m OM3/OM4 MTP/MPO-16 MMF Optical Transceiver Module
Price:
USD 450 PCE
MOQ:
1 PC
Delivery Time:
3-5 workdays
Brand:
Comelink
Product Description
2X100G QSFP-DD SR4 Optical Transceiver Module (850nm MTP/MPO-16 MMF 70m/100m OM3/OM4 DDM)
2X100G QSFP-DD SR4 transceiver provides 200GBase-SR4 throughput up to 100m over multi-mode fiber (MMF) using a wavelength of 850nm via an MPO-16 connector. It supports Digital optical monitoring (DOM). Its easy-to-install, hot-swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically.
Feature:
- Built-in Marvell DSP Chip, Max Power Consumption ≤5W.
- Provide Professional Compatibility and Parameter Test Reports.
- Compliant with Hot Pluggable QSFP MSA, IEEE 802.3bs Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
- 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.
Quality Assurance
Excellent quality is the foundation of Comelink's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Specificiation
| P/N | QSFP-DD-200G-SR4 | Vendor Name | Comelink |
| Form Factor | QSFP-DD | Max Data Rate | 200Gbps |
| Wavelength | 850nm | Max Distance | 70m on OM3/100m on OM4 |
| Connector | MTP/MPO-16 | Voltage Supply | 3.3V |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| TX Power | Each Lane | Receiver Sensitivity | < -10.3dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 5W |
| Protocols | IEEE 802.3bm 100GBASE- SR4, QSFP-DD MSA |
Application | 200G Ethernet, Data Center Interconnect |

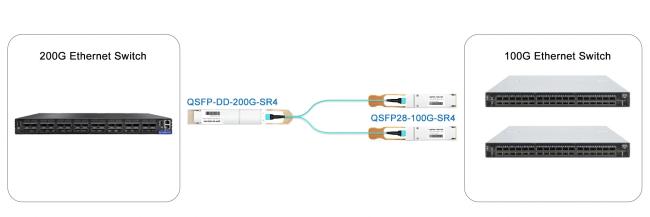

Application:
Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
Unleash HPC Power with InfiniBand Architecture
We provides the Infiniband network solution, offering significant advantages in terms of high-speed, low latency, scalability, and efficiency.
Flat Top OSFP Connector Shell
The OSFP shell has a flat top and is used in adapters, such as ConnectX-7 InfiniBand Adapter Cards.
