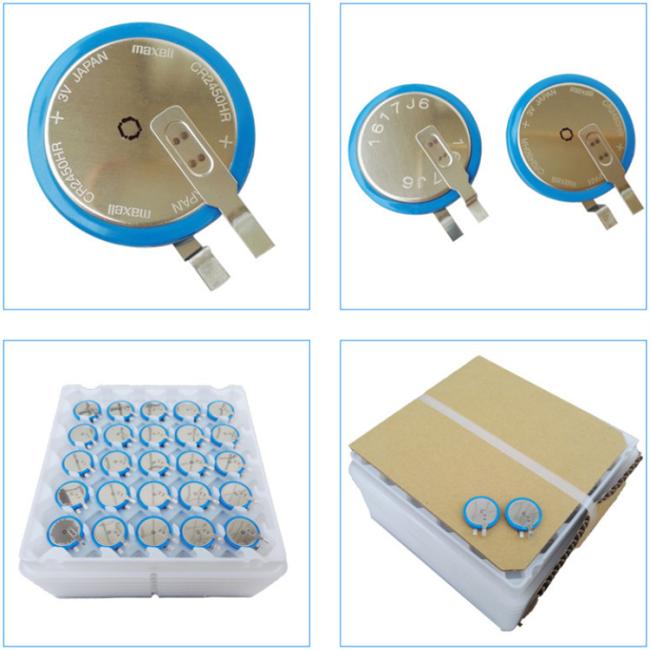

CR2032HR Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial
| Attribute | Value |
|---|---|
| Model | CR2032HR/CR2050HR/CR2450HR |
| Nominal voltage (V) | 3 |
| Nominal capacity (mAh)*1 | 200/350/550 |
| Nominal discharge current (mA) | 0.2 |
| Operating temperature range (deg. C)*2 | -40 to +125 |
| Acceleration resistance | Max. 2000 G |
| Diameter (mm) | 20.0/20.0/24.5 |
| Height (mm) | 3.2/5.0/5.0 |
| Weight (g)*3 | 3.0/4.1/6.8 |
*2: When using at temperatures exceeding 85°C, please consult Maxell in advance
*3: Typical values
Maxell's original sealing technology and highly heat-resistant material expands operating temperature range remarkably, making the batteries supremely suitable for automobile applications -- for powering TPMS (Tire Pressure Monitoring System) sensors, for example.
The range of technologies where these batteries can be applied is expanding to include IoT sensors and HACCP temperature loggers that require a wide operating temperature range.
- Wide operating temperature range: -40°C to +125°C*
- Superior leak-resistant characteristics even under high temperature and acceleration
- Can be used even under 2000 G, which is equivalent to driving at 300 km/h
- Resistance to high temperature/humidity: Increase in internal resistance can be suppressed even when exposed to harsh conditions for long periods
The heat resistant coin type lithium manganese dioxide battery is a UL recognized component. (Technician Replaceable)
Recognized model: CR2450HR, CR2050HR, CR2032HR, CR2032HRS
Certification Number: MH12568
- TPMS (Tire-Pressure Monitoring System)
- ETC (Electronic Toll Collection systems)
- Keyless entry systems
- Seat location sensors
- Communication tags, beacons
- Temperature data loggers (HACCP temperature loggers)
- Logistics tags
- FA instruments (measuring instruments, onboard microcomputers, sensors)
- IoT sensors
| Model | CR2032HRS | CR2032HR | CR2050HR | CR2450HR |
|---|---|---|---|---|
| Nominal voltage (V) | 3 | 3 | 3 | 3 |
| Nominal capacity (mAh)*1 | 200 | 200 | 350 | 550 |
| Nominal discharge current (mA) | 0.2 | 0.2 | 0.2 | 0.2 |
| Operating temperature range (deg. C)*2 | -40 to +125 | |||
| Acceleration resistance | Max. 3300 G | Max. 2000 G | Max. 2000 G | Max. 2000 G |
| Dimensions*3 | Diameter (mm): 20.0 Height (mm): 3.2 |
Diameter (mm): 20.0 Height (mm): 3.2 |
Diameter (mm): 20.0 Height (mm): 5.0 |
Diameter (mm): 24.5 Height (mm): 5.0 |
| Weight (g)*3 | 3.0 | 3.0 | 4.1 | 6.8 |
