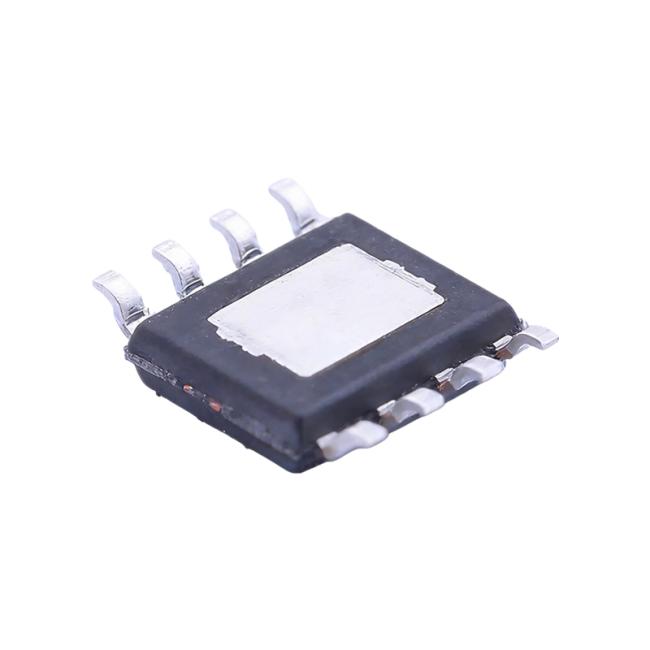

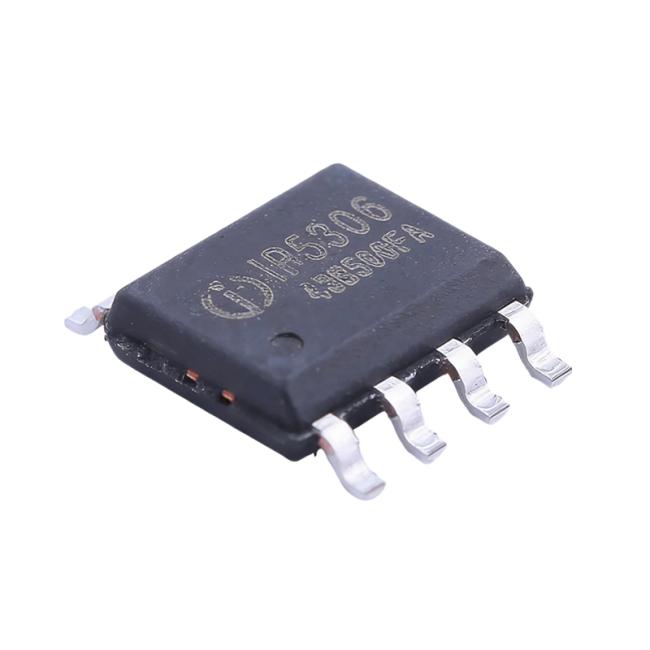

IP5306 2.1A charging 2.4A discharging highly integrated portable power supply system on-chip (SOC)

Application fields

• Portable power banks / charging stations
• Portable devices such as mobile phones and tablets

Synchronous switching charge and discharge

• 2.4A synchronous boost conversion, 2.1A synchronous switching charging
• The boost efficiency is up to 92%, and the charging efficiency is up to 91%
• Built-in power path management, supporting charging and discharging simultaneously
• Adaptive charging current adjustment, adaptive adapter
• Supporting 4.20/4.30/4.35/4.40V batteries
• Supporting 4, 3, 2, 1 LED battery level display
• Key press to power on, built-in lighting driver
• Automatic detection of phone insertion and removal
• Intelligent identification of load, automatically entering standby mode, standby power consumption less than 100μA
• Power MOS integrated, single inductor for charge and discharge
• Output overcurrent, overvoltage, short circuit protection
• Input overvoltage, overcharge, overdischarge, overdischarge protection
• Whole machine over-temperature protection
• ESD 4KV, instantaneous withstand voltage 12V
• Customizable I²C interface, flexible and low-cost customization solution available

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
