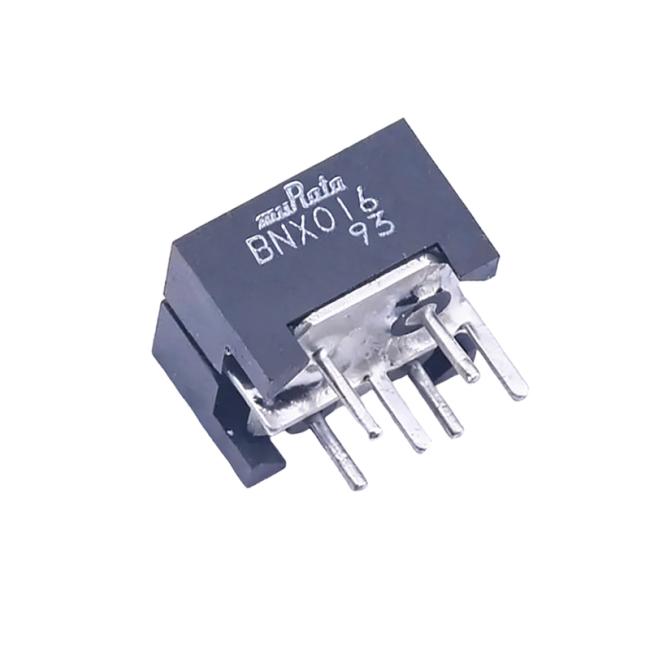

BNX016-01 EMI Filter Circuit with 40 DB Insertion Loss 25V Voltage Rating and 15A Current Rating for Noise Suppression
- The filter enables obtaining high insertion loss in wide frequency ranges from 0.5MHz to 1GHz.
- The only one filter block enable noise suppression of both the positive and negative lines.
- There are no connection routes in the current circuits, thus ensuring highly reliable performance.
- Noise suppression for DC power line of large screen display
- PDP
- LCD-TV
| Part Number | Rated Voltage (Vdc) | Withstand Voltage (Vdc) | Rated Current (A) | Insulation Resistance (min.) (M ohm) | Insertion Loss |
|---|---|---|---|---|---|
| BNX002-01 | 50 | 125 | 10 | 100 | 1MHz to 1GHz:40dB min.(20 to 25°C line impedance=50 ohm) |
| BNX003-01 | 150 | 375 | 10 | 100 | 5MHz to 1GHz:40dB min.(20 to 25°C line impedance=50 ohm) |
| BNX005-01 | 50 | 125 | 15 | 100 | 1MHz to 1GHz:40dB min.(20 to 25°C line impedance=50 ohm) |
