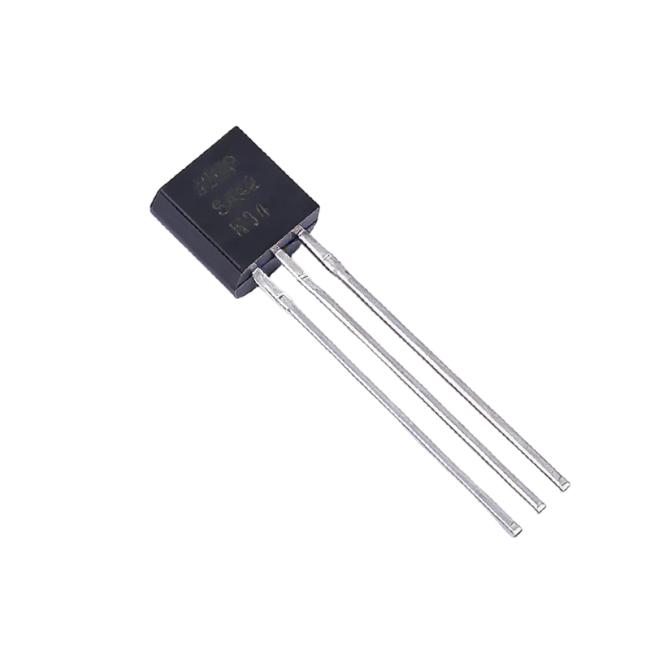

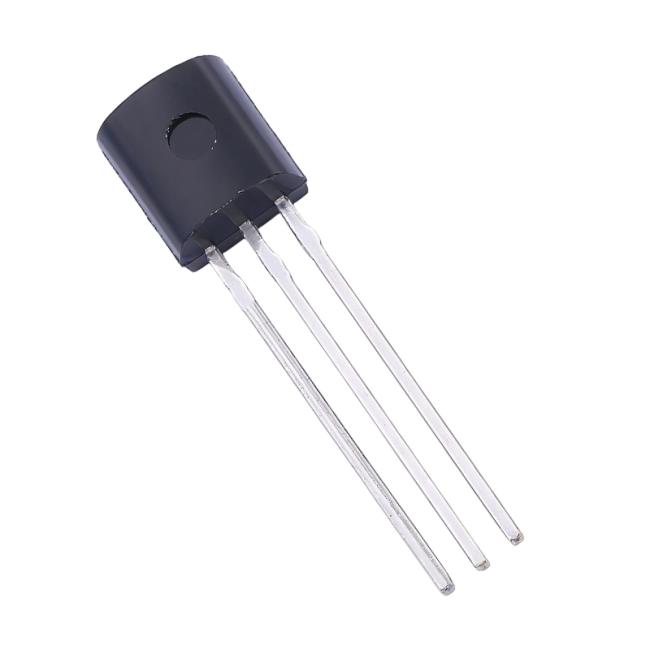

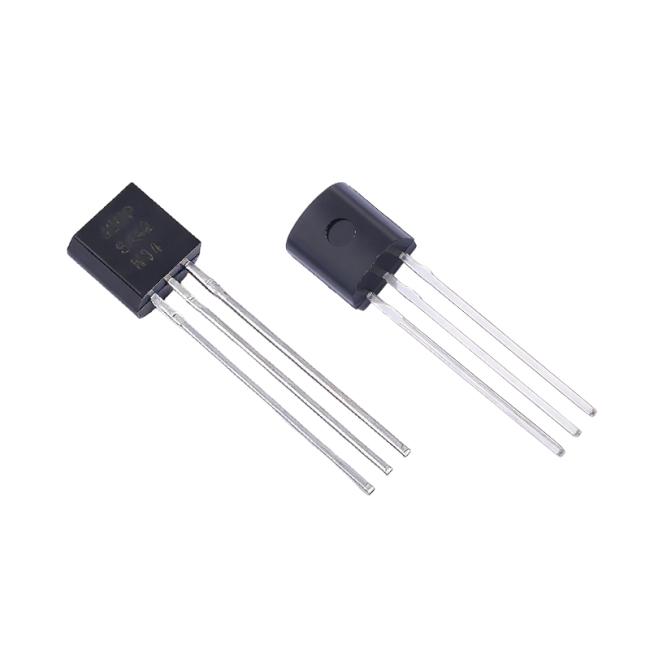

MPSA42 NPN Bipolar Transistor with 300V Collector-Base Voltage 500mA Collector Current in TO-92-3 Package
- These are Pb−Free Devices*
| Rating | Symbol | Value | Unit |
|---|---|---|---|
| Collector−Emitter Voltage | |||
| MPSA43 | VCEO | 200 | Vdc |
| MPSA42 | 300 | ||
| Collector−Base Voltage | |||
| MPSA43 | VCBO | 200 | Vdc |
| MPSA42 | 300 | ||
| Emitter−Base Voltage | VEBO | 6.0 | Vdc |
| Collector Current − Continuous | IC | 500 | mAdc |
| Total Device Dissipation @ TA = 25°C Derate above 25°C |
PD | 625 5.0 |
mW mW/°C |
| Total Device Dissipation @ TC = 25°C Derate above 25°C |
PD | 1.5 12 |
W mW/°C |
| Operating and Storage Junction Temperature Range |
TJ, Tstg | −55 to +150 |
°C |
| Characteristic | Symbol | Max | Unit |
|---|---|---|---|
| Thermal Resistance, Junction−to−Ambient |
RJA | 200 | °C/W |
| Thermal Resistance, Junction−to−Case |
RJC | 83.3 | °C/W |
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability
