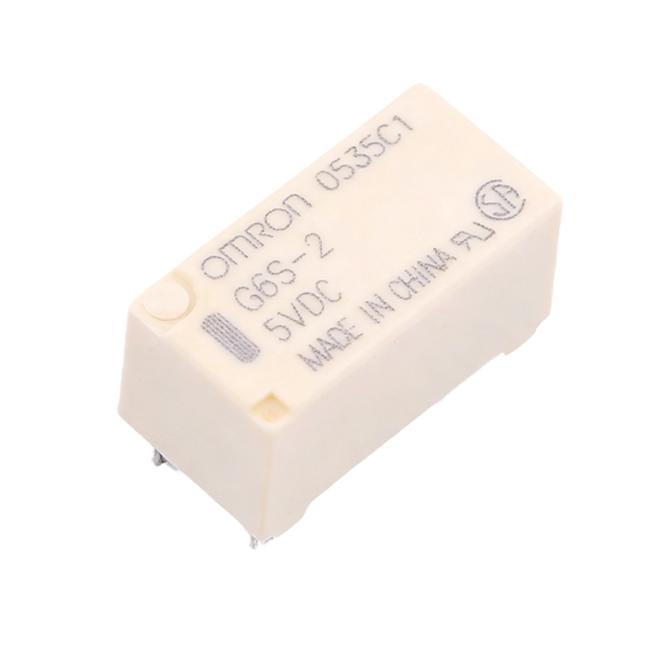

G6S-2 DC5 Low Signal Relay with 5 VDC Coil Voltage DPDT Contact Form and High Dielectric Strength for PCB Thru-Hole Mounting
Price:
consult with
MOQ:
1
Delivery Time:
5-8days
Brand:
OMRON
Product Description
G6S-2 DC5 Low Signal Relays - PCB ThruHole NonLatch 2A DPDT 5VDC 140mW
Key Features
- Long terminals for ideal for soldering and mounting reliability. (Surface mounting terminal models)
- Space-saving inside-L terminal. (Surface mounting terminal models)
- Unique terminal structure, designed to withstand IRS soldering processes. (Surface mounting terminal models)
- High dielectric strength (2,000 VAC) and impulse withstand voltage between coil and contacts (2,500 V, 2 * 10 μs: Telcordia requirements).
- Ultra-miniature at 9.4 mm (H) * 7.5 mm (W) * 15 mm (L).
- Models available with BSI (EN62368-1) supplementary insulation certification. (-Y type)
PCB Terminal Standard Models
| Enclosure rating | Contact form | Single-side stable | Single-winding latching | Double-winding latching | Minimum packing unit | |||
|---|---|---|---|---|---|---|---|---|
| Model | Rated coil voltage | Model | Rated coil voltage | Model | Rated coil voltage | |||
| Fully sealed | DPDT (2c) | G6S-2 | 3 VDC | G6SU-2 | 3 VDC | G6SK-2 | 3 VDC | 50 pcs/tube |
| 4.5 VDC | 4.5 VDC | 4.5 VDC | ||||||
| 5 VDC | 5 VDC | 5 VDC | ||||||
| 12 VDC | 12 VDC | 12 VDC | ||||||
| 24 VDC | 24 VDC | 24 VDC | ||||||
G6S-2-Y5 VDCG6SU-2-Y5 VDC12 VDC 12 VDC − −24 VDC 24 VDC
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
