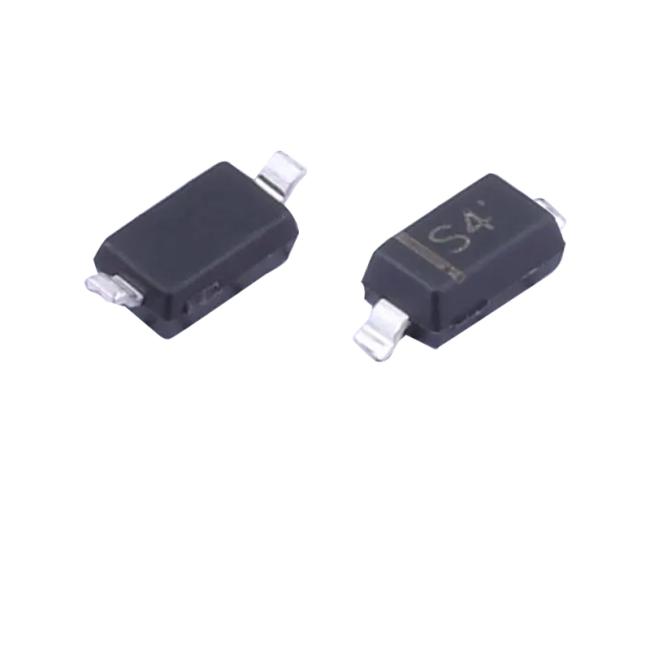

1N5819W Schottky Diode with 40V Reverse Voltage, Low Forward Voltage Drop, and Guard Ring Construction
- Low Forward Voltage Drop
- Guard Ring Construction for Transient Protection
- Negligible Reverse Recovery Time
- Low Capacitance
-Case:SOD-123
-Terminals: Solderable per MIL-STD-750, Method 2026
- Approx. Weight:16mg/0.00056oz
| Parameter | Symbols | 1N5819W |
|---|---|---|
| Peak Repetitive Reverse Voltage | VRRM | 40V |
| RMS reverse voltage | VRMS | 28V |
| Working Peak Reverse Voltage | Voc | 40V |
| Peak Forward Surge Current, 8.3ms single halfsine-wave superimposed on rated load (JEDEC method) | IFSM | 13A |
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
