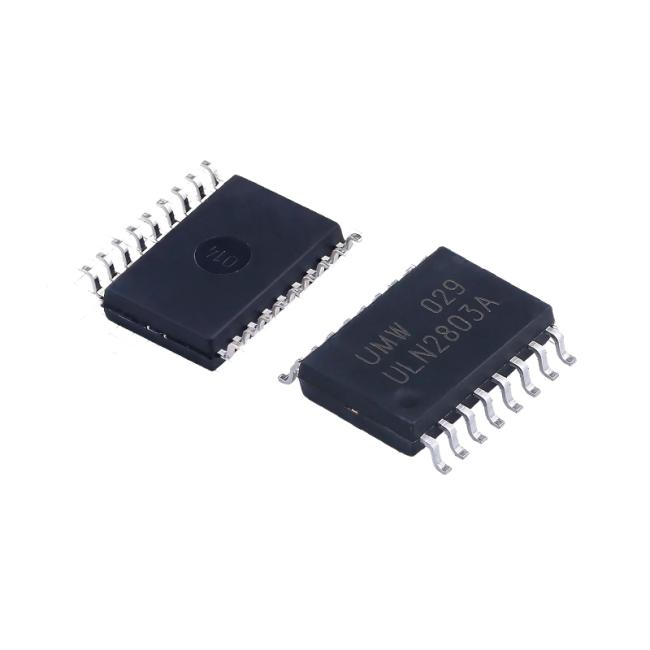

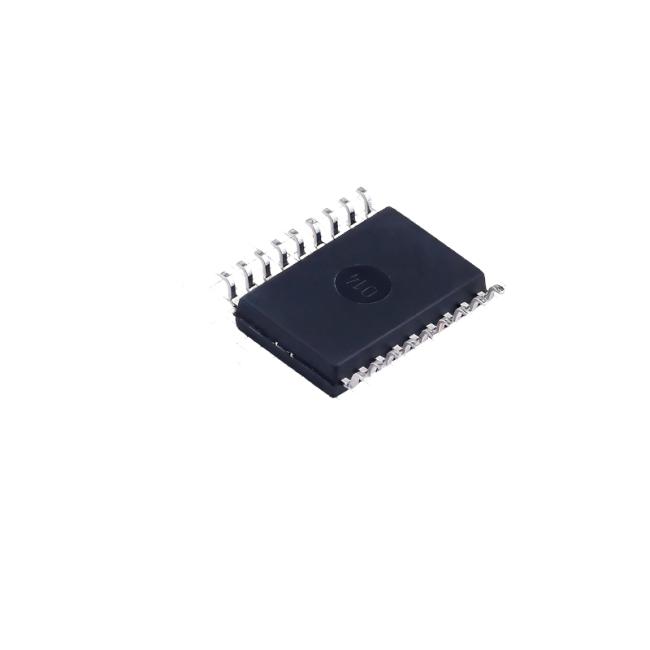

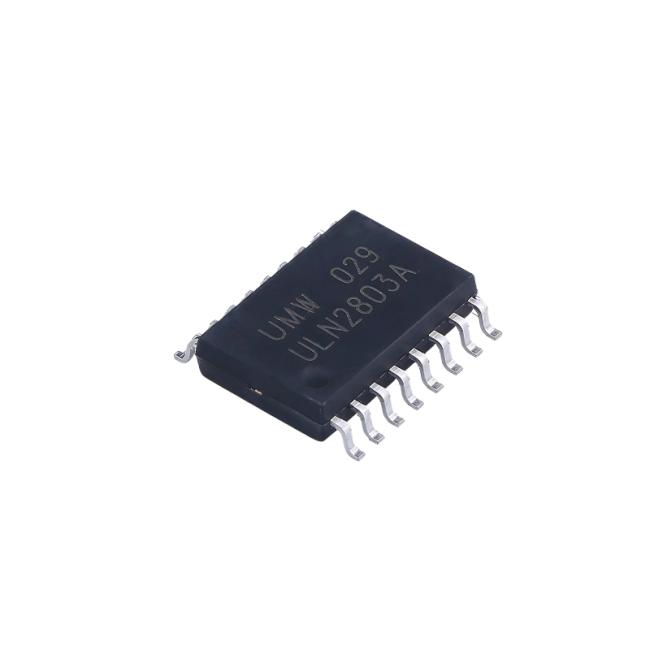

ULN2803A High-Voltage High-Current Darlington Driver IC with 8 NPN Darlington Pairs for Power Management
Price:
consult with
MOQ:
1
Delivery Time:
5-8days
Brand:
UMW
Product Description
ULN2803A is high-voltage high-current darlington driver IC composed of 8 NPN darlington pairs
Features
- Wide operating voltage range
- 8-ch high-gain darlington array
- High output voltage (up to 50V)
- High output current (up to 500mA)
- Able to connect to TTL, CMOS, PMOS directly
- Clamp diodes for switching inductive loads
Pin Description
| Pin Name | Pin | Type | Description |
|---|---|---|---|
| <1:8> | 1-8 | Input | Channel 1~8 darlington input |
| <11:18> | 18-11 | Output | Channel 1~8 darlington output |
| (GND) | 9 | GND | Ground |
| COM | 10 | Input/ Output | Positive of clamp diode (used with inductive load) |
| 1O |
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
- How to obtain the price?
- We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
- What is your delivery time?
- Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
- What are your payment terms?
- Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
- What are the shipping options?
- Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
