6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output
Price:
consult with
MOQ:
1
Delivery Time:
5-8days
Brand:
onsemi
Product Description

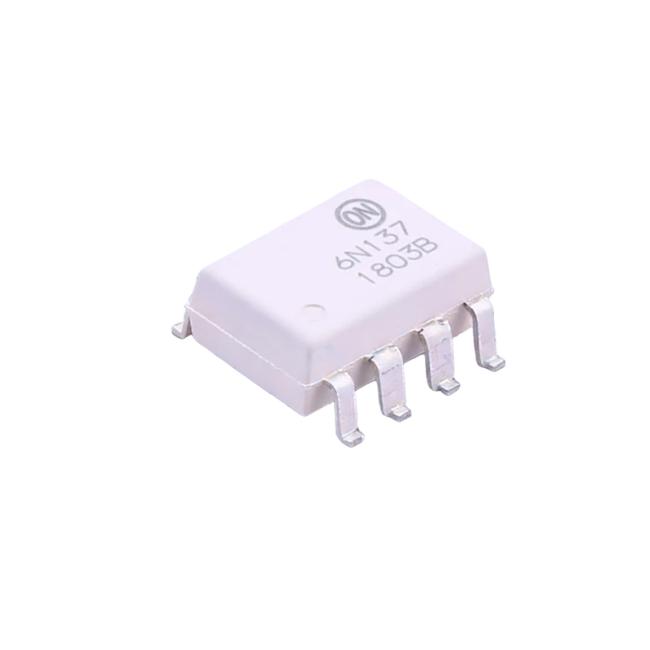

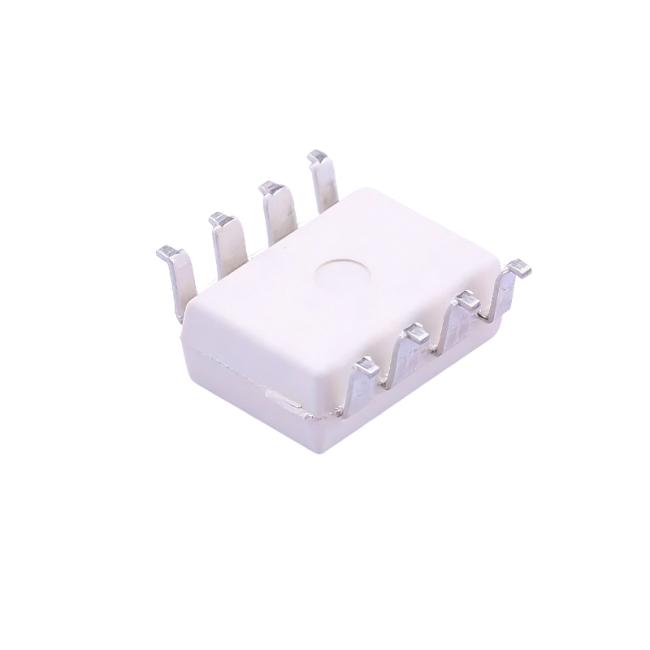

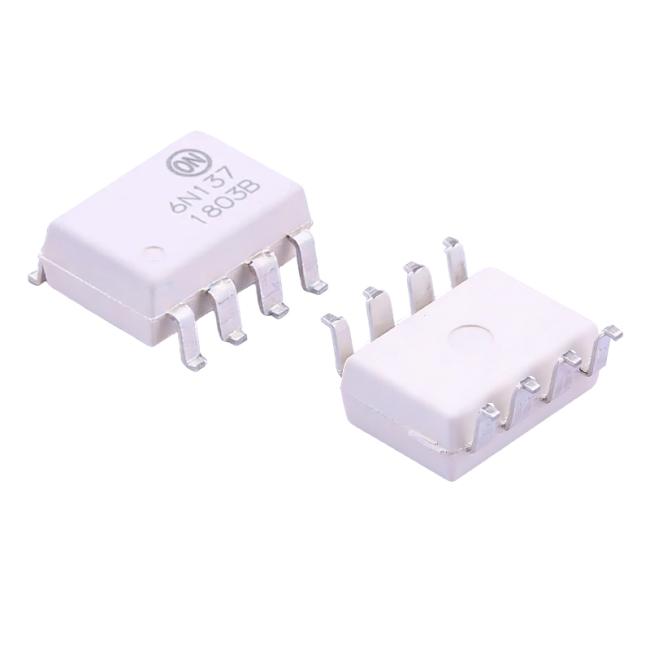

6N137SDM High Speed Optocouplers 8 PW DIP HIGH SPEED LOGIC GATE OPTOCOUP
Features
- Very High Speed – 10 MBit/s
- Superior CMR – 10 kV/µs
- Fan-out of 8 Over -40°C to +85°C
- Logic Gate Output
- Strobable Output
- Wired OR-open Collector
- Safety and Regulatory Approvals– UL1577, 5,000 VACRMS for 1 Minute– DIN EN/IEC60747-5-5
Applications
- Ground Loop Elimination
- LSTTL to TTL, LSTTL or 5 V CMOS
- Line Receiver, Data Transmission
- Data Multiplexing
- Switching Power Supplies
- Pulse Transformer Replacement
- Computer-peripheral Interface
Technical Parameters
| Symbol | Parameter | Value | Unit |
|---|---|---|---|
| VPR | Input-to-Output Test Voltage, Method A, VIORM x 1.6 = VPR,Type and Sample Test with tm = 10 s, Partial Discharge < 5 pC | 1,335 | Vpeak |
| Input-to-Output Test Voltage, Method B, VIORM x 1.875 = VPR,100% Production Test with tm = 1 s, Partial Discharge < 5 pC | 1,669 | Vpeak | |
| VIORM | Maximum Working Insulation Voltage | 890 | Vpeak |
| VIOTM | Highest Allowable Over-Voltage | 6,000 | Vpeak |
| External Creepage | ≥ 8.0 | mm | |
| External Clearance | ≥ 7.4 | mm | |
| External Clearance (for Option TV, 0.4" Lead Spacing) | ≥ 10.16 | mm | |
| DTI | Distance Through Insulation (Insulation Thickness) | ≥ 0.5 | mm |
| TS | Case Temperature(2) | 150 | °C |
| IS,INPUT | Input Current(2) | 200 | mA |
| PS,OUTPUT | Output Power (Duty Factor ≤ 2.7%)(2) | 300 | mW |
| RIO | Insulation Resistance at TS, VIO = 500 V(2) | > 109 | Ω |
