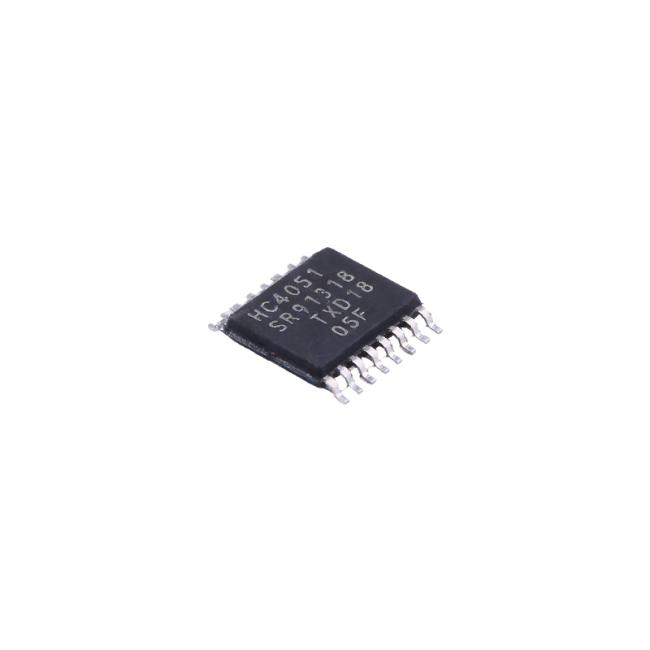

74HC4051PW 8 Channel Multiplexer Switch IC with Wide Analog Input Voltage Range and Low ON Resistance in TSSOP16 Package
- Wide analog input voltage range from -5 V to +5 V
- CMOS low power dissipation
- High noise immunity
- Complies with JEDEC standards
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Low ON resistance:
- 80 Ω (typical) at VCC - VEE = 4.5 V
- 70 Ω (typical) at VCC - VEE = 6.0 V
- 60 Ω (typical) at VCC - VEE = 9.0 V
- Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
- Typical 'break before make’ built-in
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
- E
- 6 enable input (active LOW)
- VEE
- 7 supply voltage
- GND
- 8 ground supply voltage
- S0, S1, S2
- 11, 10, 9 select input
- Y0, Y1, Y2, Y3, Y4, Y5, Y6, Y7
- 13, 14, 15, 12, 1, 5, 2, 4 independent input or output
- Z
- 3 common output or input
- VCC
- 16 supply voltage
