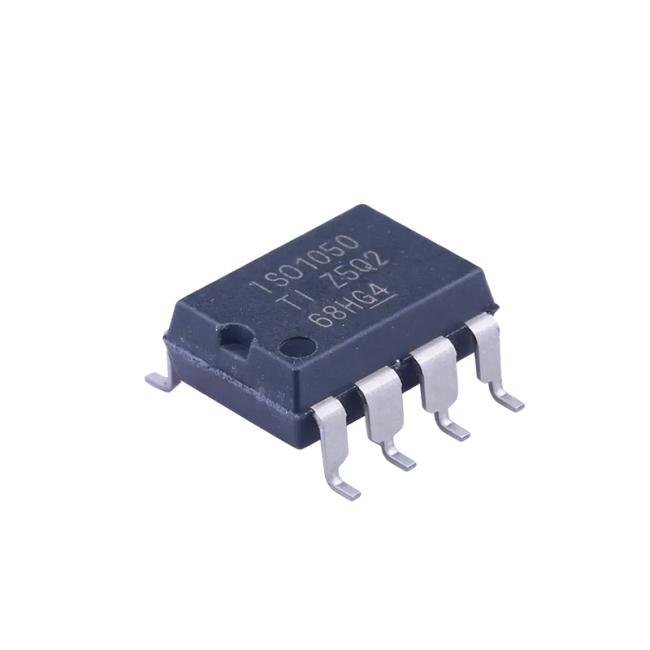

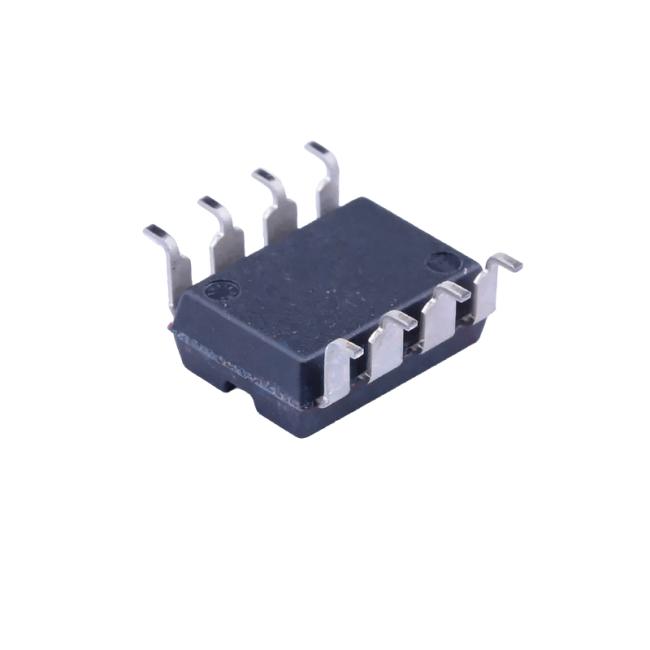

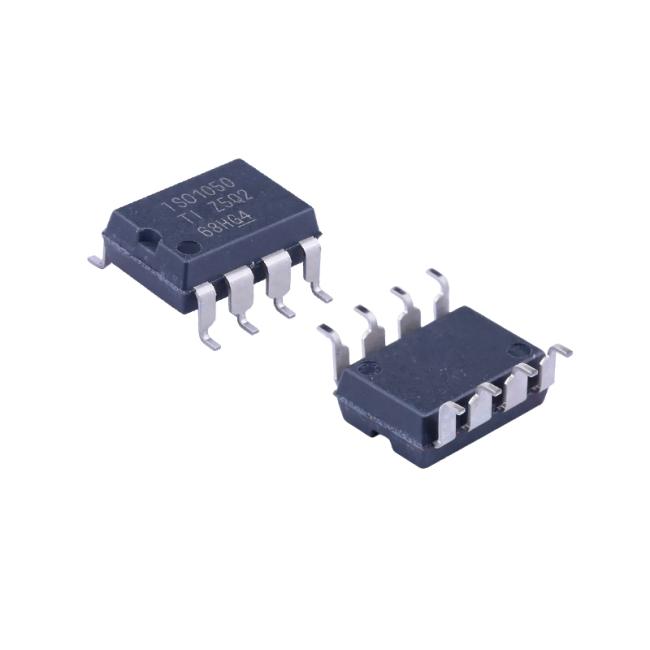

ISO1050DUBR Digital Isolator and CAN Transceiver with 2500 Vrms Isolation 1 Mb/s Data Rate in SOP-8 Package
- Complies with ISO 11898-2 requirements
- 500oVRMS isolation (ISO1050DW)
- 2500VRMS isolation (ISO1050DUB)
- Fallure Protection Output
- Low loop delay: 150ns (typical),210ns (maximum)
- Typical transient immunity 5okV/us
- =Bus fault protection from 27Vto 40V
- Driver (TXD) Explicit Timeout Function
- Supports 3.3V and 5V microprocessor I/O voltage range
- Safety-related certifications
- = Certified by VDE, compliant with DIN EN IEC 60747-17 (VDE 0884-17)
- = Certified by UL 1577
- Certified by CSA, compliant with IEC61010-1,IEC 60601-1
- = Certified by TUV Enhanced Insulation, compliant withEN/UL/CSA 62368-1 (limited to ISO1050DW)
- = Passed CQC Enhanced Insulation Certification,compliant with GB4943.1 (limited to ISO1050DW)
- Typical service life under rated operating voltage is 25 years (refer to application report SLLA197 and the relationshipbetween expected life and operating voltage).
- Industrial automation, control, sensors and drive systems
- Building and HVAC Automation
- Safety system
- transport
- Medical
- telecom
- Such as CANopen, DeviceNet, NMEA2000,ARINC825, ISO11783, CAN Kingdom, CANaerospace and other CAN bus standards
