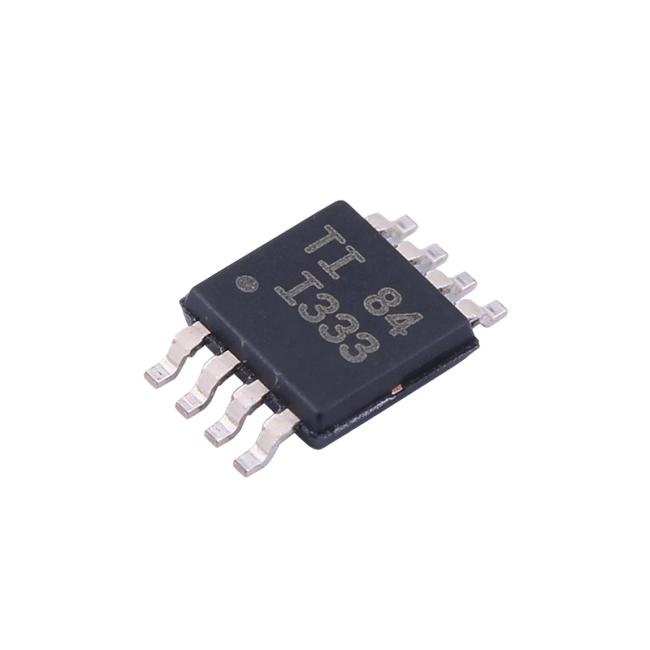

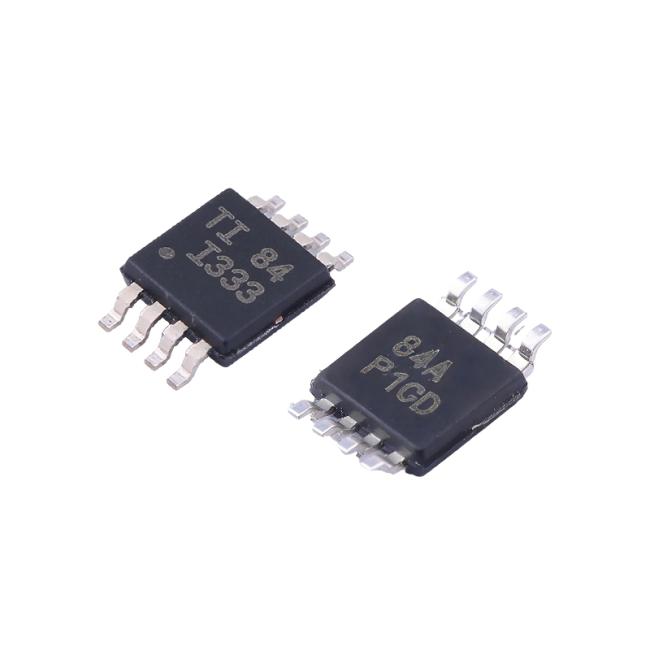

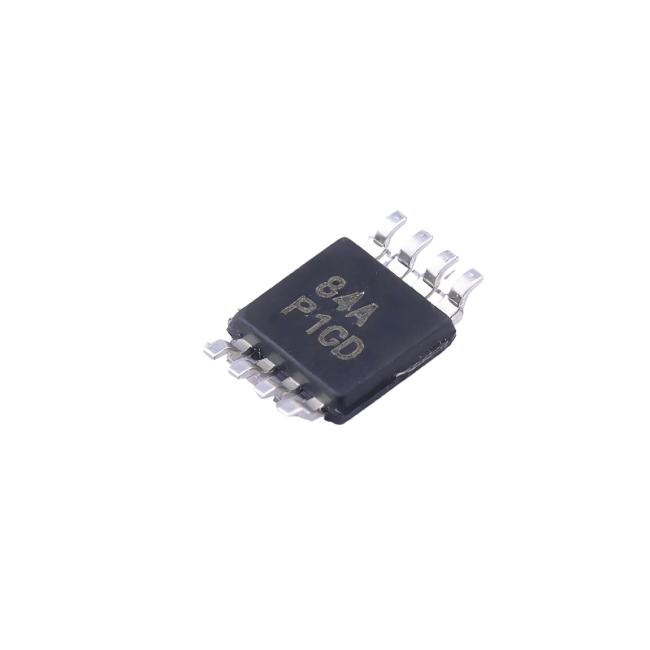

INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current
- Low Offset Voltage: 25 μV (Maximum), G ≥ 100
- Low Drift: 0.1 μV/°C, G ≥ 100
- Low Noise: 50 nV/√Hz, G ≥ 100
- High CMRR: 100 dB (Minimum), G ≥ 10
- Low Input Bias Current: 200 pA (Maximum)
- Supply Range: 1.8 V to 5.5 V
- Input Voltage: (V–) +0.1 V to (V+) –0.1 V
- Output Range: (V–) +0.05 V to (V+) –0.05 V
- Low Quiescent Current: 50 μA
- Operating Temperature: –40°C to +125°C
- RFI Filtered Inputs
- 8-Pin VSSOP and 8-Pin WSON Packages
- Bridge Amplifiers
- ECG Amplifiers
- Pressure Sensors
- Medical Instrumentation
- Portable Instrumentation
- Weigh Scales
- Thermocouple Amplifiers
- RTD Sensor Amplifiers
- Data Acquisition
| Parameter | Min | Max | Unit |
|---|---|---|---|
| Supply voltage | 7 | V | |
| Analog input voltage(2) | (V–) – 0.3 | (V+) + 0.3 | V |
| Output short-circuit(3) | Continuous | ||
| Operating temperature, TA | –40 | 150 | °C |
| Junction temperature, TJ | 150 | °C | |
| Storage temperature, Tstg | –65 | 150 | °C |
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
