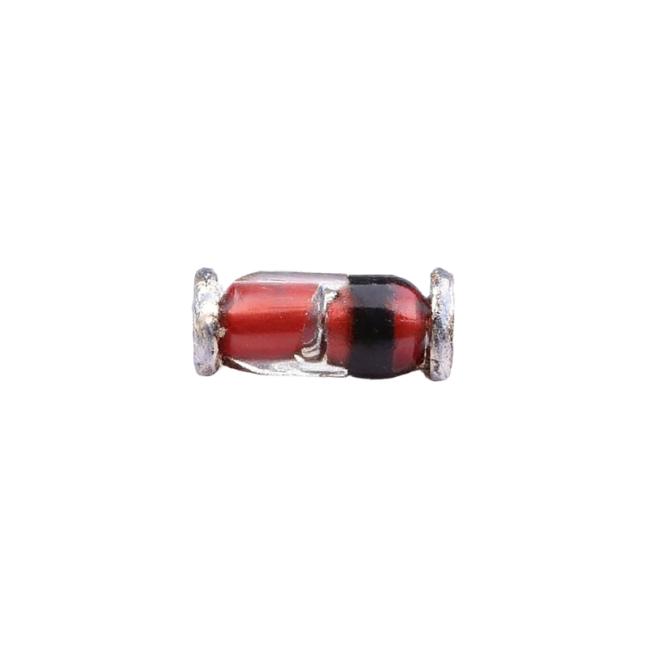

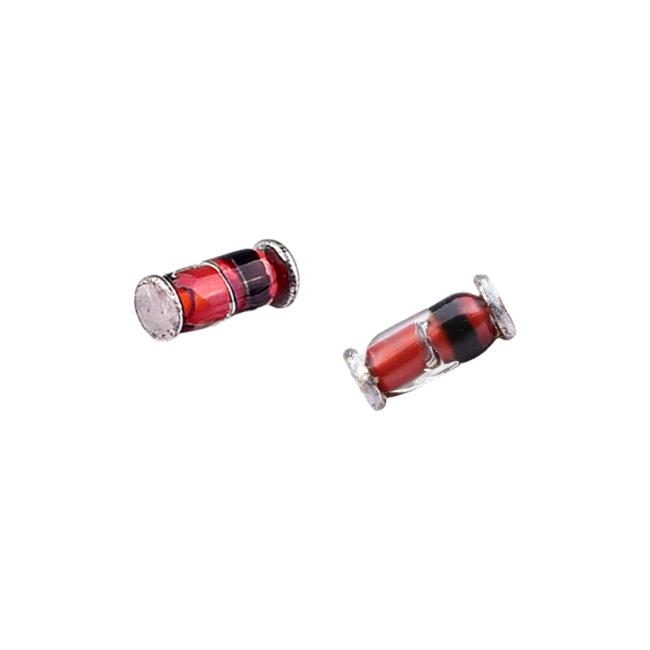

LL4148 Small Signal Switching Diode with 75V Peak Reverse Voltage 200mA Forward Current and 4 ns Recovery Time
Fast switching diode in MiniMELF case especially suitedfor automatic surface mounting
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Peak Reverse Voltage | VRM | 100 | V |
| Reverse Voltage | VR | 75 | V |
| Average Rectified Forward Current | IF(AV) | 200 | mA |
| Non-repetitive Peak Forward Surge Current at t = 1 s | IFSM | 0.5 | A |
| Non-repetitive Peak Forward Surge Current at t = 1 ms | IFSM | 1 | A |
| Non-repetitive Peak Forward Surge Current at t = 1 μs | IFSM | 4 | A |
| Power Dissipation | Ptot | 500 1) | mW |
| Junction Temperature | Tj | 175 | °C |
| Storage Temperature Range | Tstg | - 65 to + 175 | °C |
1) Valid provided that electrodes are kept at ambient temperature.
