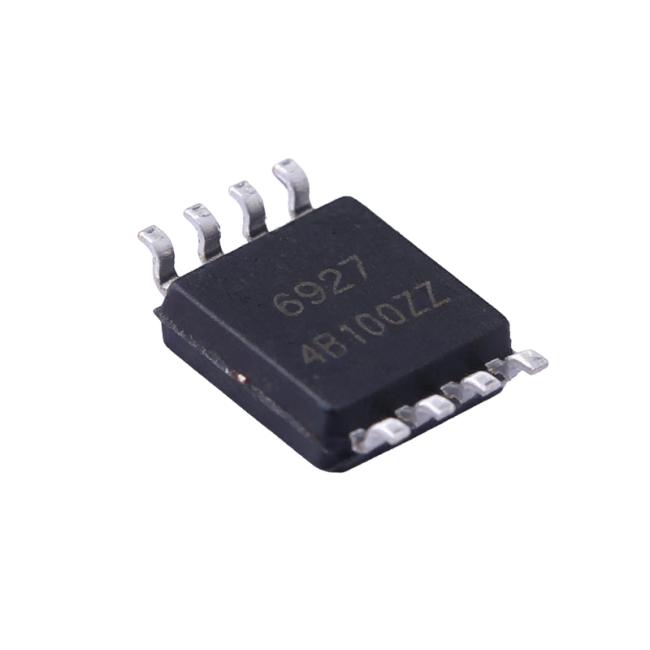

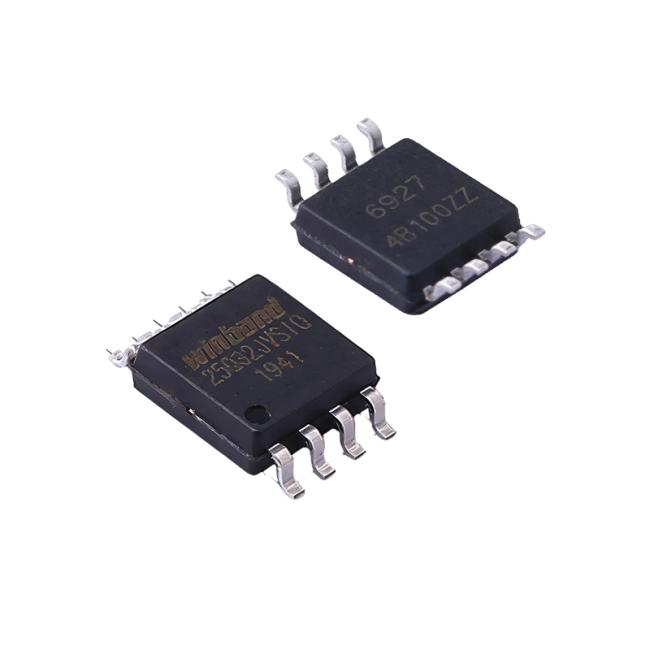

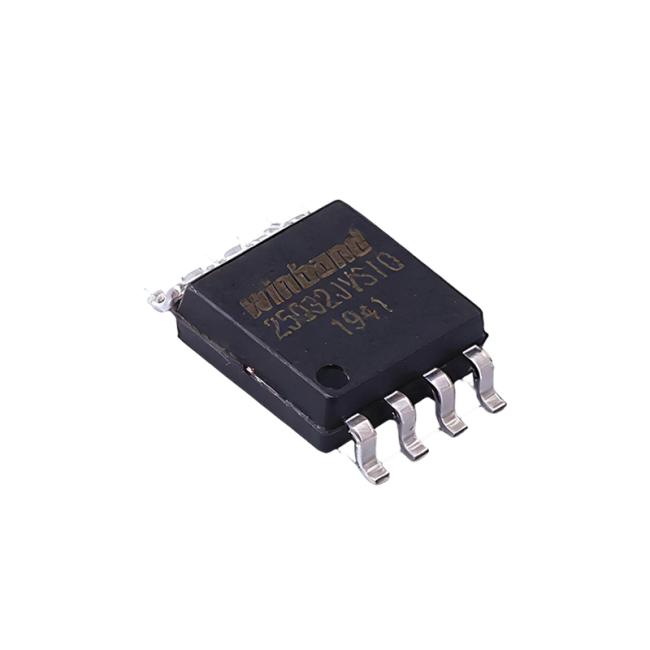

W25Q32JVSSIQ 32M-bit NOR Flash SpiFlash with 133MHz SPI Interface and 4Kb Uniform Sector
- New Family of SpiFlash Memories
- W25Q32JV: 32M-bit / 4M-byte
- Standard SPI: CLK, /CS, DI, DO
- Dual SPI: CLK, /CS, IO0, IO1,
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- Software & Hardware Reset(1)
- Highest Performance Serial Flash
- 133MHz Single, Dual/Quad SPI clocks
- 266/532MHz equivalent Dual/Quad SPI
- 66MB/S continuous data transfer rate
- Min. 100K Program-Erase cycles per sector
- More than 20-year data retention
- Efficient “Continuous Read"
- Continuous Read with 8/16/32/64-Byte Wrap
- As few as 8 clocks to address memory
- Allows true XIP (execute in place) operation
- Outperforms X16 Parallel Flash
- Low Power, Wide Temperature Range
- Single 2.7V to 3.6V supply
- <1µA Power-down (typ.)
- -40°C to +85°C operating range
- -40°C to +105°C operating range
| PIN NO. | PIN NAME | I/O | FUNCTION |
|---|---|---|---|
| 1 | /HOLD or/RESET (IO3) | I/O | Hold or Reset Input (Data Input Output 3)(2) |
| 2 | VCC | Power Supply | |
| 3 | /RESET | I | Reset Input(3) |
| 4 | N/C | No Connect | |
| 5 | N/C | No Connect | |
| 6 | N/C | No Connect | |
| 7 | /CS | I | Chip Select Input |
| 8 | DO (IO1) | I/O | Data Output (Data Input Output 1)(1) |
| 9 | /WP (IO2) | I/O | Write Protect Input (Data Input Output 2)(2) |
| 10 | GND | Ground | |
| 11 | N/C | No Connect | |
| 12 | N/C | No Connect | |
| 13 | N/C | No Connect | |
| 14 | N/C | No Connect | |
| 15 | DI (IO0) | I/O | Data Input (Data Input Output 0)(1) |
| 16 | CLK | I | Serial Clock Inpu |
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
