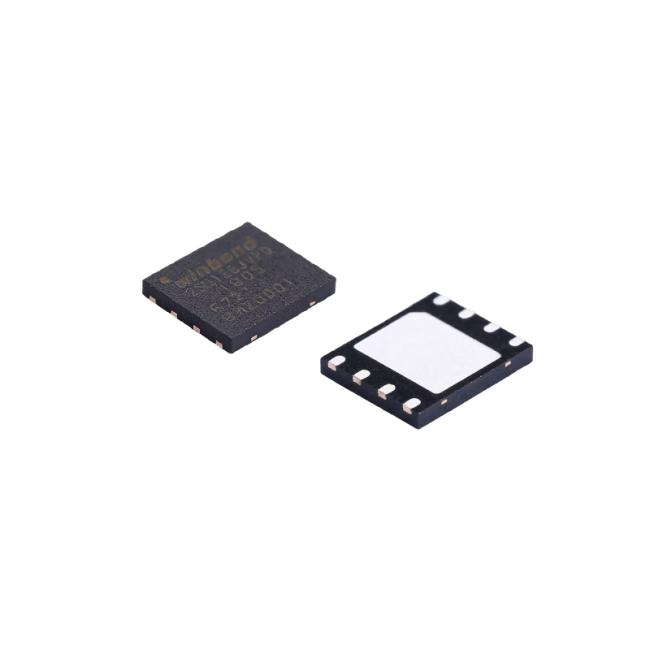

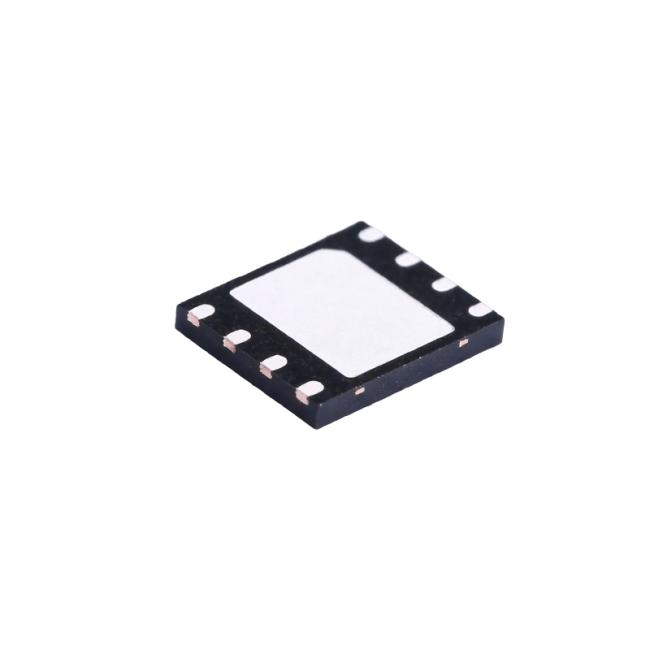

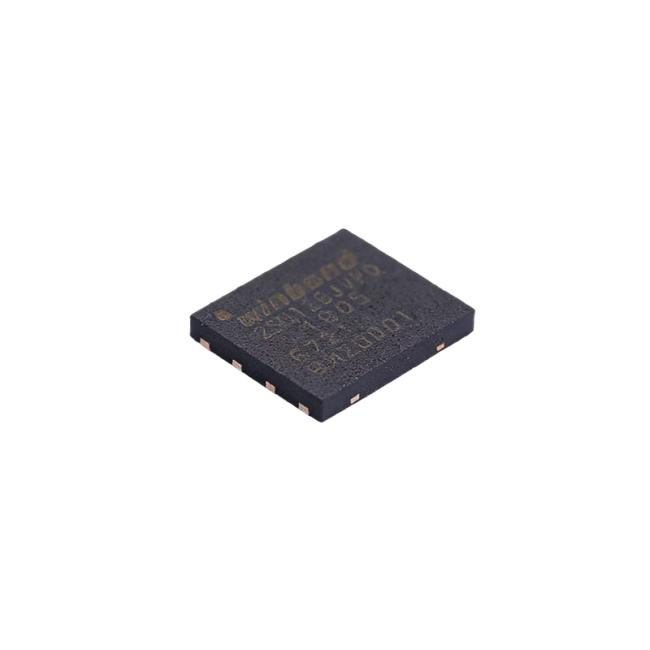

W25Q128JVPIQ NOR Flash SpiFlash 128M-bit 133MHz 3V Serial Flash with 4Kb Uniform Sector
-
New Family of SpiFlash Memories
- W25Q128JV: 128M-bit / 16M-byte
- Standard SPI: CLK, /CS, DI, DO
- Dual SPI: CLK, /CS, IO0, IO1
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- Software & Hardware Reset(1)
-
Highest Performance Serial Flash
- 133MHz Single, Dual/Quad SPI clocks
- 266/532MHz equivalent Dual/Quad SPI
- 66MB/S continuous data transfer rate
- Min. 100K Program-Erase cycles per sector
- More than 20-year data retention
-
Efficient “Continuous Read"
- Continuous Read with 8/16/32/64-Byte Wrap
- As few as 8 clocks to address memory
- Allows true XIP (execute in place) operation
-
Low Power, Wide Temperature Range
- Single 2.7 to 3.6V supply
- <1µA Power-down (typ.)
- -40°C to +85°C operating range
- -40°C to +105°C operating range
| PAD NO. | PAD NAME | I/O FUNCTION |
|---|---|---|
| 1 | /CS | I Chip Select Input |
| 2 | DO (IO1) | I/O Data Output (Data Input Output 1)(1) |
| 3 | /WP (IO2) | I/O Write Protect Input ( Data Input Output 2)(2) |
| 4 | GND | Ground |
| 5 | DI (IO0) | I/O Data Input (Data Input Output 0)(1) |
| 6 | CLK | I Serial Clock Input |
| 7 | /HOLD or /RESET(IO3) | I/O Hold or Reset Input (Data Input Output 3)(2) |
| 8 | VCC | Power Supply |
