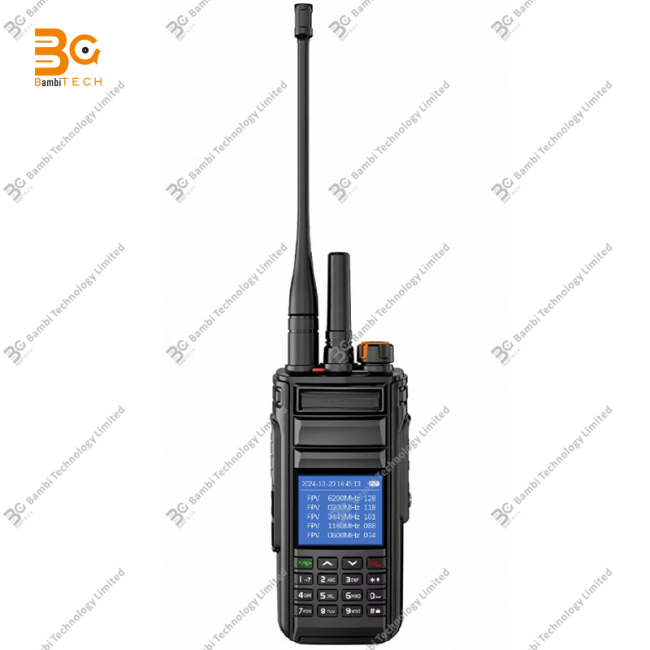

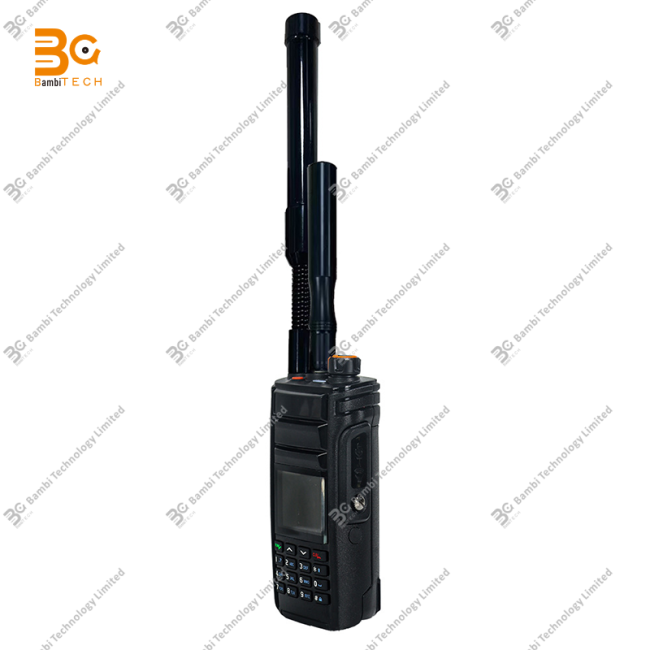

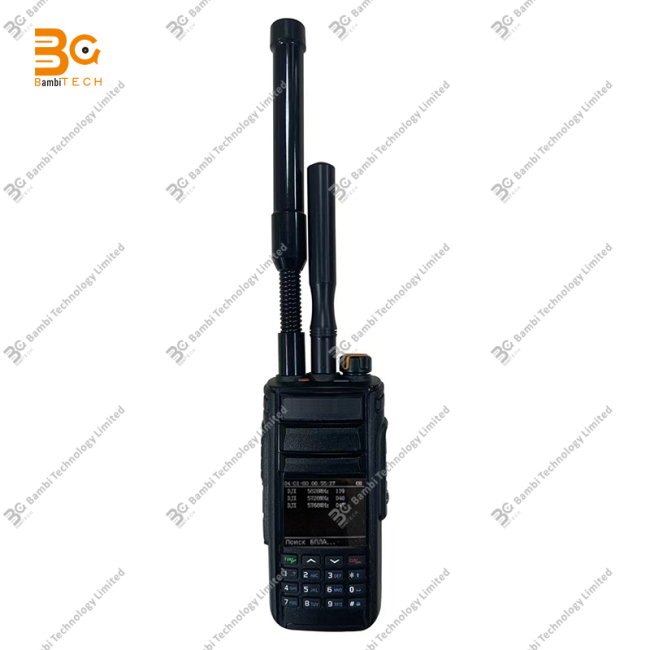

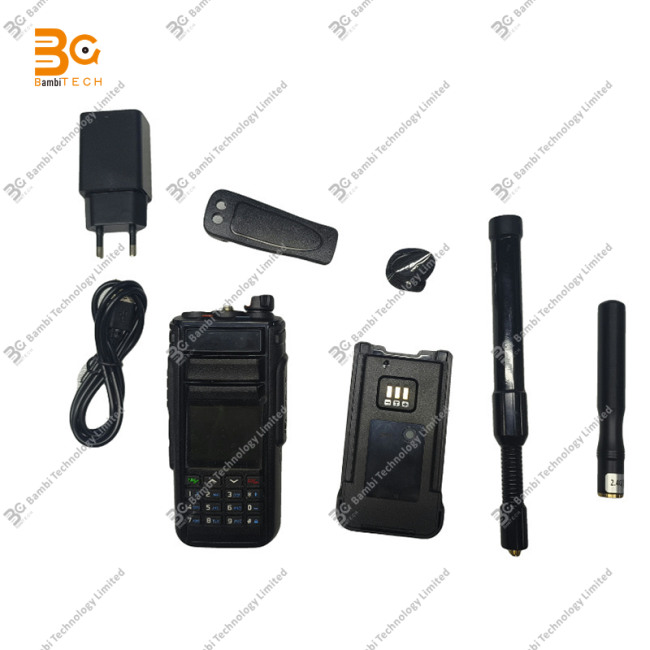

Handheld Portable FPV Drone DIY UAV Detector Drone Omni directional Detect finder with GPS and Bluetooth image
Price:
$500-550/pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Bambi
Product Description
Product Description
Intelligent portable drone detection system - accurate identification, full-area protection, low power consumption, and highly integrated design. FPV Drone Detector It can detect mainstream rotary-wing drones such as DJI and AUTEL that use OFDM high-definition image transmission, as well as various DIY intersections that use analog image transmission signals. It is also compatible with DIY drones and FPV drones that use analog image transmission. The device uses dual-antenna multi-channel collaborative scanning technology combined with an adaptive signal analysis engine. FPV Drone Detector uses dual antennas and multi-channel simultaneous scanning, and has the characteristics of fast detection speed, high detection sensitivity, long detection distance, low false alarm rate, strong scalability, and easy use.

Product Function
Passive Detection : Able to identify UAV such as DJI and AUTEL that use OFDM high-definition image transmission; Can detect FPV using analog image transmission within 300MHz-6200MHz. Sound and light alarm: headphone sound alarm, external sound and light alarm. Log recording: It has alarm log recording and can export alarm logs through USB interface. Headphone function: capable of obtaining alarm sound through headphones. Firmware upgrade function: Upgrade firmware through USB interface. Data transmission function: Real time alarm data of the drone can be obtained through the USB port. Multi language switching: supports English and Russian. Work status display: language, battery level Working modes: default mode, key frequency band scanning mode, user-defined feature library scanning mode. Custom detection: Users can modify, delete, or add detection drone feature libraries through the USB interface.


Technical Parameters
Receiving frequency range: | 300MHz-6200MHz |
Identification type: | OFDM high-definition image transmission signal, time traveling machine FM analog image transmission |
Detection distance: | ≥ 1km |
Detection sensitivity: | better than -96dBm |
Alarm detection methods: | headphones, sound and light |
Log recording | Supports no less than 500 alarm records |
Upgrade and data export interface: | Mirco USB |
Power supply | Removable lithium battery (type-c charging) |
Battery type: | 2400mA lithium battery |
Battery life: | ≥ 6 hours (single battery) |
Structural dimensions | ≤ 135mm × 60mm × 35mm (host without antenna) |
Net weight: | ≤ 500g (including single battery) |
Size: | 23*18*10cm |

Application
Detention centers and other places with special requirements: detention centers, such as units with high security requirements, to ensure low-altitude security;
