Industrial Use 4.3 Inch IPS TFT Display Screen 480x800 Resolution 250cd/M2 Luminance
High-performance 4.3-inch IPS TFT display screen designed for industrial control applications, featuring vertical orientation and superior viewing characteristics.
| Parameter | Specification |
|---|---|
| Application | Industrial Control |
| Number of pixels | 480*800 pixels |
| Active Area | 56.16*93.6mm |
| Module Outline | 60.36*102.5*1.47mm |
| Aspect Ratio | 16:9 |
| Display Mode | Normally Black |
| Viewing Angle (CR>10) | 80/80/80/80 (Typ) |
| Contrast Ratio | 1000 MIN, 1500 (Typ) |
| NTSC | 70% (Typ) |
| LCM Brightness | 250cd/m² (Typ) 500cd/m² (Typ) |
| Interface | SPI+RGB/MIPI |
| Operating Temperature | -20~+70℃ |
| Storage Temperature | -30~+80℃ |
- High-resolution 480×800 pixel IPS display
- Wide 80° viewing angle from all directions
- High contrast ratio up to 1500:1
- Dual brightness options: 250cd/m² or 500cd/m²
- Robust industrial temperature range operation
- Flexible SPI+RGB/MIPI interface options
ST7701SN TFT LCD Display Module, 4.3-Inch TFT LCD Display Module, IPS TFT LCD Portrait Display Module
Capacitive Touchscreen TFT LCD Display Module, 4.3-Inch MIPI/SPI+RGB Interface

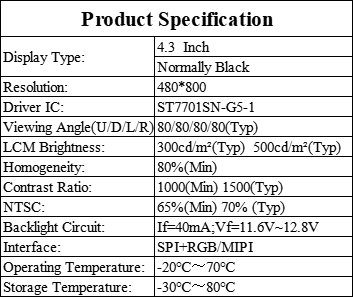

Product Quick Review
Model No.: JT-4.3IPSP
Resolution: 480 × 800 dots
Technology: IPS, wide viewing angles
Surface Brightness: 250 cd/m²
Driver IC: ST7701SN
Interface: SPI+RGB/MIPI
Touchscreen Type: Capacitive
Description
The JT-4.3IPSP is a 4.3-inch Portrait TFT-LCD display module with a resolution of 480 × 800 pixels and a brightness of 250 cd/m². It incorporates the ST7701SN controller IC and supports MIPI and SPI+RGB interfaces. The physical dimensions of the module are 60.36 mm (W) × 102.5 mm (H) × 1.47 mm (T), with an active display area measuring 56.16 mm (W) × 93.6 mm (H). The analog supply voltage range is 2.6V to 3.3V, with a typical operating voltage of 2.8V.
Featuring IPS technology, this display ensures clear and consistent visibility from wide viewing angles. The JT-4.3IPSP module supports an operating temperature range of -20°C to +70°C and can be stored within temperatures ranging from -30°C to +80°C.

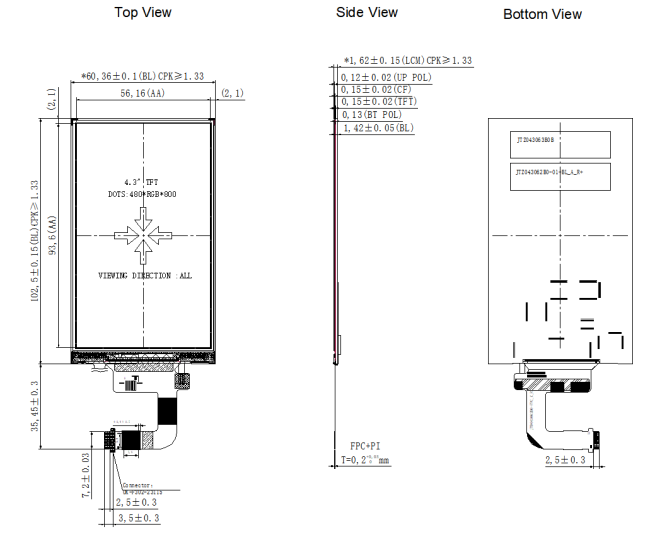

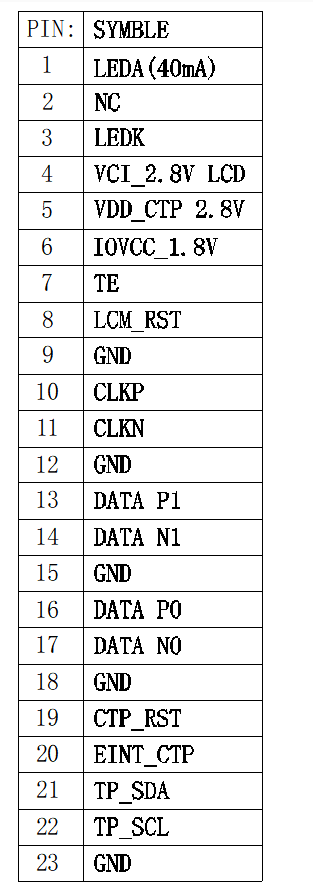

4.3 inch IPS 480*800 Portrait TFT Touch Display Module Drawing
Maximum Absolute Limite
|
Item |
Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT |
Test Condition |
Note |
| Supply Voltage | Vf | - | 16 | - | V | If=40 mA | - |
| Supply Current | If | - | 40 | - | mA | - | - |
| Reverse Voltage | Vr | - | - | 5 | V | - | |
| Power dissipation | Pd | - | - | - | mW | - | |
| Luminous Intensity for LCM |
- |
250 | - | Cd/m2 | If=40mA | - | |
| Uniformity for LCM | - | 80 | - | - | ％ | If=40 mA | - |
| Backlight Color | White | ||||||
