High-performance 15.6-inch industrial LCD display featuring Full HD resolution with IPS technology for superior viewing angles and color reproduction.

• Designed for demanding industrial control applications
• Wide operating temperature range for reliable performance
• High brightness options available for various lighting conditions
• IPS technology ensures consistent viewing angles

15.6-Inch Outdoor TFT LCD Display | 1000 Nits High Brightness | Full HD Resolution

Model: JT-15.6IPSFHD

The JT-15.6IPSFHD is a 15.6-inch CTP FHD TFT display module utilizing a silicon TFT active matrix. With a Full HD resolution of 1920×1080 pixels and a high brightness of 1000 nits, this display is engineered for optimal outdoor visibility.

Technical Specifications

Display Type: 15.6-inch color active matrix TFT LCD

Resolution: 1920×1080 pixels (Full HD)

Brightness: 1000 nits

Interface: LVDS

Supply Voltage: +3.3 VDC

Viewing Angle: Wide viewing angle in all directions

Backlight: LED

Compliance: RoHS, Halogen-free, TEO 6.0, ES6.0

Additional Features: Gamma correction, DE only mode

Key Features

High luminance and contrast ratio with low reflection

High-speed response capability

Optimized for multimedia applications

Suitable for demanding outdoor environments

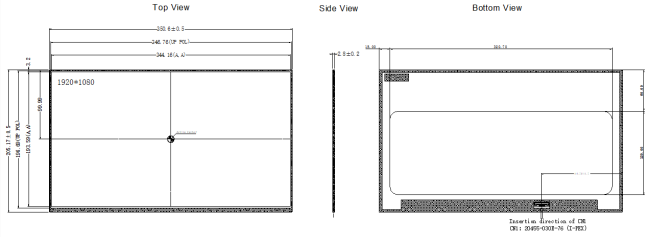

15.6 inch IPS FHD 1920*1080 TFT LCD Display Product Drawing

This display module combines high brightness with excellent image quality, making it ideal for outdoor applications requiring reliable performance in various lighting conditions.
