Capacitive Touch Panel 2.8 Inch IPS TFT LCD Display 240x320 For Industrial Control
- High-quality IPS panel with full viewing angle
- Multiple brightness options: 250cd/m², 500cd/m², 700cd/m²
- Versatile interface support: MCU, SPI, RGB
- Capacitive touch panel (CTP) with I2C interface
- Compact module size: 48.7*68.85*2.07mm
| Attribute | Value |
|---|---|
| Resolution | 240*320 pixels |
| Display Mode | IPS Full Viewing Angle |
| Luminance | 250cd/m² (Typ), 500cd/m² (Typ), 700cd/m² (Typ) |
| Interface | MCU/SPI/RGB |
| Touch Screen | CTP (Capacitive Touch Panel) |
| CTP Interface | I2C |
| CTP Structure | GF/GFF |
| Application | Industrial Control |
| Active Area | 43.2*57.6mm |
| Aspect Ratio | 4:3 |
| Display Mode | Normally Black |
| Viewing Angle (CR>10) | 80/80/80/80 (Typ) |
| Contrast Ratio | 1000 (MIN), 1200 (Typ) |
| NTSC | 70% (Typ) |
| Operating Temperature | -30℃ to +80℃ |
| Storage Temperature | -30℃ to +85℃ |
2.8-Inch TFT LCD Screen, 240×320 IPS Type, SPI/RGB/MCU Serial Interface LCD Module
2.8-Inch TFT Screen
DESCRIPTION
The JT-2.8IPS is a 2.8-inch TFT-LCD module designed for portrait mode operation, featuring a resolution of 240 × 320 pixels. This LCD module incorporates the ST7789 driver IC and supports an SPI/MIPI/RGB/MCU interface. Its operating voltage (Vdd) ranges from 2.6V to 3.3V, with a typical value of 2.8V. The module has a 12 o’clock viewing direction and a contrast ratio 1000MIN, 1200 (Typ).
With a typical brightness of 250 nits, the JT-2.8IPSTW is a portrait-mode TFT-LCD suited for various applications. It can operate at temperatures from -20 °C to +70 °C, while its storage temperature range is from -30 °C to +80 °C.

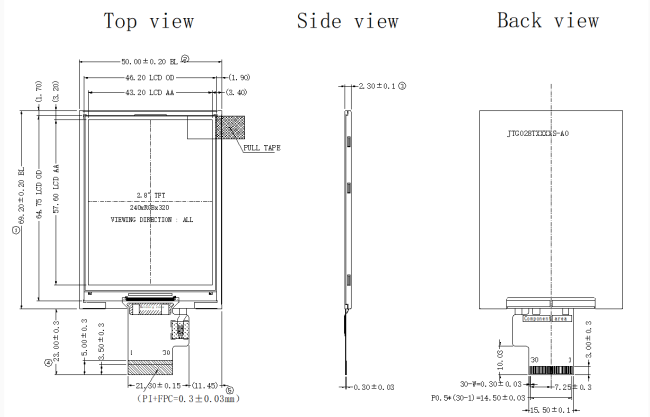

2.8 inch IPS TFT Touch Display Module Drawing
