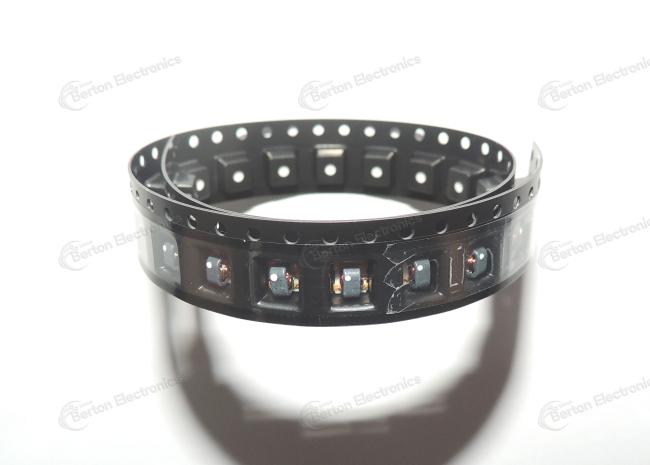

TC1-1TG2+ RF Balun Transformer 400kHz-500MHz 50 / 50Ohm 6-SMD
Price:
3.5usd
MOQ:
1
Delivery Time:
Negotiable
Product Description

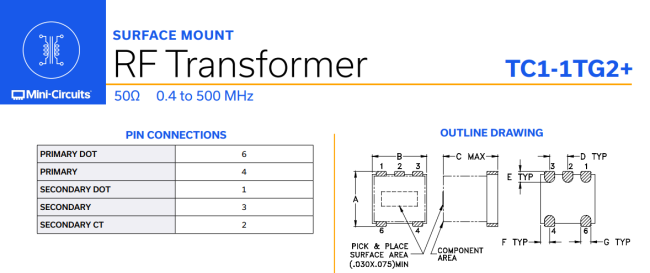

TC1-1TG2+ Balun Transformer
| Manufacturer | Mini-Circuits |
|---|---|
| Part Number | TC1-1TG2+ |
| Description | RF Balun 400kHz ~ 500MHz 50 / 50Ohm 6-SMD (5 Leads), Flat Lead |
Product Overview
TC1-1TG2+ is a high-performance balun transformer produced by Mini-Circuits, designed for RF applications with excellent signal integrity characteristics.
Key Features
- Frequency Range: 0.4 MHz to 500 MHz coverage for diverse RF signals
- Signal Stability: ±0.02 to 1.26 dB amplitude balance and 0.01 to 7.50° phase balance
- Low Insertion Loss: Only 0.32 to 1.84 dB for efficient signal transmission
- Current Capacity: Handles up to 30 mA for small-signal circuits
- Impedance Matching: 50Ω impedance with 1:1 ratio minimizes signal reflection
- Compact Design: Surface-mount packaging for high-density integration
Applications
- RF Circuit Conversion: Differential-to-single-ended or single-ended-to-differential conversion in radar and filtering circuits
- Communication Systems: Signal conversion and matching in base stations and wireless networks
- Test Equipment: Signal adjustment in generators, analyzers, and network measurement devices
