AD9214BRSZ-105 10bit Analog To Digital Converter 28-SSOP ADI ADC
Price:
2.5usd
MOQ:
1
Delivery Time:
Negotiable
Product Description

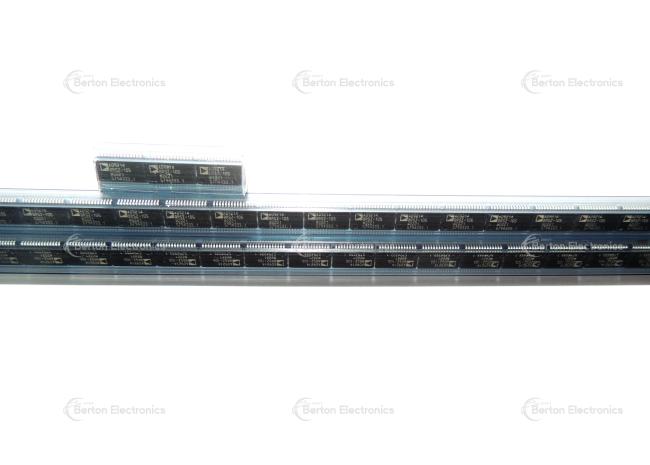

AD9214BRSZ-105 10-bit Single-Chip Sampling ADC
| Manufacturer | Analog Devices Inc |
|---|---|
| Part Number | AD9214BRSZ-105 |
| Description | 10 Bit Analog to Digital Converter 1 Input 1 Pipelined 28-SSOP |
Product Overview
AD9214BRSZ-105 is a 10-bit single-chip sampling analog to digital converter (ADC) by Analog Devices Inc, featuring high-speed conversion and low power consumption.
Key Features
- High-speed Conversion: 10-bit resolution with conversion rate up to 105 MSPS
- Low Power Consumption: 190 mW at 65 MSPS, 285 mW at 105 MSPS, 30 mW in power-down mode
- Wide Analog Input Range: 1 V p-p or 2 V p-p through gain option
- High-frequency Signal Acquisition: 300 MHz analog bandwidth
- Built-in Reference Voltage and Track-and-Hold Function: Simplifies external circuit design
- TTL/CMOS-compatible Output: Supports 3.3V or 2.5V logic interfaces
- Two Data Format Options: Offset binary or two's complement binary
- Wide Supply Voltage Range: 2.7V to 3.6V operation
Applications
Battery-powered Instruments: Portable measurement equipment with extended battery life
Hand-held Oscilloscopes: For on-site testing and maintenance scenarios
Low-cost Digital Oscilloscopes: Educational and R&D environments
Ultrasonic Equipment: Medical imaging technology applications
Cable Television: Reverse path transmission for two-way communication
Broadband Wireless Communication: High-speed data transmission systems
Residential Power Line Networks: Home automation control systems
