Dongfeng 6 Wheels 1 Ton Fire Fighter Vehicle Water Tank Fire Fighting Truck

Price Negotiable
Price: 15000-35000 per unit
MOQ: 1
Delivery Time: 65 working days after deposit
Brand: CLW
Product Description
Dongfeng 6 Wheels 1 Ton Factory Price New Water Tank Fire Fighting Truck

Dongfeng 6 Wheels 1 Ton Fire Fighter Vehicle Water Tank Fire Fighting Truck," is a model that falls into the category of a Mini or Light Fire Fighting Truck.

While a "1 ton" designation often refers to the payload capacity of a small commercial truck, in the context of fire trucks, the capacity is typically measured in liters (L) or metric tons (tonnes) of water. The closest and most common model matching your description is a Dongfeng 1,000 Liter (1 Tonne) Water Tank Fire Truck built on a light-duty Dongfeng chassis.

Dongfeng 6 Wheels Mini Water Tanker Fire Fighting Truck For Sale Technical date:
Key Specifications (Approximate)
Component Detail
Chassis Dongfeng (various light-duty models like EQ1040)
Drive Type 4x2 (6 wheels, 4 driving wheels—though small trucks often have 4 wheels with a dual rear axle to make 6 total)
Water Tank Capacity 1,000 Liters (1 Tonne) or close variations (e.g., 2,000L/2 Tonnes)
Water Tank Material High-quality Carbon Steel (often with anti-corrosion treatment), or optional Stainless Steel/PP
Cab Type Double-row, four-door passenger compartment (allows for 4-6 crew members)
Engine Diesel engine (e.g., in the 100-130 horsepower range)
G.V.W. (Gross Vehicle Weight) Approximately 4,000 kg to 6,600 kg (4 to 6.6 tonnes)
Max Speed Approx. 90 km/h to 100 km/h

Fire Fighting Capabilities
Component Specification
Fire Pump Model CB10/20 (Normal Pressure Pump) or similar
Fire Pump Flow Rate Typically 20 L/s at 1.0 MPa
Fire Monitor (Water Cannon) Model PS20 or similar
Water Jet Range ≥45 meters
Suction Depth ≥7 meters
Piping System Equipped with a sandwich Power Take-Off (PTO), full pipeline system, inlets, and outlets.
Model Parameters others
Overall Dimension 7660×2500×3460
GVW 15560kg
Engine Model Dongfeng
Engine Power 177kW
Wheelbase 4500mm
Driving Type 4X2
Max.speed 90km/h
Emission Standard 7790 ml Euro2
Passengers 1+1+4
Fire pump rated flow 60L/S@1.0Mpa;30L/S@2.0Mpa Vacuum pump
water monitor rated flow 48-64L/s Adjustable
Water monitor range Water range≥60m,foam≥55m
Approach angle ≥16°
Departure angle ≥23°
Item Parameters Parameters others
1 Water tank capacity water 3000 Built-in type

Foam tank capacity foam 2000
2 Fire pump model CB20·10/30·60 Shanghai rongshen
3 Fire pump performance condition Pressure1:1.0Mpa flow:60L/S
Pressure2:2.0Mpa flow:30L/S
Use vacuum pump to priming water
4 the installation site of fire pump rear
5 The quantity of fire pump water outlet 6
6 Pressure gauge 0-1.6 Mpa, 0-2.5 MPa 2.6 level
7 Vacuum gauge -0.1- -1 MPa 2.6 level
8 Water monitor
(PL48-64YZ)
water Flow:
48- 64L/S
Range:60m Shandong zhangqiu
foam Range:55m
Depression/Elevation angle -30-+70°
Turning angle 360°
9 PTO Model YTQ590K type full power sandwich , pneumatic
Dongfeng 6 Wheels 1 Ton Factory Price New Water Tank Fire Fighting Truck produce details :

The Dongfeng "6 Wheels 1 Ton" Fire Fighting Truck is a compact, customized vehicle, typically with a 1,000 Liter (1 Ton) water capacity, built on a light-duty Dongfeng commercial chassis.

The "6 wheels" refers to the dual rear tires on a single axle, making it a standard 4x2 drive configuration but with six total tires/wheels.

Here are the detailed production and technical specifics for this type of vehicle, often designated with a model number like EQ1040D16DC for the chassis.

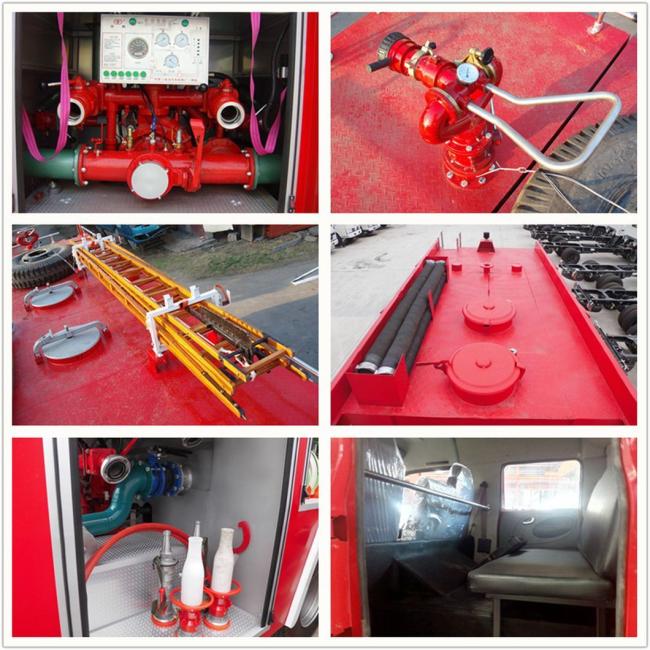

Dongfeng 6 Wheels 1 Ton Factory Price New Water Tank Fire Fighting Truck
Dongfeng 6 Wheels 1 Ton Fire Fighter Vehicle Water Tank Fire Fighting Truck Application:

The Dongfeng 6-Wheel 1-Ton Fire Fighter Vehicle with a water tank (often categorized as a light or mini fire truck with a 1,000-liter capacity) is primarily designed for rapid first response and operations in environments where larger fire trucks have difficulty maneuvering.

Its key applications include:

  • Urban/Residential Areas with Narrow Streets: Its compact size and maneuverability make it ideal for navigating tight city streets, alleys, and older residential districts where standard, larger fire engines cannot easily reach.
  • Community and Village Fire Brigades: It serves as an excellent, cost-effective initial response vehicle for smaller, local fire departments in suburban, rural, or remote communities.
  • Industrial and Commercial Facilities: It is used for quick intervention at:
    • Factories
    • Warehouses
    • Large-scale complexes
    • Petroleum facilities (for initial containment)
  • Quick Intervention Zones: Places that require a very fast response time to suppress small-to-medium-scale fires immediately, such as:
    • Marketplaces
    • Shopping centers
    • Public parks
  • Initial Firefighting Efforts: The 1-ton (1,000-liter) water capacity is sufficient for initial containment and knocking down small fires, buying valuable time until larger equipment or water supply is established.
  • Supplementary Water Supply: In certain scenarios, it can be used to provide a supplementary water source or support to other firefighting units.
About Chengli Special Automobile Co., Ltd

Chengli Special Automobile Co., Ltd. is a major, large-scale manufacturer in China's special-purpose vehicle industry. It is a core enterprise of the CLW Group and is recognized as one of the top private enterprises in China.

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Chengli Special Automobile Co., Ltd Overseas Market

Chengli Special Automobile Co., Ltd. has a significant and expanding presence in the global special vehicle market, with its products exported to a large number of countries across multiple continents. The company actively seeks to align with international development initiatives, such as the "Belt and Road" construction.

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.
