Shacman L3000 Suction Sewage Truck Vacuum Fecal Septic Tank Truck

Shacman L3000 Suction Sewage Truck (also referred to as a Vacuum Fecal or Septic Tank Truck) is a versatile medium-sized sanitation vehicle built on the reliable Shacman L3000 chassis. It is primarily used for the collection, transfer, and discharge of liquid waste, sludge, septic, and fecal matter from septic tanks, sewers, catch basins, and industrial sumps.

Shacman L3000 Sewage Suction Truck is designed for efficient waste removal, particularly sewage, fecal matter, and septic tank cleaning. It integrates a vacuum system for suction and a high-pressure system for cleaning and flushing. These trucks are commonly used in municipal waste management, septic tank cleaning, and industrial waste management.

• Reliable Performance: The engine and chassis provide excellent durability, even in demanding conditions.
• Efficient Waste Removal: The combination of high-pressure water jetting and powerful vacuum suction makes these trucks highly effective for sewage, fecal, and industrial waste removal.
• Versatility: These trucks can be used in a variety of applications, making them a good choice for municipalities, industrial sites, and emergency waste management operations.
• Cost-Effective: Compared to other brands, Shacman trucks offer a good balance of affordability and functionality.

Shacman L3000 Suction Sewage Truck (also known as a Vacuum Fecal Septic Tank Truck) is a medium-sized specialized sanitation vehicle built on the robust Shacman L3000 chassis. It is designed for efficient collection, transfer, and discharge of liquid and semi-liquid waste such as sewage, sludge, and crude oil

• Chassis Model: Shacman L3000 Series (often a 4x2 or 6x4 configuration).
• Engine Options: Typically matches Weichai (WP) or Cummins (ISD) engines, with a horsepower range often between 210 HP and 300 HP, depending on the model and emission standard (e.g., Euro III to Euro V).
• Transmission: Usually a manual transmission (e.g., FAST gearbox with 8, 9, or 10 speeds) or an optional automatic (e.g., Allison).
• Gross Vehicle Weight (GVW): Typically in the range of 16,000 kg to 19,000 kg for a 4x2 model.
• Features: Known for a lightweight design, good maneuverability, and a comfortable, safe cab that often incorporates German MAN TGS technology.

Tank Body (Upper Structure) Details

• Tank Volume: Commonly ranges from 6,000 Liters (6 m³) to 12,000 Liters (12 m³) or more, depending on the chassis and configuration.
• Tank Material: Usually high-quality carbon steel (e.g., Q235), with a thickness often around 5mm for the tank body. Stainless steel is sometimes optional.
• Tank Design: Cylindrical shape, designed to withstand vacuum pressure.
• Discharge Method: The tank is typically a hydraulically tipping/dumping type, allowing the tank to be raised to an angle (e.g., ≥45∘ or 50∘) for a more complete gravity discharge. The rear door is fully openable and secured with hydraulic locks.
• Safety Features: Includes overflow protection (often an ultrasonic water level sensor) and a safety valve to prevent damage to the vacuum pump from overfilling or excessive pressure/vacuum.
• Indicators: Equipped with sight glasses at the top and bottom of the tank to monitor the liquid level.

Suction System Details

• Vacuum Pump: A crucial component, often a reputable Chinese brand or an imported European brand like Jurop, Battioni Pagani, or Moro Kaiser. Common types are Rotary Vane or Liquid Ring vacuum pumps.
• Maximum Vacuum Pressure: Typically capable of achieving a high vacuum, often ≥90% (or −0.97 bar).
• Maximum Suction Depth (Lift): Generally, the system can achieve a vertical suction depth of at least 6 to 9 meters (≥9 m).
• Suction Time (Full Tank): A fast working speed is a key feature, with the time to fully fill a tank (e.g., 10,000 L) often around 5 to 10 minutes or less.

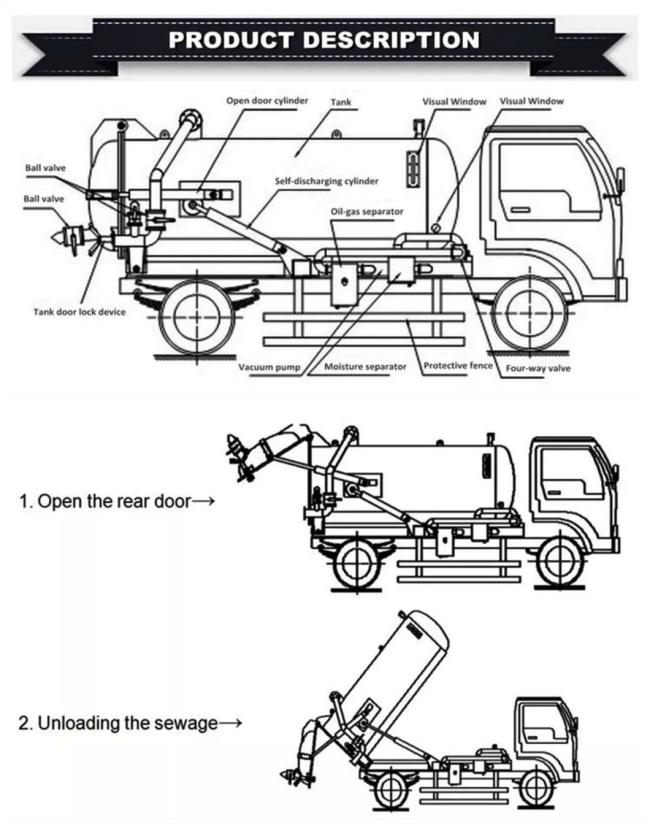

Working Principle:

• Suction: The vacuum pump evacuates the air from the sealed tank, creating a strong negative pressure (vacuum). Atmospheric pressure then pushes the sewage/sludge through the suction hose and into the tank.
• Discharge: A four-way valve is used to reverse the air flow, allowing the pump to pressurize the tank. The compressed air forces the liquid out through the discharge port. Alternatively, the tank is hydraulically tipped for gravity discharge.

• Hose & Connection: Comes with suction hoses (e.g., 3m to 7m length, 100mm diameter) and hose racks on the sides of the tank. The system includes a four-way change valve for switching between suction and discharge modes.

Established: September 2004 (The predecessor, Chengli Special Automobile Co., Ltd., was founded in this year).

Headquarters/Location: Suizhou City, Hubei Province, China ("The Capital of China's Special Purpose Vehicles").

Business Scope: The company is a diversified group that integrates R&D, manufacturing, sales, and service for complete vehicles, special purpose vehicles, new energy vehicles, and automotive parts.

Scale: It is one of China's largest specialized automobile manufacturers, covering a large industrial area, with thousands of employees and an annual production capacity of up to 100,000 special vehicles. The CLW Group is often ranked among the Top 500 Chinese Private Enterprises.

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Global Reach

Chengli actively exports its vehicles to over 80 countries and regions worldwide. Its main export markets are concentrated in:

• Africa: A major focus area, including countries like Nigeria, Ghana, Tanzania, Kenya, Uganda, Algeria, Congo, Mali, Senegal, and South Africa.
• Southeast Asia: Philippines, Vietnam, Cambodia, Myanmar, Laos, Thailand, Malaysia, and Singapore.
• Central Asia/Middle East: Russia, Mongolia, Kazakhstan, Uzbekistan, Pakistan, and various Middle Eastern countries.
• South America: Countries such as Chile, Peru, Bolivia, Panama, and Venezuela.
• Oceania and Europe: Exports also reach countries like Australia and New Zealand, and there is a focus on expanding into the European market, often through collaborations or by ensuring products meet specific international standards like ASME and ADR (for pressure vessels).

2. Export Products and Success Stories

The company exports nearly all of its main product categories, with high demand for:

• Sanitation Vehicles: Garbage Compactor Trucks, Sewage Suction Trucks, and Water Sprinkler Trucks.
• Tankers: Fuel Tankers and LPG Tanker Trucks/Trailers.
• Utility & Construction: Truck Mounted Cranes, Wrecker Tow Trucks, and Aerial Work Platforms.

Notable Export Activities:

• Chengli has secured large-volume orders, such as 100 units of water trucks exported to Venezuela.
• The company actively participates in international industry events and expos, such as the LPG Summit in Tanzania and ITIF Asia in Pakistan, to market its products and secure new contracts.

3. Strategy for International Business

• Customization: Chengli offers customization services to meet specific local requirements, such as producing both Left-Hand Drive (LHD) and Right-Hand Drive (RHD) vehicles, which is crucial for markets in Africa, Southeast Asia, and Oceania.
• International Certifications: To ensure market acceptance, the company obtains relevant global quality and safety certifications, including ISO 9001, ISO 14001, ISO 45001, and certifications specific to pressure vessels like ASME.
• After-Sales Support: Chengli provides comprehensive support to its overseas clients, which typically includes:
• English operation videos and documentation.
• Free operation and technical training at their factory.
• Supply of spare parts at factory prices.
• Offering to send engineers to the customer's country for local technical support and training.

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
