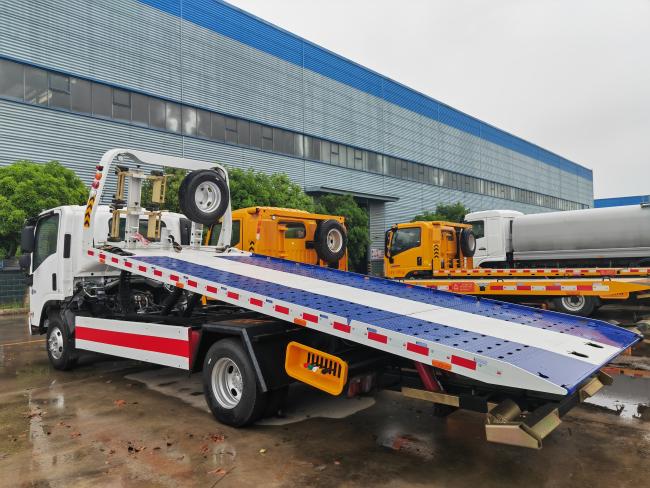

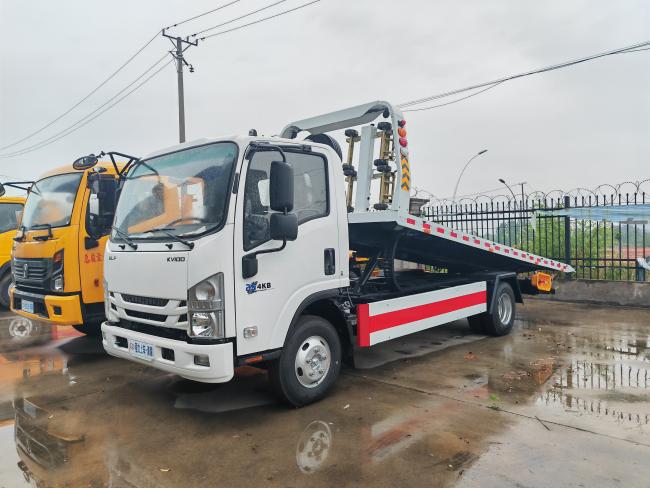

ISUZU 4x2 Flatbed Wrecker Truck 3-5 Ton Rollback Tow Truck
This ISUZU KV100 flatbed wrecker truck (also known as a tow truck or recovery vehicle) is the perfect solution for road emergency rescue, city traffic management, and vehicle transportation. Built on the world-renowned ISUZU ELF chassis, it combines legendary reliability with powerful hydraulic performance.
Genuine ISUZU Excellence: Equipped with the world-famous ISUZU engine, known for extreme durability and fuel efficiency.
High-Strength Platform: Reinforced checkered plate with a specialized anti-skid treatment for safe vehicle loading.
One-Piece Hydraulic System: Imported or top-tier domestic hydraulic valves and cylinders to ensure smooth operation under heavy loads.
Dual Operation: Features both manual and remote control (optional) for efficient one-man operation.
Multi-functional Towing: Can handle both standard car towing on the bed and an extra vehicle via the rear under-lift.
World-Class ISUZU Chassis: Powered by the ISUZU 4KH1 engine, offering high torque, low fuel consumption, and an ultra-long service life.
Reinforced Flatbed: The platform is made of high-quality carbon steel with a checkered anti-slip surface, ensuring safe loading even in rainy or icy conditions.
Dual-Function Design: Capable of carrying one vehicle on the bed and towing a second vehicle using the rear under-lift system.
Professional Hydraulic System: Equipped with high-precision hydraulic cylinders and Italian-style multi-way valves for smooth, stutter-free operation.
Strong Winch Power: Includes a 4-ton hydraulic winch with a 25-meter steel cable, capable of pulling heavy SUVs and light commercial vehicles easily.
- 1x 4-Ton Hydraulic Winch
- 1x Set of Specialized Straps (4 units)
- 2x Auxiliary Wheels (for locked-wheel towing)
- 1x LED Warning Light Bar (Amber)
- L/R Side Toolboxes and Hand-washing Tank
- Excavator and Loader Transport: Moving small-to-medium excavators, skid-steer loaders, and forklifts between construction sites.
- Equipment Relocation: Transporting harvesting equipment, rollers, and other specialized non-road machinery.
- Road Rescue/Wrecker: The 4x2 flatbed chassis is also frequently modified for use as a rollback wrecker or recovery tow truck (for vehicles up to 9-8 tons).
| Items | Detailed Parameters |
| Chassis Brand | ISUZU KV100 (ELF Series) |
| Drive Type | 4x2 |
| Engine | ISUZU 4KH1 (Diesel, Turbocharged) |
| Horsepower | 120 HP / 130 HP |
| Transmission | 5-Speed Manual |
| Flatbed Size | 5,200 x 2,300 mm |
| Loading Capacity | 3,000 - 4,000 kg |
| Winch Capacity | 4,000 kg (Hydraulic) |
| Rear Under-lift | 2,000 kg Lifting Capacity |
| Tire | 7.00R16 Radial Tires |
