RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing
Price:
Negotiable
MOQ:
50 pieces
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description
RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | RJ45 Field-wirable Assembly Connector |
| Color | Silver |
| Contact nut material | Zinc alloy, nickel-plated |
| IP rate | IP20 |
| Pin assignment | 8 PIN |
| Transmission characteristics | Cat5e |
| Data rate | 10/100/1000 Mbit/s |
| Mating cycles | ≥10 |
An RJ45 field-wireable straight connector is a ruggedized, modular Ethernet connector designed for on-site cable termination in industrial and commercial networks. This connector type is particularly valuable in maintenance scenarios where cable replacement would cause excessive downtime. The straight design optimizes space in control panels while allowing easy access to termination points.
Technical Data
| Pin assignment | 8 PIN |
| Contact nut material | Zinc alloy, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | Zinc alloy, nickel-plated |
| Contact method | IDC |
| Degree of protection | IP20 |
| Transmission characteristics | Cat5e |
| Data rate | 10/100/1000 Mbit/s |
| Power transmission | POE, POE+ |
| Ambient temperature | -25~+85℃ |
| Mating cycles | ≥10 |

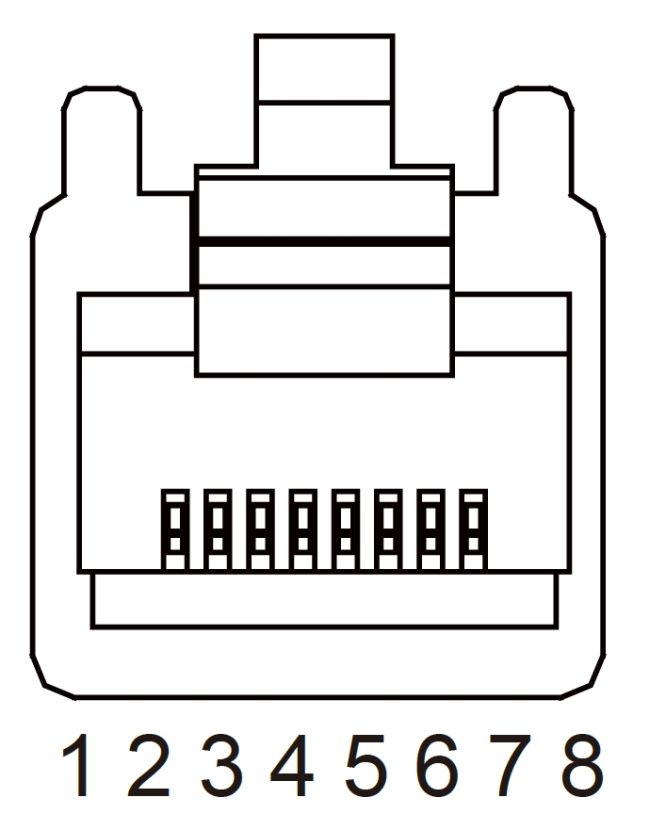

| Pin assignment | Type | Rated current | Voltage | Wire gauge | Cable outlet | Model No. |
|---|---|---|---|---|---|---|
 |
RJ45 | 1.5A | 45V | 0.14~0.34 mm² 26~22 AWG cable diameter: 6.5mm |
Straight | RJ45S/C80 |
