480W Power Supply AC DC 24V / 20A Industrial Din Rail Power Supply High Efficiency
The PRFT480-xxA46 Series is a three-phase DIN rail power supply offering high cost performance, efficiency, and reliability. With 150% power reserve, it supports DC motors, capacitive loads, and other heavy loads. Features excellent EMC performance and meets international standards including IEC/UL62368, EN61010, and UL508.
| Attribute | Value |
|---|---|
| Output Power | 480W |
| Nominal Output | 24V/20A |
| Output Voltage Range | 24-28V |
| Input Voltage | 400VAC-480VAC |
| Housing Material | Metal (AL5052, SPCC) |
| Cooling Method | Natural air cooling |
- Active PFC with PF > 0.95
- Operating temperature range: -30℃ to +70℃

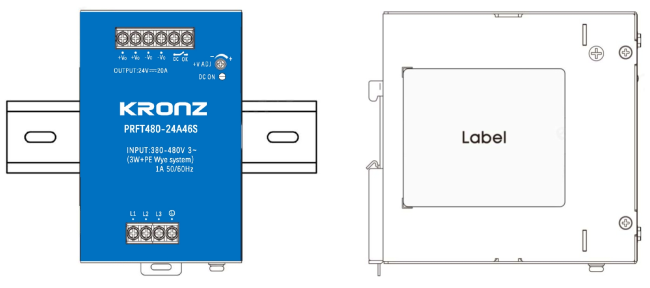

- DIN Rail installation
- High efficiency (up to 95%) and reliability
- Output LED indicator
- 150% peak power for 4.5 seconds
- Comprehensive protection: short circuit, over-current, over-voltage, over temperature
- Supports parallel and series connection
- Double-sided three-proof paint, anti-salt spray
- RS485 communication and remote shutdown capability
- Meets 5000m altitude application
- Complies with IEC/UL62368, EN61010, UL508 standards
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Input Voltage Range (AC) | 320 | - | 600 | VAC |
| Input Voltage Range (DC) | 450 | - | 800 | VDC |
| Input Current (400VAC) | - | - | 0.85 | A |
| Power Factor | 0.93 | 0.95 | - | - |
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Output Voltage Accuracy | - | ±1.0 | - | % |
| Ripple & Noise | - | - | 150 | mV |
| Over-voltage Protection | - | - | 33VDC | - |
| Dimensions | 124 × 41 × 110 mm |
| Weight | 1080g |
| Housing Material | Metal (AL5052, SPCC) |
| Cooling Method | Natural air convection |
Kronz is a manufacturing enterprise located in Guangzhou, specializing in industrial automation solutions. With years of innovation, we offer a complete range of industrial products including power supplies, sensors, connectors, and networking equipment. Our products meet international standards and are exported worldwide.
Manufactured in Guangdong, China.
Yes, CE certified.
5-8 working days for small quantities.
