IP67 M12 Y Distributor Connector Male 4 Pin To Female 4 Pin A Coded
Price:
Negotiable
MOQ:
50 pieces
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description
IP67 M12 Y Distributor Connector Male 4 Pin To Female 4 Pin A Coded
Product Attributes
| Attribute | Value |
|---|---|
| Type | Contact |
| Product name | Y-distributor Connectors |
| Color | Black |
| IP rate | IP67 |
| Endurance(shell) | >100 cycles |
| Contact resistance | ≤ 5mΩ |
| Ambient temperature | -25~+85℃ |
| Pin | 4 |
Product Description
The Y-Distributor M12 Industrial Connector is a robust solution designed for efficient data and power transmission in industrial environments. This product features standard M12 connector interfaces with 4-pin A coding, offering both male and female connectors to accommodate various connection needs.
Technical Parameters
| Standard | IEC 61076-2-101 |
|---|---|
| Contact nut material | Brass, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |
Technical Data

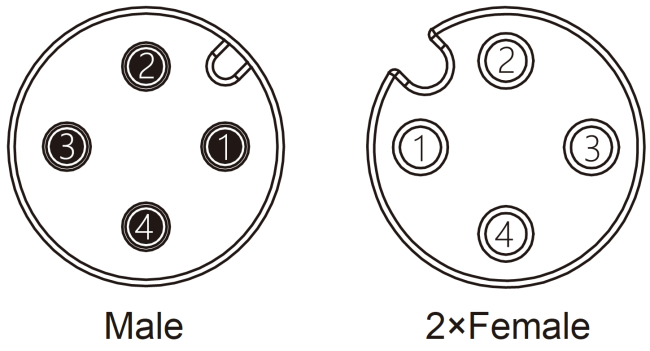

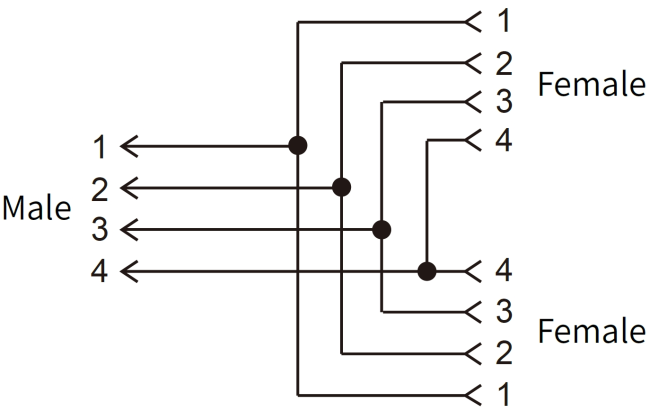

| Circuit diagram | Coding | Rated current | Voltage | Pin assignment | Model No. |
|---|---|---|---|---|---|
 |
A | 4A | 250V |  |
YM4-2F4/Y14A |
For more customization details, please consult relevant technical personnel.
