3.19 inch AMOLED display with oncell touch 262x928 resolution 30 pins MIPI 500 cd/M2
Price:
$24.6
MOQ:
1~500
Delivery Time:
4~6weeks
Brand:
HuaXin
Product Description
HX0323S001AM is 3.19 inch AMOLED Display Module , 262x928 Resolution, 30pins mipi,I2C Interface, brightness is 500 cd/M2 oled touch screen module,AMOLED screen driving IC is M690C0 and touch screen panel IC is ZT2628
Key Specifications
| Part NO. | HX0323S001AM | ||
| Display Technology | AMOLED | ||
| Diagonal Screen Size | 3.19 inch | ||
| Resolution | 262x928 | ||
| Viewing Angle | all | ||
| Operation Temperature | -20 ~ +70 ℃ | ||
| Active Area (mm) | 22.008X77.952mm | ||
| Panel size(mm) | 23.8x81.052*0.63mm | ||
| Brightness(cd/m2) | 500 cd/M2 | ||
| Interface | mipi,I2C | ||
| Pin q'ty | 30 pins | ||
| Contrast Ratio | 10000:1 | ||
| driving IC | M690C0,ZT2628 | ||
| touch panel | oncell touch | ||

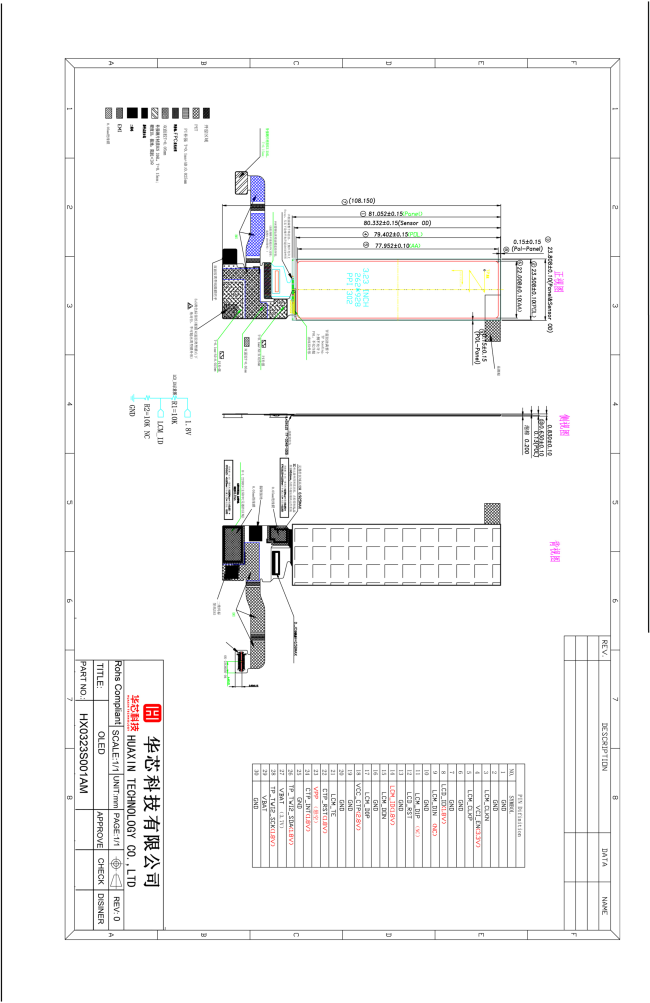

Technical Drawing
AMOLED vs. LCD/LED Displays Knowledge
• Power Consumption: AMOLED consumes power per pixel (dark pixels use less), while LCD requires constant backlight power.
•Content Dependency: AMOLED is more efficient for dark content as pixels can turn off completely.
•Brightness Control: AMOLED can adjust brightness per pixel, while LCD has fixed backlight brightness.
•Display Size: AMOLED is more efficient for smaller displays as power scales with pixel count.
Our advantage
Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs.
• Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)
• Certifications: ISO14001, ISO9001/IATF16949, SGS
- Cost-effective production base located in inland city
- Advanced equipment ensuring stable quality
- Highly automated processes for efficiency and consistency
- Experienced engineering team with 20+ years in LCD field
- Custom product design capabilities
Product Applications
- Smartphones and tablets
- Wearable devices (smartwatches)
- AR/VR headsets
- Television and monitors
- Automotive displays
- Medical equipment and smart home devices
