4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d
Price:
$27.3
MOQ:
1000
Delivery Time:
4~6weeks
Brand:
HuaXin
Product Description
4.3 Inch High Resolution High Brightness TFT Display 1920×1080 resolution with 50-pin LVDS interface and 1000cd/m² brightness
Key Specifications
| Part No: | ESHX043PIFHD001-01A |
| display Mode | 4.3 inch TFT display |
| outline size(mm) | 106.34 × 66.01 mm |
| AA size(mm) | 100.8 × 56.7 mm (A.A) |
| Display dots | 1920×1080 |
| View Angle | ALL |
| interface | 50 PINS LVDS |
| Brightness | 1000C/D |
| working temp | -20~70 |
| storage temp | -30~80 |

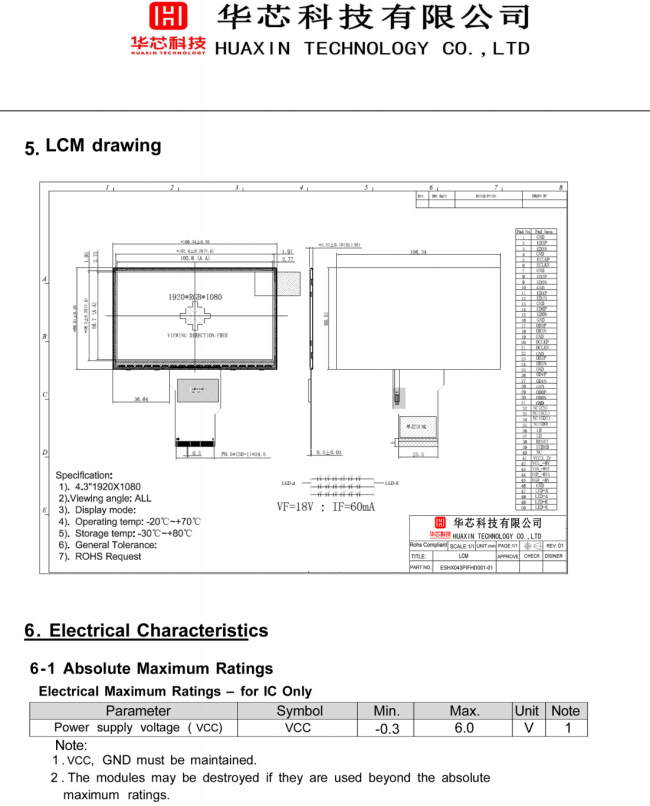

Technical Drawing
TFT Product Knowledge
TFT Substrate Input and CF Substrate Input Flow Chart
TFT Structure
Our advantage
- Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs.
- Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)
-
Certifications: ISO14001, ISO9001/IATF16949, SGS
-
Cost-effective production base located in inland city
•Advanced equipment ensuring stable quality
• Highly automated processes for efficiency and consistency
• Experienced engineering team with 20+ years in LCD field
•Custom product design capabilities
Product Applications
- Car navigation & printer
- Video call & advertising
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control and home appliance
