3.6 Inch Round TFT Display 544x506 30PINS LVDS Interface Driving IC ST72566 200cd/M2
Price:
$17.3
MOQ:
1000
Delivery Time:
4~6weeks
Brand:
HuaXin
Product Description
ESHX036BWV8644ANT is 3.6 Inch Round TFT Display 544x506 30PINS LVDS Interface Driving IC ST72566, 200cd/M2 brigtness,applied for automative and brightness can be adjusted
Key Specifications
| Part NO. | ESHX036BWV8644ANT |
| Display Type | 3.6 inch TFT display module |
| Resolution | 544x506 |
| Panel Size(mm) | 91.81x95.46x2.3 |
| Active Area (mm) | 83.49*89.76 |
| View direction | ALL |
| interface | lvds |
| Driving IC | ST72566 |
| brightness | 200c/d |

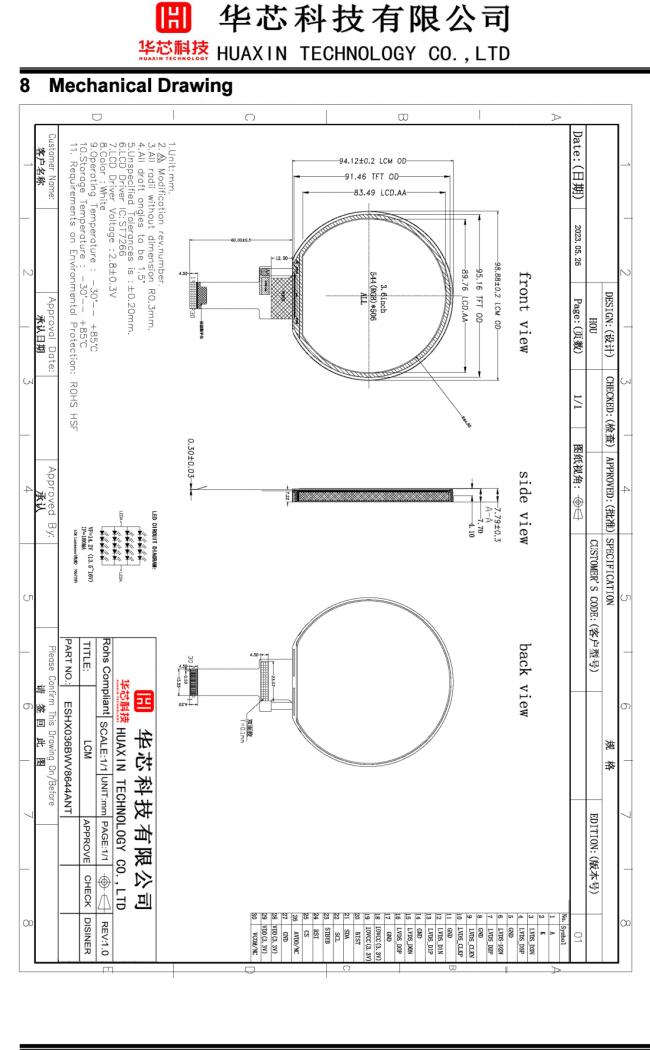

Technical Drawing
TFT Product Knowledge
TFT Substrate Input and CF Substrate Input Flow Chart
TFT Structure
Our advantage
- Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs.
- Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)
-
Certifications: ISO14001, ISO9001/IATF16949, SGS
-
Cost-effective production base located in inland city
•Advanced equipment ensuring stable quality
• Highly automated processes for efficiency and consistency
• Experienced engineering team with 20+ years in LCD field
•Custom product design capabilities
Product Applications
- Car navigation & printer
- Video call & advertising
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control and home appliance
