0.5 Inch Micro OLED Display 1600x1200 Resolution MIPI Interface 1000C/D Micro OLED Module

This 0.5 inch diagonal micro OLED display features 1600(RGB) × 1200 resolution with MIPI interface. Based on single crystal silicon transistors, this active-matrix color OLED panel module integrates both panel driver and logic driver, offering small size, light weight, low power consumption and high resolution. Ideal for view finders, head mounted displays, and other compact display applications.

Product Specifications

Part NO.	ESHX050WGM01
Display Technology	micro AMOLED
Diagonal Screen Size	0.5 inch
Resolution	1600(H) x 1200
Viewing Angle	All
Operation Temperature	-20 ~ +70 ℃
Active Area (mm)	10.08mm x 7.56mm
Panel size(mm)	13.92x13.69
Brightness(cd/m2)	1000cd/m2
Interface	MIPI (1port D-PHY)
Pin q'ty	31pcs
Pixel Size	6.3μm x 6.3μm
Frame Rate	60Hz~120Hz

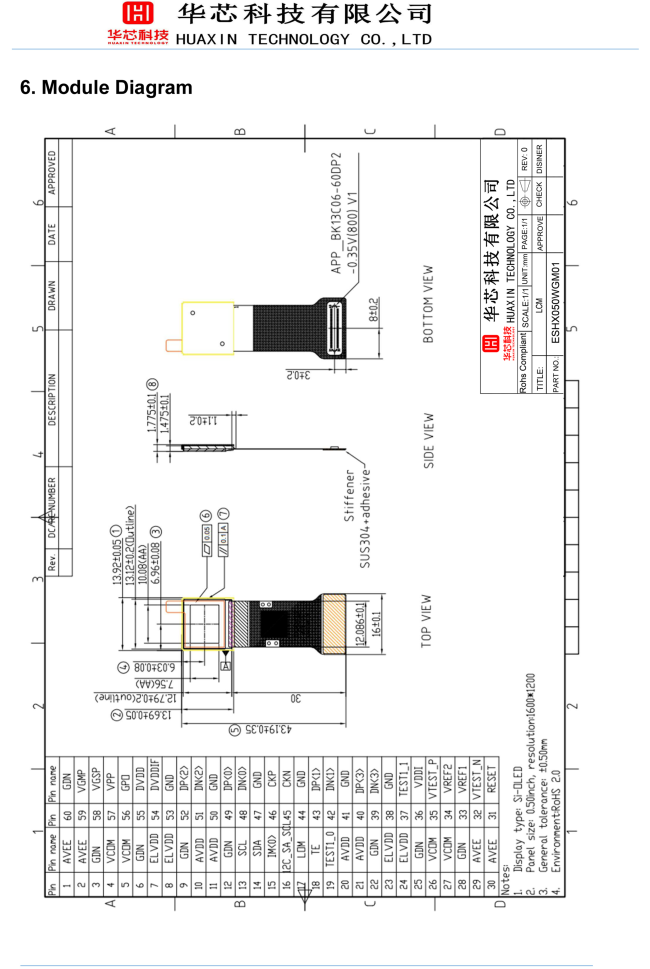

Technical Drawing

Micro OLED Technology Features

Micro OLED Technology

• Ultra-High Pixel Density (PPI)
• Thin, Lightweight, and Compact
• Superior Image Quality
• Lower Power Consumption
• Wide Operating Temperature Range
• High Brightness & Efficiency (with advanced designs)
• Manufacturing & Scalability Benefits

• High production costs & limited supply
• Limited brightness (compared to Micro LED)
• Limited view angles
• Shorter lifespan (compared to Micro LED)
• Limited application scope (small display only)
• Motion Blur & Persistence issues (in VR)
• Competition from Micro LED technology

• Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)
• Certifications: ISO14001, ISO9001/IATF16949, SGS
• Cost-effective production base located in inland city
• Advanced equipment ensuring stable quality
• Highly automated processes for efficiency and consistency
• Experienced engineering team with 20+ years in LCD field
• Custom product design capabilities

• VR/AR/MR headsets
• Military / aerospace systems
• Medical devices and microdisplays
• Camera & electronic viewfinders
• Automotive displays
• Wearable & smart glasses
