3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d
Price:
$10.8
MOQ:
1000
Delivery Time:
4~6weeks
Brand:
HuaXin
Product Description
3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d
Technical Parameters
| part No: | ESHX035FHD05 | |
| Size 尺寸 | 3.5 | inches |
| Resolution 分辨率 | 1920*1080 | pixels |
| Active Area 显示区域 | 77.76*43.74 | mm |
| Outline dimension 外观尺寸 | 87.1*56.8*2.7 | mm |
| Pixel pitch 点距 | TBD | mm |
| Color Depth 颜色 | 16.7 M colors | |
| Display Mode 显示模式 | Normally black Transmissive | |
| Surface treatment 表面处理 | TBD | |
| Interface 接口 | LVDS 50PIN | |
| View Angle 可视角度 | 80/80/80/80 | |
| Brightness 亮度 | 900 | Nits |
| Contrast ratio 对比度 | 1000 | |
| Response time 响应时间 | 40 | ms |
| Operating temperature 工作温度 | -20 ... +70 | °C |
| Storage temperature 储存温度 | -30 ... +80 | °C |

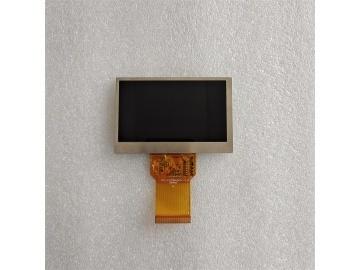

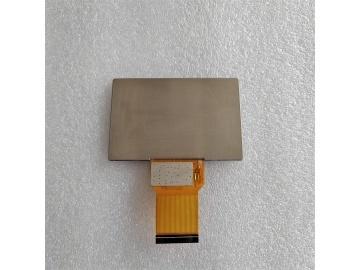

Product Images

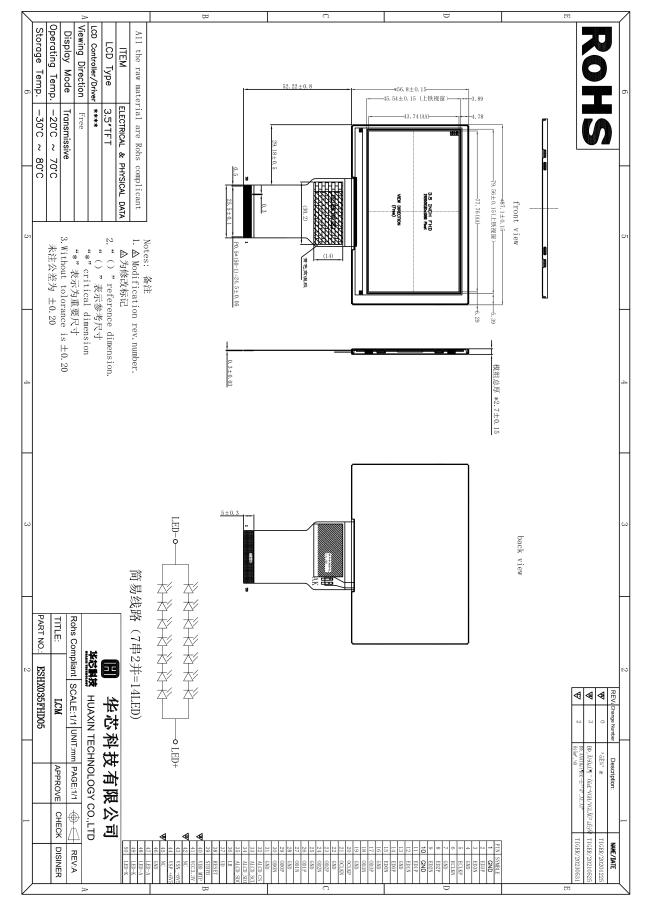

Technical Drawing
TFT Technology Overview
Manufacturer Advantages
- Cost-effective inland factory location
- Advanced equipment ensuring stable quality
- Automated processes for maximum efficiency
- 20+ years of LCD industry experience
- Custom design capabilities available
Certifications
- ISO14001 Environmental Management
- ISO9001/IATF16949 Quality Management
- SGS certified LCD modules
TFT Display Characteristics
- High resolution with excellent color accuracy
- Fast response times for smooth visuals
- Wide viewing angles for flexible positioning
- Energy efficient LED backlight system
- Available in versatile size options
Common Applications
- Automotive: navigation systems, dash displays
- Medical devices and diagnostic equipment
- Industrial control systems and HMI
- Consumer electronics and home appliances
- Digital signage and information displays
Technical Considerations
- Viewing angle limitations in some models
- Contrast ratio constraints compared to newer technologies
- Backlight power requirements
- Potential motion blur in fast-moving content
- Fixed panel structure with limited customization
