3.6-Inch Round LCD Display Module | 544×506 Resolution, 900cd/m² High Brightness for Industrial Gauges & Equipment Dashboards
Price:
$3-$5
MOQ:
1000
Delivery Time:
4~6weeks
Brand:
HuaXin
Product Description
3.6-Inch Round LCD Display Module
High-brightness (900cd/m²) 544*506 resolution TFT module designed for industrial gauges, equipment dashboards, and smart wearables.
Key Specifications
| Display Technology | TFT module |
|---|---|
| Display Size | 3.6 inch |
| Resolution | 544 * 506 |
| Interface | RGB |
| Brightness | 900 cd/m² |
| View Angle | All |
| Part No. | ESHX3601-320240TBBIG01-RF |
| Working Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |

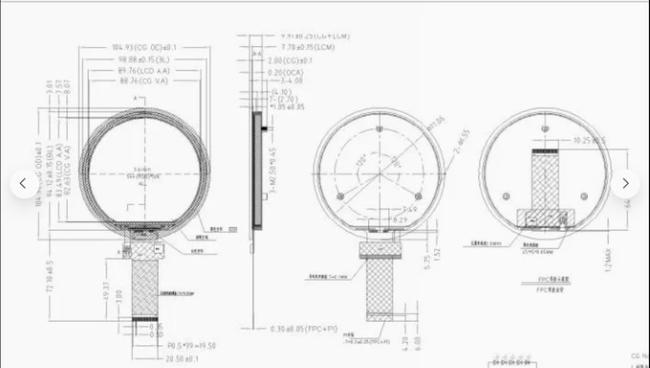

Technical Drawing
-
TFT Product KnowledgeTFT Substrate Input and CF Substrate Input Flow Chart
![TFT substrate input flow chart]()
TFT Structure![TFT structure diagram]()
Our advantage- Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs.
- Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)
-
Certifications: ISO14001, ISO9001/IATF16949, SGS
-
Cost-effective production base located in inland city
•Advanced equipment ensuring stable quality
• Highly automated processes for efficiency and consistency
• Experienced engineering team with 20+ years in LCD field
•Custom product design capabilities
Product Applications- Car navigation & printer
- Video call & advertising
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control and home appliance
![]()
