4.0-Inch LCD tft Display | 640x1280 Resolution ,Source IC ST7703-G5-DP ,Pixel arrangement RGB Vertical stripe ,Active area 145.31x90.88
Price:
$3-10
MOQ:
1000
Delivery Time:
4~6weeks
Brand:
HuaXin
Product Description
4-Inch TFT LCD Display
Our 6.4-inch TFT LCD display features 640x1280 resolution and is equipped with ST7703-G5-DP source IC for stable performance. Adopting RGB vertical stripe pixel arrangement, it delivers vivid, uniform color reproduction. With a precise active area of 145.31(H)x90.88(V) mm, this display is easy to integrate into industrial control panels, medical monitors, and embedded systems.
Compact design, reliable quality—ideal for your specialized device needs.
Key Specifications:
| Part No. | HXLCM040HD |
|---|---|
| Display Technology | TFT module |
| Display Size | 4 inch |
| Resolution | 640x1280 |
| Driving IC | ST7703-G5-DP |
| View Angle | 85/85/85/85 (U/D/L/R) |
| Active area | 45.31x90.88 |
| Panel size(mm) | 47.73x97.55x1.93 |
| Touch Screen | Optional |
| Working Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |

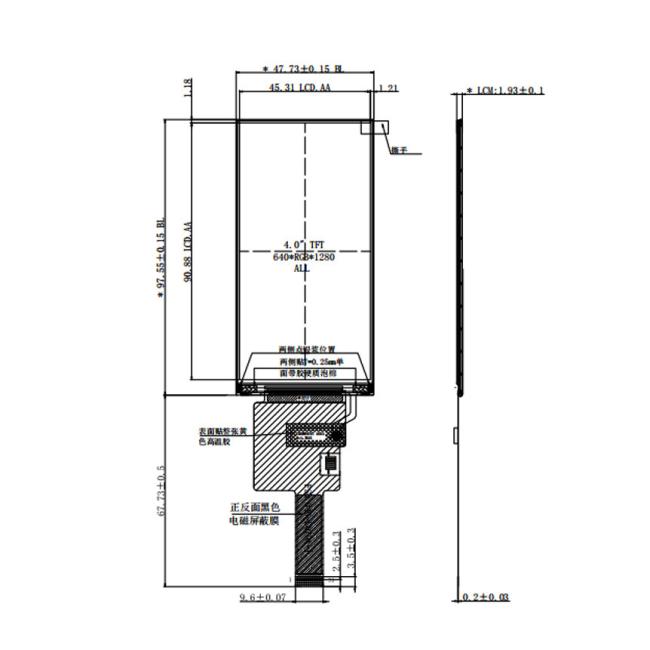

Technical Drawing:
-
![]()
TFT Product KnowledgeTFT Substrate Input and CF Substrate Input Flow Chart![TFT substrate input flow chart]()
TFT Structure![TFT structure diagram]()
Our advantage- Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs.
- Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)
-
Certifications: ISO14001, ISO9001/IATF16949, SGS
-
Cost-effective production base located in inland city
•Advanced equipment ensuring stable quality
• Highly automated processes for efficiency and consistency
• Experienced engineering team with 20+ years in LCD field
•Custom product design capabilities
Product Applications- Car navigation & printer
- Video call & advertising
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control and home appliance
![]()
