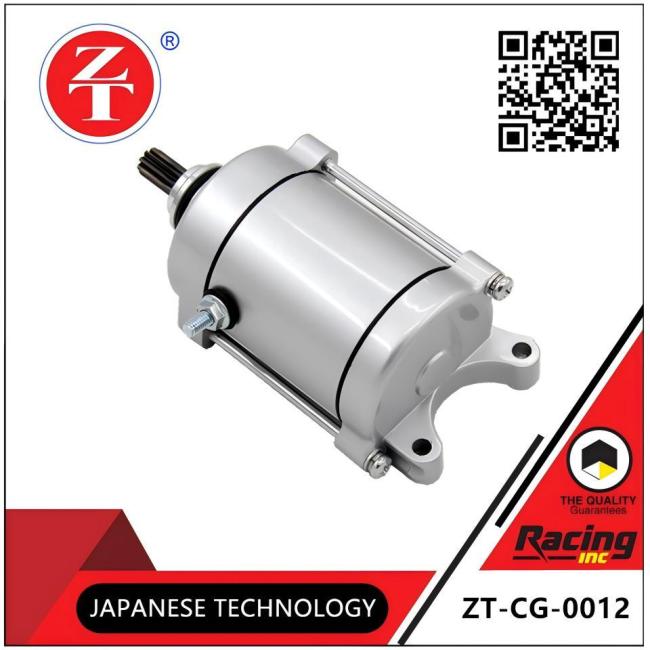

CG125 starter motor 12V 0.8KW suitable for Honda CG125, Zhuhai ZJ125, Xingfu XF125 125cc motorcycle starter motor

The CG125 motor (starter motor) is the core component of the engine starting system. It drives the rotor to rotate via 12V DC power and drives the engine crankshaft through a reduction gear to achieve cold or hot engine starting. It is compatible with the Honda CG125 and Zhuhai ZJ125, Xingfu XF125, and other 125cc four-stroke overbone motorcycles on the same platform, ensuring smooth and durable starting. Before installation: Confirm the motor model (power/reduction ratio) is consistent with the original vehicle and check the engagement gap between the drive gear and flywheel ring (about 0.3–0.5mm); During installation: Secure with bolts (torque 15–20 N·m), connect the power wire (red) and ground wire (black/green), ensuring secure wiring (the power wire should include a 50A fuse in series); Routine maintenance: Regularly check brush wear (every 10000 km) and replace promptly if severely worn; Avoid long continuous pressing during start-up (single press ≤5 seconds to prevent coil overheating); In winter low temperatures, preheat the battery first (e.g., idle charging for 5 minutes) before starting the motor to reduce starting resistance.
