Touch-sensitive Intelligent Dashboard for Forklifts with AI Fault Warning and Remote Equipment Diagnosis

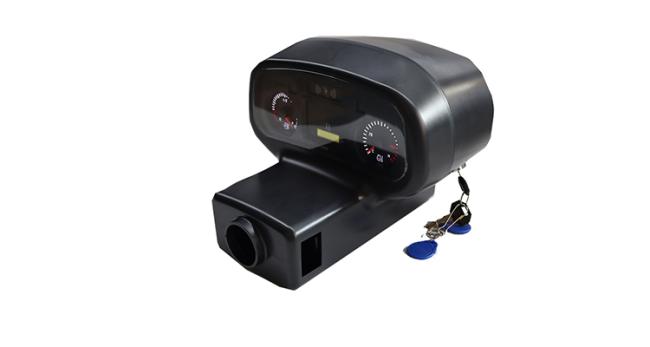

HZB909RCAN-SLJ Customized engineering equipment dashboard, modular hardware structure, rapid matching of various vehicle solutions
The custom engineering equipment dashboard is equipped with a modular hardware structure, which enables quick matching of various vehicle solutions. The entire dashboard display adopts a split modular design, allowing for the replacement of accessories without the need to replace the entire dashboard display. Different requirements for construction machinery can be adapted by simply adjusting the corresponding functional modules, significantly shortening the development cycle of the dashboard display. Standardized universal interfaces enable the dashboard display to be connected to excavators, loaders, mining machines, and other equipment, and quickly adjust the parameters of the dashboard display.
The modular hardware reduces the customization cost of the dashboard display. The basic frame can be equipped with multiple functional modules, reducing the mold cost of the dashboard display. Customers can select communication, high-brightness, and monitoring modules as needed to create an exclusive dashboard display. The sturdy protective shell fully encloses the dashboard display, and dust and vibration from the construction site will not damage the internal components of the dashboard display.
High-definition display panels ensure clear and intuitive data on the dashboard display. Multiple equipment signals are simultaneously transmitted to the dashboard display, and the operating status is displayed on the dashboard display in real time. The simple disassembly and assembly structure makes it convenient for later maintenance of the dashboard display. Replacing the faulty module alone can repair the dashboard display. The advantages of flexible adaptation and efficient development make this dashboard display the preferred choice for various engineering vehicle components.
Technical Parameters of Forklift Dashboard HZB909RCAN-SLJ:
|
Operating Voltage |
DC12V/ DC24V |
|
Operating Temperature |
-20°C to 60°C |
|
Protection Level |
IP54 |
|
Connector Model |
DJY7161-2.2-20 16pin |
|
Install Way |
Steering Column Installation |
|
Display Language |
Chinese / English |
Core Advantages of Forklift Dashboard HZB909RCAN-SLJ:
1. Wide Voltage Compatibility: support DC12V/24V dual system, the working voltage covers DC10-32V, easy to cope with voltage fluctuations.
2. Full Environmental Adaptation: Stable operation under extreme temperatures of -30℃~80℃, reliable in both cold and heat.
3. Multi-dimensional Monitoring: integrated oil/water temperature/timing 3-in-1 display, 14 kinds of LED status indication (including charging, oil pressure, etc.), instant warning of hidden faults.
4. Ultra-low Power Consumption: dynamic operating current ≤ 700mA, standby power consumption of only 2mA, worry-free range.
5. Strong Protection: IP55 dustproof and waterproof, excellent performance in vibration and humidity environment.
Question & Answer of Forklift Dashboard HZB909RCAN-SLJ:
Q: What is the function and application of forklift dashboard HZB909RCAN-SLJ?
A: HZB909RCAN-SLJ is a high-performance all-digital forklift dashboard, specially designed for various industrial and engineering vehicles. It adopts an open system platform, supporting rich vehicle parameter display and input, and integrates powerful vehicle networking functions, including video surveillance, biometric login, BSD blind spot monitoring, etc. The product features excellent vibration resistance and a high protection level, making it an ideal intelligent interactive terminal for modern heavy machinery vehicles.
Q:What quality standards and certifications does our forklift dashboard HZB909RCAN-SLJ comply with?
A: We can support certifications such as CE and UL for different export regions. Additionally, our products undergo a series of tests including waterproof testing, high-temperature resistance testing, aging testing, and salt spray testing. This ensures a 95% pass rate for quality testing and a 100% pass rate for product delivery.
Q: What range of services does Shinny offer to support clients?
A: Shinny delivers professional customized services, we provide design, sample test, and manufacture tailored products according to client requirements. We also provide integrated system solutions alongside products, offering one-stop services to efficiently advance the intelligent and electrified transformation of industrial development.
Q: How Shinny provide after-sale services of forklift dashboard HZB909RCAN-SLJ?
A: We have a dedicated team of after-sales engineers and an overseas marketing team, offering 24/7 online support,comprehensive product manuals and repair guides, which promise that we always provide attentive and reliable after-sales service.
Q: What are the standard shipping and logistics processes for delivering orders?
A: We strictly adhere to packaging standards to ensure product safety during transit. Partnering with international couriers such as UPS and FedEx, we guarantee timely delivery.
