GFJ-H Multi-Purpuse Kettle Series Used In The Production Of High-Viscosity Coatings
Product Description

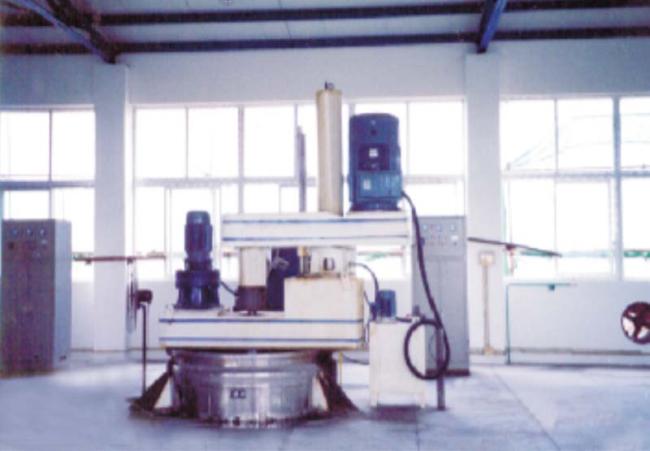

GFJ-H Multi-purpuse Kettle Series
It is mainly used in the production of various thick coatings and high-viscosity coatings (including: elastic coatings, textured coatings, base materials, etc.)
Structural features
There is no resonance phenomenon when the double-shaft concentric type is stirred. High-speed dispersion and slow mixing are integrated. The high-speed shaft can be raised and lowered, while the slow-speed shaft can scrape walls. The stirring system can deaerate under negative pressure vacuum
Main technical specifications and parameters
| Technical/Specification | GFJ-H-2 | GFJ-H-3 | GFJ-H-5 | GFJ-H-10 |
| Model/Power(kw) | 22/4 | 45/5.5 | 75/7.5 | 110/11 |
| Volume of tank(L) | 2000 | 3000 | 5000 | 10000 |
| Lifting stroke(mm) | 600 | 800 | 800 | 1000 |
| Overal dimension(Length * Width * Height mm) | 1600*2100*3500 | 1800*2300*3800 | 2000*2500*4200 | 2500*2800*5600 |
| Weight of equipment(kg) | 2300 | 2900 | 3500 | 5600 |
Note: Please specify your usage requirements when placing an order. We can design and manufacture according to your requirements.
