24 Way 2A Electric Slip Ring 39.6mm Length One Piece Injection Molding Small Size
Price:
＄19-199
MOQ:
1
Delivery Time:
3 weeks ARO
Brand:
GUREN
Product Description
24-way 2A OD 22mm Small Power Electric Slip Ring One-Piece Injection Molding Small Size
Product Attributes
| Attribute | Value |
|---|---|
| Length | 39.6mm |
| Operating Temperature | -20℃ to 80℃ |
| Contact Material | Gold-Gold |
| Number Of Circuits | 24 |
| Brush wire | Au-Ni alloy plating |
| Contact point hardness | HV 150~200 |
Product Description
The WX22-24PS small conductive ring has passed multiple electrical tests, supports 2A current for each of the 24 channels, has built-in V0-level flame-retardant AWG26# Teflon wire, and has a short-circuit protection mechanism. It is suitable for safety-first scenarios such as medical equipment and laboratory instruments.
Product Features
- 360° rotation to prevent winding: cap-type slip ring completely solves the problem of wire/signal line winding when the equipment rotates, ensuring continuous rotation and stable transmission.
- Precision one-piece molding: injection molding process, precise size: diameter 22mm × length 39.6mm.
- Imported PBT engineering plastics: wear-resistant and pressure-resistant, high temperature resistant to 120℃, corrosion-resistant, and anti-aging.
- Gold-plated cluster brush technology: multi-contact gold-plated brush wire, stronger conductivity, better signal transmission.
- Teflon wire AWG26# wire: strong corrosion resistance, safe insulation, and extended life.
- International certification: passed CE and ROHS certification.
Performance Parameters
| Parameter Name | Parameter Value |
|---|---|
| Dielectric strength | 300VCA@50Hz,60s |
| Insulation resistance | ≥500MΩ/300VDC |
| Dynamic resistance change value | ＜10mΩ |
| Rated voltage | 0～240VDC/VAC |
| Wire Specifications | 26AWG Teflon wire |
| Wire length | Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications) |
| Operating temperature | -20℃～+80℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP51 |
| Shell material | Engineering Plastics |
| Rotational torque | 0.05N.m,+0.01N.m/6-way |
| Service life | 2 million rpm |

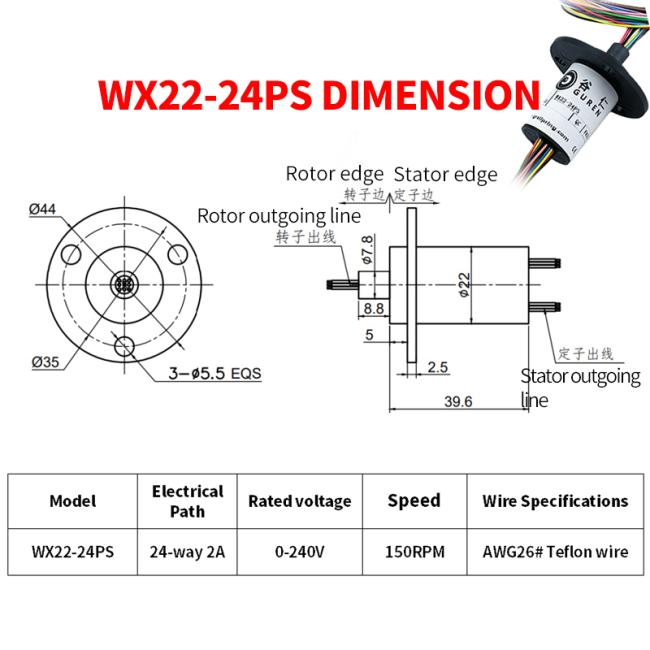

Product Dimensions

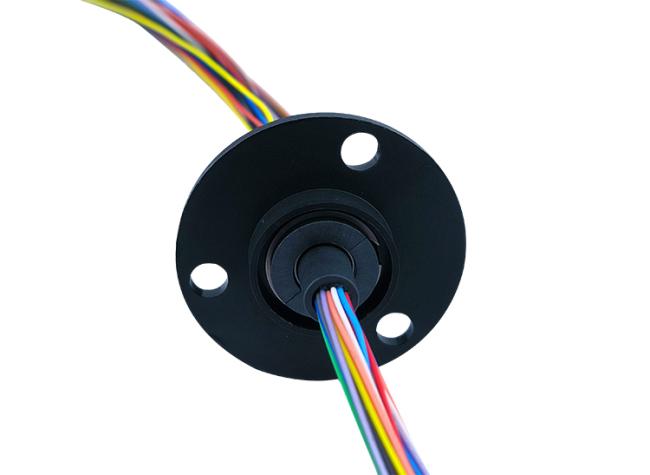

Product Images
Applications
WX22-24PS small conductive ring is widely used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
